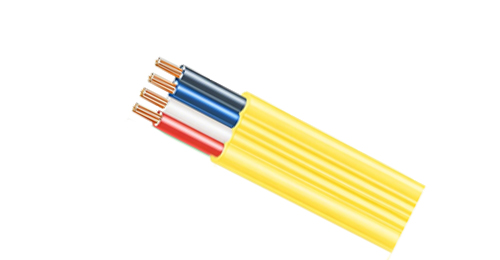

This 450/750V PVC-insulated (flame-retardant option available) 4-core flat cable strictly complies with AS/NZS 5000.2 standards, making it an ideal solution for general electrical wiring in domestic, commercial, and industrial applications. It delivers reliable performance whether installed as open wiring, in conduits, via direct burial, or within underground ducts. Particularly suited for fixed installations where mechanical impact is not a major concern.
AS/NZS 5000.2
AS 1125
AS 3808

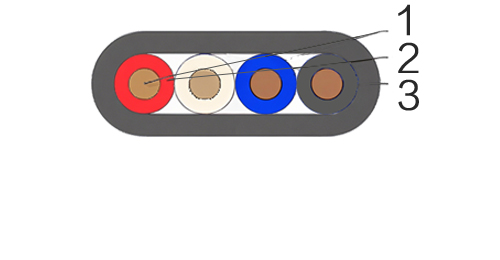

| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | 4C cable: Red, White, Blue, Black |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am |
| 1 | 14 | 7 | 17 | 18.1 | 27.0 | 0.119 | 46.8 |
| 1.5 | 17 | 9 | 21 | 13.6 | 17.3 | 0.111 | 30.0 |
| 2.5 | 25 | 13 | 29 | 7.41 | 9.45 | 0.102 | 16.4 |
| 4 | 33 | 17 | 37 | 4.61 | 5.88 | 0.102 | 10.2 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 11.1x4.1 | 11.8x4.4 | 95 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 12.6x4.5 | 13.3x4.8 | 120 |
| 2.5 | 7/0.67 | 0.7 | 1 | 15.6x5.4 | 16.4x5.7 | 190 |
| 4 | 7/0.85 | 0.8 | 1.1 | 18.8x6.4 | 19.7x6.7 | 290 |
