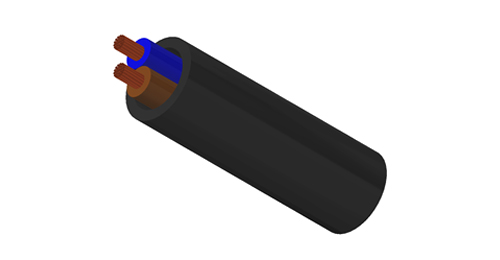

The V75 PVC Flexible Lightweight Cord is designed for indoor wiring and electrical connections in dry environments. Its softness gives it excellent flexibility , making it the ideal cable for connecting low-wattage portable devices requiring high mobility, such as radios, electric shavers, and table lamps .
Simultaneously, this product is widely used for office equipment , hair dryers (especially common as cords on older or specific models), and other household appliances , as well as appliances requiring grounding protection . For double-insulated appliances , the V75 PVC Flexible Lightweight Cord is also a reliable choice, particularly where the cord is not subject to mechanical stress .
If you're looking for a cost-effective, versatile general-purpose appliance connection cord or small appliance power cord , the V75 PVC Flexible Lightweight Cord is your perfect fit .
AS/NZS 3191
AS/NZS 1125

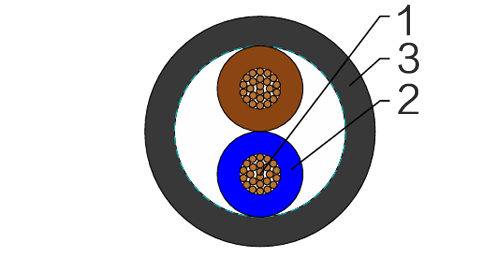

| Conductor | Annealed copper conductor to AS/NZS 1125 |
| Maximum operating temperature: 75°C | |
| Insulation | V-75 PVC |
| Colours | 2C Brown, Light Blue |
| 3C Brown, Light Blue, Green/Yellow | |
| Sheath | 4V-75 PVC |
| Colours | Grey, White, Black, Orange |
| Conductor Size | Current Carrying Capacity | Max. DC Resistance | Max. AC Resistance | Single Phase Voltage Drop |
|---|---|---|---|---|
| mm^2 | A | Ohm/km @ 20 °C | Ohm/km @ 90 °C | MV/A.m |
| 0.5 | 3 | 39.0 | 47.4 | 94.7 |
| 0.75 | 7.5 | 26.0 | 31.6 | 63.2 |
| 1.0 | 10 | 19.5 | 23.7 | 47.5 |
| 1.5 | 16 | 13.3 | 16.2 | 32.3 |
| 2.5 | 20 | 7.98 | 9.70 | 19.4 |
| 4.0 | 25 | 4.95 | 6.02 | 12.0 |
| Conductor Size | No.of cores | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | kg/100m | |
| Round | |||||
| 0.5 | 2 | 0.5 | 0.6 | 5.2 | 3.7 |
| 0.5 | 3 | 0.5 | 0.6 | 5.5 | 4.2 |
| 0.75 | 2 | 0.5 | 0.6 | 5.6 | 4.5 |
| 0.75 | 3 | 0.5 | 0.6 | 5.9 | 5.4 |
| Parallel Webbed, Flat, Unsheathed | |||||
| 0.5 | 2 | 0.8 | - | 5.2×2.6 | 2.2 |
| 0.75 | 2 | 0.8 | - | 5.6×2.8 | 2.7 |
