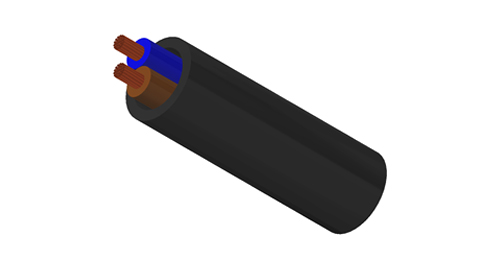

V90 PVC Heavy-Duty Flexible Cable addresses the challenges in industrial/commercial wiring. Specifically designed for scenarios with high requirements for flexibility and durability in industrial and commercial environments, it is especially suitable for the following needs: industrial/commercial power distribution wiring, precision wiring within equipment, durable extension cord scenarios, power supply for 0.6/1kV three-phase equipment, mixed power supply and grounding requirements, and double insulation protection in harsh environments.
AS/NZS 5000.1
AS/NZS 3191
AS/NZS 1125

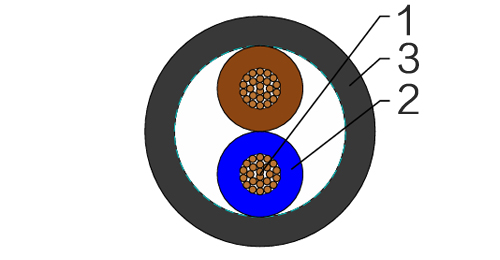

| Conductor | Annealed copper conductor to AS/NZS 1125 |
| Maximum continuous operating temperature: 90°C | |
| Insulation | V-90 PVC |
| Colours | |
| To AS/NZS 3191 (≤4 mm2) | 1C - Red, White, Light Blue, Black |
| 2C - Brown, Light Blue | |
| 3C - Brown, Light Blue, Green/Yellow | |
| 4C - Brown, Light Blue, White, Green/Yellow | |
| 5C - Brown, Light Blue, Orange, White, Green/Yellow | |
| To AS/NZS 5000.1 (≥6 mm2) | 3C - Red, Black, Green/Yellow |
| 4C - Red, White, Black, Green/Yellow | |
| 5C - Red, White, Blue, Black, Green/Yellow | |
| Sheath | 5V-90 PVC |
| Colours | Black, Orange |
| Conductor Size | Current Carrying Capacity | Max. DC Resistance | Max. AC Resistance | Single Phase Voltage Drop |
|---|---|---|---|---|
| mm^2 | A | Ohm/km @ 20 °C | Ohm/km @ 90 °C | MV/A.m |
| 0.5 | 3 | 39.0 | 49.7 | 99.4 |
| 0.75 | 7.5 | 26.0 | 33.2 | 66.3 |
| 1.0 | 10 | 19.5 | 24.9 | 49.8 |
| 1.5 | 16 | 13.3 | 17 | 34 |
| 2.5 | 20 | 7.98 | 10.2 | 20.3 |
| 4.0 | 25 | 4.95 | 6.31 | 12.6 |
| Conductor Size | No.of cores | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | kg/100m | |
| Round without sheath | |||||
| 0.5 | 1 | 0.8 | - | 2.6 | 1.1 |
| 0.75 | 1 | 0.8 | - | 2.8 | 1.4 |
| 1.0 | 1 | 0.8 | - | 2.9 | 1.6 |
| 1.5 | 1 | 0.8 | - | 3.2 | 2.1 |
| 2.5 | 1 | 0.9 | - | 3.9 | 3.3 |
| 4 | 1 | 1.0 | - | 4.7 | 5.5 |
| Round | |||||
| 0.75 | 1 | 0.8 | 1.3 | 5.4 | 3.8 |
| 1.0 | 1 | 0.8 | 1.3 | 5.6 | 4.2 |
| 1.5 | 1 | 0.8 | 1.4 | 6.1 | 5.2 |
| 2.5 | 1 | 0.9 | 1.4 | 6.8 | 6.9 |
| 4 | 1 | 1.0 | 1.5 | 7.7 | 9.4 |
| 0.75 | 2 | 0.8 | 1.3 | 8.2 | 8.4 |
| 1.0 | 2 | 0.8 | 1.3 | 8.6 | 9.3 |
| 1.5 | 2 | 0.8 | 1.5 | 9.5 | 12 |
| 2.5 | 2 | 0.9 | 1.7 | 11.2 | 17 |
| 4 | 2 | 1.0 | 1.8 | 13 | 25 |
| Round with ground conductor | |||||
| 0.75 | 3 | 0.8 | 1.4 | 8.8 | 10 |
| 1.0 | 3 | 0.8 | 1.4 | 9.2 | 11 |
| 1.5 | 3 | 0.8 | 1.6 | 10.2 | 15 |
| 2.5 | 3 | 0.9 | 1.8 | 12.1 | 21 |
| 4 | 3 | 1.0 | 1.9 | 13.9 | 30 |
| 6 | 3 | 1.0 | 2.9 | 16.0 | 44 |
| 10 | 3 | 1.0 | 3.1 | 20.5 | 69 |
| 16 | 3 | 1.0 | 3.3 | 24.1 | 90 |
| 25 | 3 | 1.2 | 3.7 | 29.4 | 140 |
| 35 | 3 | 1.2 | 4.0 | 32.5 | 181 |
| 50 | 3 | 1.4 | 4.4 | 37.7 | 241 |
| 0.75 | 4 | 0.8 | 1.5 | 9.8 | 12 |
| 1.0 | 4 | 0.8 | 1.5 | 10.2 | 14 |
| 1.5 | 4 | 0.8 | 1.7 | 11.3 | 18 |
| 2.5 | 4 | 0.9 | 1.9 | 13.3 | 26 |
| 4 | 4 | 1.0 | 2.0 | 15.4 | 38 |
| 6 | 4 | 1.0 | 3.0 | 17.6 | 54 |
| 10 | 4 | 1.0 | 3.3 | 22.6 | 85 |
| 16 | 4 | 1.0 | 3.5 | 26.1 | 122 |
| 25 | 4 | 1.2 | 3.9 | 32.0 | 191 |
| 35 | 4 | 1.2 | 4.2 | 35.3 | 246 |
| 50 | 4 | 1.4 | 4.7 | 41.2 | 332 |
| 70 | 4 | 1.4 | 5.1 | 48.3 | 460 |
| 95 | 4 | 1.6 | 5.7 | 53.3 | 577 |
| 120 | 4 | 1.6 | 6.1 | 60.0 | 731 |
| 0.75 | 5 | 0.8 | 1.6 | 10.8 | 15 |
| 1.0 | 5 | 0.8 | 1.6 | 11.2 | 17 |
| 1.5 | 5 | 0.8 | 1.8 | 12.4 | 21 |
| 2.5 | 5 | 0.9 | 2.0 | 14.6 | 30 |
| 4 | 5 | 1.0 | 2.2 | 17.1 | 46 |
