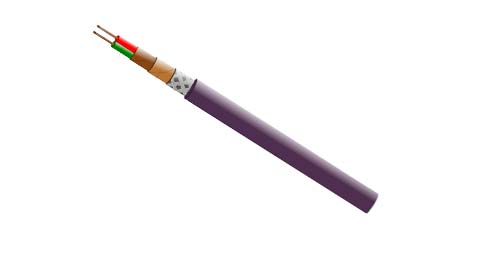

Profibus DP cables are designed for field networks requiring fast, cyclic data exchange between controllers and field devices. This cable is usually reffered as siemens profibus. This Profibus modification optimized with respect to velocity and low installation cost, Profibus DP is used as a replacement for conventional parallel data transmission with 24 V or 0 - 20 mA.

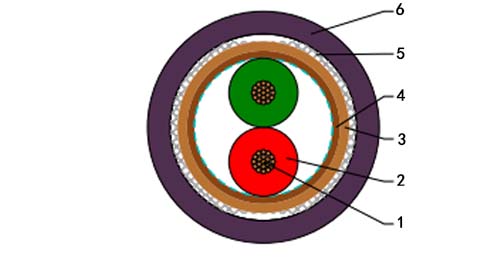

| Type | 1 pair static cables |
| Cable Construction | 1x2x0.64mm |
| Inner Conductor | Plain copper |
| Inner Conductor Diameter | 0.64mm (22AWG) |
| Conductor Insulation | Foamed PE with a hard skin |
| Conductor Colors | Red & green |
| Stranding Element | - |
| Wrapping | Synthetic bedding |
| Shielding 1 | Aluminium foil |
| Shielding 2 | Tinned copper wire braid – 60% optical coverage |
| Outer Jacket Material | PUR thermoplastic or thermosetting/ PVC/ PE/ LSHF |
| Outer Jacket Color | Violet/ Black |
Type/Area of Application: Drag Chain Applications
Cable Construction: 1x2x0.25 mm (stranded)
Inner Conductor Diameter: Copper, bare (AWG 24/19)
Conductor Insulation: Foam-skin-PE
Conductor Colors: Red, green
Stranding Element: 2 conductors + 2 fillers stranded together
Shielding: Polyester foil, aluminum lined
Total Shielding: Cu braid, tinned
Outer Jacket Material: PUR
Outer Diameter: 8.0 mm ± 0.4 mm
Outer Jacket Color: Violet
| Characteristic Impedance @ 3-20MHz | 150 Ω ± 10 Ω | |
| Conductor Resistance | 57.1 Ohm/km max. | |
| Test Voltage | 1.5KV | |
| Operate Voltage | Max: 350V | |
| Effective capacitance @ 1khz | 28.5nF/km | |
| 9.6 Kbit/s | 1200m | |
| 19.2 Kbit/s | 1200m | |
| 93.75 Kbit/s | 1200m | |
| Data Rate | 187.5 Kbit/s | 1000m |
| 500 Kbit/s | 400m | |
| 1.5 Mbit/s | 200m | |
| 12.0 Mbit/s | 100m | |
| 9.6KHz | 2.5dB/km | |
| Attenuation | 4MHz | 22dB/km |
| 16MHz | 42dB/km | |
| Type | 1 pair dynamic cables |
| Cable Construction | 1x2x0.25mm^2 |
| Inner Conductor: | Plain copper, 0.25mm^2 |
| Conductor Insulation | Foamed PE with a hard skin |
| Conductor Colors | Red & green |
| Stranding Element | Cores laid up with fillers |
| Core Wrapping | Polyester taped |
| Shielding 1 | Aluminium foil |
| Shielding 2 | Tinned copper wire braid – 60% optical coverage |
| Drain Wire | - |
| Outer Jacket Material | Polyurethane (PUR) sheath |
| Outer Jacket Color | Violet/ Black |
| Characteristic Impedance @ 3-20MHz | 150 Ω ± 10 Ω | |
| Conductor Resistance | 84.0 Ohm/km max. | |
| Test Voltage | 1.5KV | |
| Working Voltage | Max: 350V | |
| Effective capacitance @ 1khz | 28.5nF/km | |
| Data Rate | 9.6 Kbit/s | 1200m |
| 19.2 Kbit/s | 1200m | |
| 93.75 Kbit/s | 1200m | |
| 187.5 Kbit/s | 1000m | |
| 500 Kbit/s | 400m | |
| 1.5 Mbit/s | 200m | |
| 12.0 Mbit/s | 100m | |
| 9.6KHz | 3dB/km | |
| Attenuation | 4MHz | 25dB/km |
| 16MHz | 53dB/km | |
| Static | Dynamic | |
| Min. Bending Radius (Laying) | 12 x OD mm | 12 x OD mm |
| Operating Temp.Range, min. | -30 °C | -5 °C |
| Operating Temp.Range, max. | +70 °C | +70 °C |
