APPLICATION AND DESCRIPTION
The Profibus-ET200X and Profibus ECOFAST lines used in the area of process automation. These BUS systems are a very economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The series hybrid are characterized by a special construction with data and power supply in one cable. These types are suited for the application in drag chains and similar mobile applications.

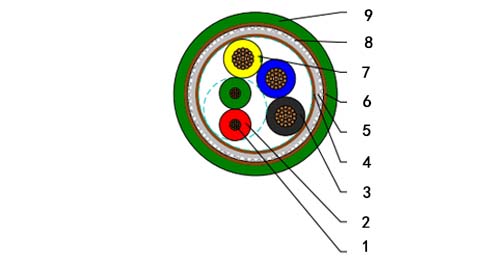

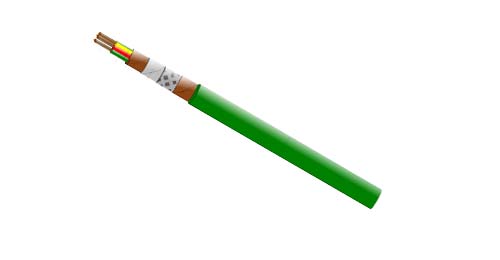

CONSTRUCTION
| Type/Area of Application | Drag Chain Applications | Mobile Use |
| Cable Construction | 1x2x0.65 mm + 3x1x0.75 mm2 (stranded) | 1x2x0.65 mm + 4x1x1.5 mm2(stranded) |
| Inner Conductor Diameter 1 | Copper, bare (AWG 22/19) | Copper, bare (AWG 24/19) |
| Inner Conductor Diameter 2 | Copper, bare (AWG 18/24) | Copper, bare (AWG 18/84) |
| Conductor Insulation 1 | Foam-skin-PE | Foam-skin-PE |
| Conductor Insulation 2 | PVC | TPM |
| Conductor Colors 1 | red, green | red, green |
| Conductor Colors 2 | black, blue, green-yellow | back, back, back, back |
| Stranding Element | Double Conductor | 2 conductors + 2 fillers stranded together |
| Wrapping | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Shielding | Foil + Braid | Foil + Braid |
| Overall wrapping | Polyester foil | - |
| Outer Jacket Material | PUR | TPU |
| Outer Diameter | 9.5 mm ± 0.5 mm | 11.0 mm ± 0.3 mm |
| Outer Jacket Color | Green | Violet |
ELECTRICAL DATA
| Characteristic Impedance@3-20MHz | 150 Ω ± 10 Ω | 150 Ω ± 10 Ω |
| Conductor Resistance | 84.0 Ohm/km max. | 89.9 Ohm/km max. |
| Insulation Resistance | 1.00 GOhm x km min. | 1.00 GOhm x km min. |
| Mutual Capacitance@1KHz | 30.0 nF/km nom. | 30.0 nF/km nom. |
| Working Voltage | Max: 250 V |
|
| Test Voltage | 1.5 kV | 1.5 kV |
| Attenuation | 9.6 | kHz | < | 3.0 | dB/km | 9.6 | kHz | < | 3.0 | dB/km |
| 38.4 | kHz | < | 5.0 | dB/km | 38.4 | kHz | < | 5.0 | dB/km |
| 4.0 | MHz | < | 25.0 | dB/km | 4.0 | MHz | < | 30.0 | dB/km |
| 16.0 | MHz | < | 52.0 | dB/km | 16.0 | MHz | < | 60.0 | dB/km |
TECHNICAL DATA
| Weight | approximately 105.0kg/km | approximately 159.0kg/km |
| Min. Bending Radius (Laying) | 14 x OD mm | 15 x OD mm |
| Operating Temp.Range, min. | - 5 °C | -20 °C |
| Operating Temp.Range, max. | +60 °C | +60 °C |
