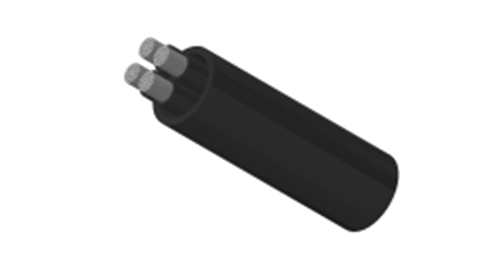

The BRAIL TW-05M-SW 300/500V thin-walled multi-core cable, featuring advanced manufacturing processes and a thin-walled design, not only saves space but also significantly reduces weight, perfectly meeting the compact space and lightweight requirements of rail transit vehicles. This cable is widely used in signal transmission, control circuits, and power distribution systems, providing reliable assurance for the stable operation of rail vehicles.
The BRAIL TW-05M-SW 300/500V thin-walled multi-core cable, featuring advanced manufacturing processes and a thin-walled design, not only saves space but also significantly reduces weight, perfectly meeting the compact space and lightweight requirements of rail transit vehicles. This cable is widely used in signal transmission, control circuits, and power distribution systems, providing reliable assurance for the stable operation of rail vehicles.

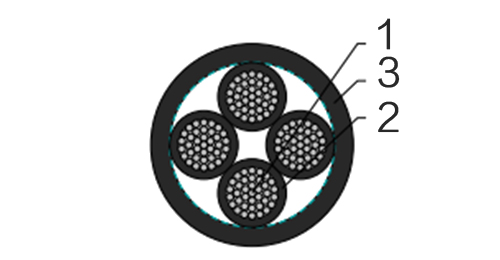

| Conductor | Tinned annealed copper wires as defined in EN 50306-2 |
| Insulation | LSZH special compound |
| Sheath | LSZH special compound (S2. EM101- EM104) |
| Nominal Voltage | 300/500 V |
| Max. Conductor Temperature | 90°C /105°C (fixed installation) |
| Min. Permissible Ambient Temperature | -25°C/-40°C (fixed installation) |
| Bending Radius | Fixed installation: 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm) Flexible installation: 5 x Overall Diameter (D<12mm); 6 x Overall Diameter (D>12mm) |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Number of Cores x Nominal Cross Section | Min. Thickness of Sheath at any Point | Overall Diameter | Weight | |
|---|---|---|---|---|
| Min. | Max. | |||
| n x mm² | mm | mm | mm | kg/km |
| 4 x 0.5 | 0.42 | 4.1 | 5.1 | 30 |
| 7 x 0.5 | 0.42 | 4.9 | 5.9 | 50 |
| 13 x 0.5 | 0.56 | 7.3 | 8.3 | 100 |
| 19 x 0.5 | 0.56 | 8.1 | 9.1 | 140 |
| 37 x 0.5 | 0.56 | 10.8 | 12.0 | 250 |
| 4 x 0.75 | 0.42 | 4.6 | 5.6 | 40 |
| 7 x 0.75 | 0.42 | 5.5 | 6.5 | 70 |
| 13 x 0.75 | 0.56 | 8.2 | 9.2 | 130 |
| 19 x 0.75 | 0.56 | 9.0 | 10.2 | 180 |
| 37 x 0.75 | 0.56 | 12.2 | 13.4 | 340 |
| 48 x 0.75 | 0.56 | 13.9 | 15.5 | 440 |
| 4 x 1.0 | 0.42 | 4.9 | 5.9 | 50 |
| 7 x 1.0 | 0.42 | 6.0 | 7.0 | 90 |
| 13 x 1.0 | 0.56 | 8.7 | 9.9 | 160 |
| 19 x 1.0 | 0.56 | 9.8 | 11.0 | 230 |
| 37 x 1.0 | 0.56 | 13.3 | 14.5 | 430 |
| 4 x 1.5 | 0.42 | 6.0 | 7.0 | 80 |
| 7 x 1.5 | 0.56 | 7.7 | 9.8 | 140 |
| 13 x 1.5 | 0.56 | 10.7 | 11.9 | 250 |
| 19 x 1.5 | 0.56 | 12.0 | 13.2 | 350 |
| 37 x 1.5 | 0.56 | 16.2 | 17.8 | 650 |
| 2 x 2.5 | 0.56 | 6.7 | 7.7 | 70 |
| 3 x 2.5 | 0.56 | 7.7 | 8.1 | 110 |
| 4 x 2.5 | 0.56 | 7.9 | 8.9 | 140 |
