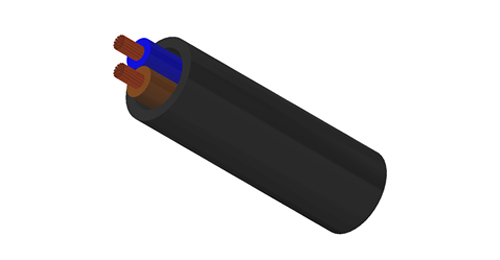

The H05GG-F cable strictly complies with the French NF C 32-102-11 standard and is specifically designed for industrial and domestic applications. With core advantages of high flexibility, wide temperature tolerance, safety, and environmental friendliness, it is suitable for equipment connection requirements that have strict demands on cable temperature resistance (-15℃ to +110℃), flexibility, and flame retardancy. It is an ideal choice for kitchen appliances, office equipment, industrial tools, and special environments (low/high temperature).
STANDARD AND APPROVAL
HD 22.11 S1,CEI 20-19/11, NFC 32-102-11
Technical Characteristics

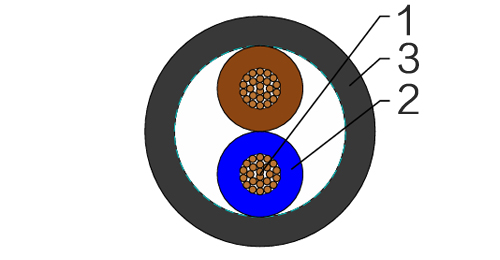

| Fine tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Cl-5 |
| Cross-linked elastomere EI3 insulation |
| Color code VDE-0293-308 |
| Cross-linked elastomere EM 9 outer jacket - black |
| Working voltage | 300/500V |
| Test voltage | 2000V |
| Flexing bending radius | 4×O |
| Static bending radius | 3×O |
| Temperature range | -15°C to +110°C |
| Short circuit temperature | 200°C |
| Flame retardant | IEC 60332 -1 |
| Halogen-free | IEC 60754-1 |
| Low smoke | IEC 60754-2 |
| Smoke density | IEC 61034 |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/Km | |
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.3 | 53 |
| 17(32/32) | 2x1 | 0.6 | 0.9 | 6.8 | 64 |
| 16(30/30) | 2x1.5 | 0.8 | 1 | 8.3 | 95 |
| 14(50/30) | 2x2.5 | 0.9 | 1.1 | 9.8 | 140 |
| 18(24/32) | 3x0.75 | 0.6 | 0.9 | 6.8 | 65 |
| 17(32/32) | 3x1 | 0.6 | 0.9 | 7.2 | 77 |
| 16(30/30) | 3x1.5 | 0.8 | 1 | 8.8 | 115 |
| 14(50/30) | 3x2.5 | 0.9 | 1.1 | 10.4 | 170 |
| 12(56/28) | 3 x 4 | 1 | 1.2 | 12.2 | 240 |
| 10(84/28) | 3 x 6 | 1 | 1.4 | 13.6 | 320 |
| 18(24/32) | 4x0.75 | 0.6 | 0.9 | 7.4 | 80 |
| 17(32/32) | 4x1 | 0.6 | 0.9 | 7.8 | 95 |
| 16(30/30) | 4x1.5 | 0.8 | 1.1 | 9.8 | 145 |
| 14(50/30) | 4x2.5 | 0.9 | 1.2 | 11.5 | 210 |
| 12(56/28) | 4 x 4 | 1 | 1.3 | 13.5 | 300 |
| 10(84/28) | 4 x 6 | 1 | 1.5 | 15.4 | 405 |
| 18(24/32) | 5x0.75 | 0.6 | 1 | 8.3 | 100 |
| 17(32/32) | 5x1 | 0.6 | 1 | 8.7 | 115 |
| 16(30/30) | 5x1.5 | 0.8 | 1.1 | 10.7 | 170 |
| 14(50/30) | 5x2.5 | 0.9 | 1.3 | 12.8 | 255 |
