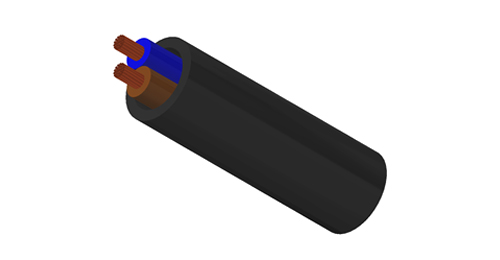

H07RN8-F cable is particularly suitable for freshwater environments (depth not exceeding 10 meters, maximum water temperature not exceeding 40°C), such as connecting submersible pumps or similar applications; and it is the only cable permitted for installation in swimming pools and fountains as per Installation Standard CEI 64-8, Section 702.
CEI 20-19 p.16, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

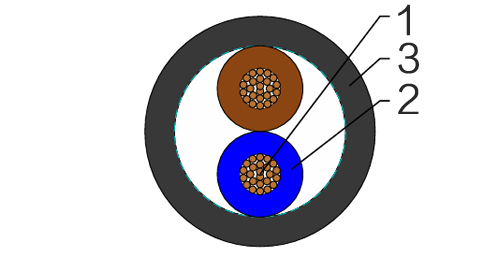

Technical Characteristics
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Rubber core insulation EI4 to VDE-0282 Part-1 |
| Color code VDE-0293-308 and HD 186 |
| Polychloroprene rubber (neoprene) jacket EM2 |
| Working voltage | 450/750 volts |
| Test voltage | 2500 volts |
| Flexing bending radius | 6.0 x O |
| Fixed bending radius | 4.0 x O |
| Flexing Temperature | -25oC to +60oC |
| Fixed Temperature | -40oC to +60oC |
| Max Water Temperature | +40 oC |
| Short circuit temperature | +250 oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm(min-max) | kg/km | kg/km | |
| 17(32/32) | 2 x 1 | 0.8 | 1.3 | 7.7-10 | 19 | 89 |
| 17(32/32) | 3 x 1 | 0.8 | 1.4 | 8.3-10.7 | 29 | 111 |
| 17(32/32) | 4 x 1 | 0.8 | 1.5 | 9.2-11.9 | 38 | 146 |
| 16(30/30) | 1 x 1.5 | 0.8 | 1.4 | 5.7-7.1 | 14.4 | 59 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.5 | 8.5-11.0 | 29 | 135 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 9.2-11.9 | 43 | 165 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 10.2-13.1 | 58 | 200 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 11.2-14.4 | 72 | 240 |
| 16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.5-17.5 | 101 | 385 |
| 16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 17.6-22.4 | 173 | 516 |
| 16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 20.7-26.3 | 274 | 800 |
| 16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 24.3-30.7 | 346 | 882 |
| 14(50/30) | 1 x 2.5 | 0.9 | 1.4 | 6.3-7.9 | 24 | 72 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.7 | 10.2-13.1 | 48 | 195 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 10.9-14.0 | 72 | 235 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.1-15.5 | 96 | 290 |
| 14(50/30) | 5 x 2.5 | 0.9 | 2 | 13.3-17.0 | 120 | 345 |
| 14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 16.5-20.0 | 168 | 520 |
| 14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 20.6-26.2 | 288 | 810 |
| 14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 25.5-31.0 | 456 | 1200 |
| 14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 28.8-36.4 | 576 | 1650 |
| 12(56/28) | 1 x 4 | 1 | 1.5 | 7.2-9.0 | 38 | 99 |
| 12(56/28) | 2 x 4 | 1 | 1.8 | 11.8-15.1 | 77 | 270 |
| 12(56/28) | 3 x 4 | 1 | 1.9 | 12.7-16.2 | 115 | 320 |
| 12(56/28) | 4 x 4 | 1 | 2 | 14.0-17.9 | 154 | 395 |
| 12(56/28) | 5 x 4 | 1 | 2.2 | 15.6-19.9 | 192 | 485 |
| 12(56/28) | 7 x 4 | 1 | 3.1 | 18.2-21.8 | 269 | 681 |
| 10(84/28) | 1 x 6 | 1 | 1.6 | 7.9-9.8 | 58 | 130 |
| 10(84/28) | 3 x 6 | 1 | 2.1 | 14.1-18.0 | 173 | 495 |
| 10(84/28) | 4 x 6 | 1 | 2.3 | 15.7-20.0 | 230 | 610 |
| 10(84/28) | 5 x 6 | 1.2 | 3.6 | 17.5-22.2 | 288 | 760 |
| 8(80/26) | 1 x 10 | 1.2 | 1.8 | 9.5-11.9 | 96 | 230 |
| 8(80/26) | 3 x 10 | 1.2 | 3.3 | 19.1-24.2 | 288 | 880 |
| 8(80/26) | 4 x 10 | 1.2 | 3.4 | 20.9-26.5 | 384 | 1060 |
| 8(80/26) | 5 x 10 | 1.2 | 3.6 | 22.9-29.1 | 480 | 1300 |
| 6(128/26) | 1 x 16 | 1.2 | 1.9 | 10.8-13.4 | 154 | 320 |
| 6(128/26) | 3 x 16 | 1.2 | 3.5 | 21.8-27.6 | 461 | 1090 |
| 6(128/26) | 4 x 16 | 1.2 | 3.6 | 23.8-30.1 | 614 | 1345 |
| 6(128/26) | 5 x 16 | 1.2 | 3.9 | 26.4-33.3 | 768 | 1680 |
| 4(200/26) | 1 x25 | 1.4 | 2 | 12.7-15.8 | 240 | 450 |
| 4(200/26) | 4 x 25 | 1.4 | 4.1 | 28.9-36.6 | 960 | 1995 |
| 4(200/26) | 5 x 25 | 1.4 | 4.4 | 32.0-40.4 | 1200 | 2470 |
| 2 (280/26) | 1 x 35 | 1.4 | 2.2 | 14.3-17.9 | 336 | 605 |
| 2 (280/26) | 3 x 35 | 1.4 | 4.1 | 29.3-37.1 | 1008 | 1900 |
| 2 (280/26) | 4 x 35 | 1.4 | 4.4 | 32.5-41.1 | 1344 | 2645 |
| 2 (280/26) | 5 x 35 | 1.4 | 4.7 | 37.0-45.0 | 1680 | 2810 |
| 1(400/26) | 1 x 50 | 1.6 | 2.4 | 16.5-20.6 | 480 | 825 |
| 1(400/26) | 4 x 50 | 1.6 | 4.8 | 37.7-47.5 | 1920 | 3635 |
| 1(400/26) | 5 x 50 | 1.6 | 5.1 | 40.0-50.8 | 2400 | 4050 |
| 2/0(356/24) | 1 x 70 | 1.6 | 2.6 | 18.6-23.3 | 672 | 1090 |
| 2/0(356/24) | 4 x 70 | 1.6 | 5.2 | 42.7-54.0 | 2688 | 4830 |
| 3/0(485/24) | 1 x 95 | 1.8 | 2.8 | 20.8-26.0 | 912 | 1405 |
| 3/0(485/24) | 4 x 95 | 1.8 | 5.9 | 48.4-61.0 | 3648 | 6320 |
| 4/0(614/24) | 1x 120 | 1.8 | 3 | 22.8-28.6 | 1152 | 1746 |
| 4/0(614/24) | 4 x 120 | 1.8 | 6 | 53.0-66.0 | 4608 | 6830 |
| 300 MCM (765/24) | 1 x 150 | 2 | 3.2 | 25.2-31.4 | 1440 | 1887 |
| 300 MCM (765/24) | 4 x 150 | 2 | 6.4 | 58.0-73.0 | 5760 | 8320 |
| 350 MCM (944/24) | 1 x 185 | 2.2 | 3.4 | 27.6-34.4 | 1776 | 2274 |
| 350 MCM (944/24) | 4 x 185 | 2.2 | 6.8 | 64.0-80.0 | 7104 | 9800 |
| 500 MCM (1221/24) | 1x 240 | 2.4 | 3.5 | 30.6-38.3 | 23.4 | 2956 |
| 500 MCM (1221/24) | 4x 240 | 2.4 | 7.2 | 72.0-90.0 | 9216 | 12100 |
| - | 1 x 300 | 2.6 | 3.6 | 33.5-41.9 | 2880 | 3479 |
