ICEA S-75-381Type G Two-Conductor Flat Portable Power Cable 2kV

APPLICATIONThis is specifically designed for DC mining equipment, suitable for mining shuttles, drill jumbos, coal cutters, loaders, and other related scenarios. The cable features a flat design, making it easy to install and ensuring stable performan…

Previous: ICEA S-75-381Type W Five-Conductor Round Portable Power Cable 2kV Next: ICEA S-75-381Type G Two-Conductor Round Portable Power Cable 2kV

APPLICATION

This is specifically designed for DC mining equipment, suitable for mining shuttles, drill jumbos, coal cutters, loaders, and other related scenarios. The cable features a flat design, making it easy to install and ensuring stable performance, providing a reliable power transmission solution for mining equipment.

STANDARDS

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

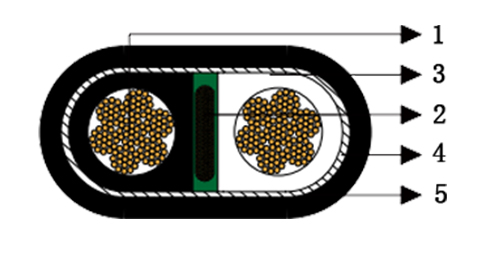

CONSTRUCTION

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Grounding Conductor	Tinned copper conductor with an optional green outer covering.
Reinforcement	Synthetic yarn.
Jacket	Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

OPTIONS

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

MECHANICAL AND THERMAL PROPERTIES

Minimum Bending Radius	6×OD
Maximum Conductor Operating Temperature	+90℃

DIMENSIONS AND WEIGHT

Construction	No. of Strands	Grounding Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
2×6	133	8	0.06	1.5	0.080	2.0	0.56×1.02	14.2×25.9	500	744	95
2×4	259	7	0.06	1.5	0.095	2.4	0.61×1.15	15.5×29.2	635	945	127
2×3	259	6	0.06	1.5	0.095	2.4	0.68×1.26	17.3×32.0	785	1170	145
2×2	259	5	0.06	1.5	0.095	2.4	0.73×1.35	18.5×34.3	935	1390	167
2×1	259	4	0.08	2.0	0.110	2.8	0.81×1.55	20.6×39.4	1185	1760	191
2×1/0	259	3	0.08	2.0	0.125	3.2	0.93×1.67	23.6×42.4	1470	2190	217
2×2/0	329	2	0.08	2.0	0.125	3.2	0.99×1.85	25.1×47.0	1790	2660	250
2×3/0	413	1	0.08	2.0	0.140	3.6	1.03×2.00	26.2×50.8	2145	3190	286
2×4/0	532	1/0	0.08	2.0	0.140	3.6	1.10×2.10	27.9×53.3	2545	3790	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
