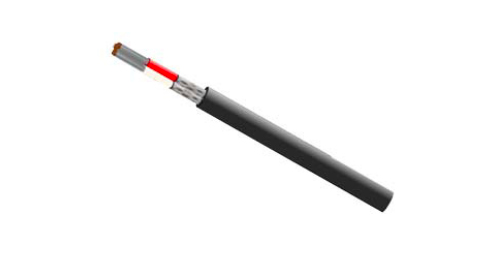

Type SHD-GC Portable Tri-Core Round Power Cable , featuring a robust TPU jacket and a high voltage rating of 2kV, is specifically designed for heavy-duty mobile equipment operating under demanding conditions, delivering reliable and safe power transmission. Its exceptional abrasion resistance, weather resistance, and impact resistance make it the ideal choice for:
Powering core mining equipment ;
Providing power assurance in open-pit mines ;
Serving as a critical power source for tunnel engineering ;
Connecting industrial heavy-duty mobile equipment ;
Acting as a high-performance power feeder requiring superior reliability.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

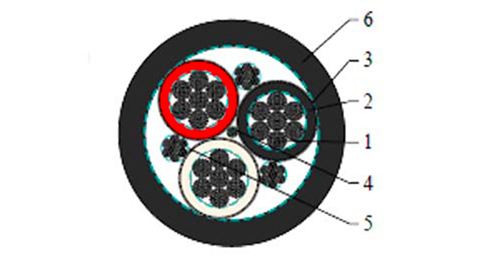

| Conductors | Stranded annealed tinned copper conductor. |
|---|---|
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper conductor with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Thermoplastic Polyurethane (TPU) Jacket, black. |
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
| Minimum Bending Radius | 6×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores × AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×6 | 133 | 10 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.29 | 32.8 | 1069 | 1590 | 93 |
| 3×4 | 259 | 8 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.40 | 35.6 | 1295 | 1927 | 122 |
| 3×2 | 259 | 6 | 10 | 0.07 | 1.8 | 0.170 | 4.3 | 1.59 | 40.4 | 1778 | 2645 | 159 |
| 3×1 | 259 | 5 | 8 | 0.08 | 2.0 | 0.190 | 4.8 | 1.76 | 44.7 | 2163 | 3218 | 184 |
| 3×1/0 | 266 | 4 | 8 | 0.08 | 2.0 | 0.190 | 4.8 | 1.86 | 47.2 | 2508 | 3731 | 211 |
| 3×2/0 | 323 | 3 | 8 | 0.08 | 2.0 | 0.205 | 5.2 | 2.00 | 50.8 | 3001 | 4465 | 243 |
| 3×3/0 | 418 | 2 | 8 | 0.08 | 2.0 | 0.205 | 5.2 | 2.13 | 54.1 | 3470 | 5163 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.08 | 2.0 | 0.220 | 5.6 | 2.31 | 58.7 | 4192 | 6237 | 321 |
| 3×250 | 627 | 1/0 | 6 | 0.095 | 2.4 | 0.220 | 5.6 | 2.51 | 63.8 | 5213 | 7756 | 355 |
| 3×350 | 888 | 2/0 | 6 | 0.095 | 2.4 | 0.235 | 6.0 | 2.81 | 71.4 | 6824 | 10153 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.095 | 2.4 | 0.265 | 6.7 | 3.19 | 81.0 | 9014 | 13411 | 536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
