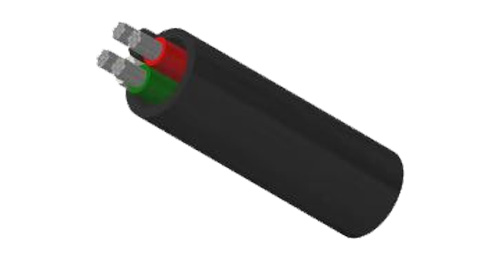

ICEA S-75-381Type W Four-Conductor Round Portable Power Cable 2kV

APPLICATIONSuitable for mobile mining equipment such as mining machines, drills, cutters, loaders, and shuttle cars. No exposed grounding conductors are required.STANDARDSICEA S-75-381/NEMA WC 58ASTM B 172ASTM B 33CAN/CSA C22.2 No. 96CONSTRUCTIONCondu…

Type W Four-Conductor Round Portable Power Cable 2kV.pdf Contact us

Previous: ICEA S-75-381Type W Four-Conductor Flat Portable Power Cable 2kV Next: ICEA S-75-381Type W Five-Conductor Round Portable Power Cable 2kV

APPLICATION

Suitable for mobile mining equipment such as mining machines, drills, cutters, loaders, and shuttle cars. No exposed grounding conductors are required.

STANDARDS

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

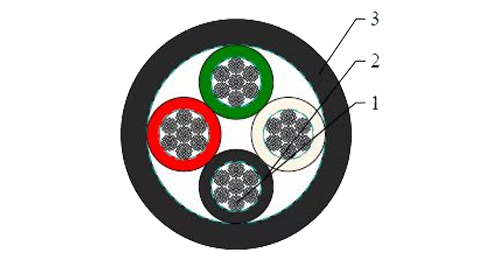

CONSTRUCTION

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Jacket	Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

OPTIONS

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

MECHANICAL AND THERMAL PROPERTIES

Minimum Bending Radius	6×OD
Maximum Conductor Operating Temperature	+90℃

DIMENSIONS AND WEIGHT

Construction	No. of Strands	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
4×8	133	0.06	1.5	0.125	3.2	0.99	25.2	670	997	54
4×6	133	0.06	1.5	0.140	3.6	1.10	27.9	838	1247	72
4×4	259	0.06	1.5	0.155	3.9	1.27	32.3	1174	1747	93
4×3	259	0.06	1.5	0.155	3.9	1.34	34.0	1377	2049	106
4×2	259	0.06	1.5	0.170	4.3	1.48	37.6	1701	2531	122
4×1	259	0.08	2.0	0.190	4.8	1.68	42.7	2192	3262	143
4×1/0	266	0.08	2.0	0.190	4.8	1.79	45.5	2549	3793	165
4×2/0	342	0.08	2.0	0.190	4.8	1.93	49.0	3078	4581	192
4×3/0	418	0.08	2.0	0.205	5.2	2.07	52.6	3685	5485	221
4×4/0	532	0.08	2.0	0.220	5.6	2.26	57.4	4540	6758	255
4×250	627	0.095	2.4	0.235	6.0	2.66	67.6	5746	8553	280
4×350	888	0.095	2.4	0.250	6.4	2.98	75.7	7574	11275	335
4×500	1221	0.095	2.4	0.280	7.1	3.40	86.4	10376	15441	395

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
