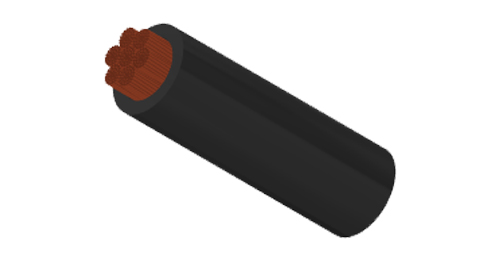

This 600V portable welding machine cable is specifically designed for arc welding systems, serving as a high-quality welding lead to connect the electrode holder to the welding machine, suitable for the welding secondary circuit. Its outstanding flexibility makes it easy to operate in various welding environments, making it an ideal choice for professional welders and industrial users. It is widely used in industries such as shipbuilding, construction engineering, metal fabrication, and automotive repair, meeting the diverse needs of different sectors for efficient and safe welding.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96
UL 1581

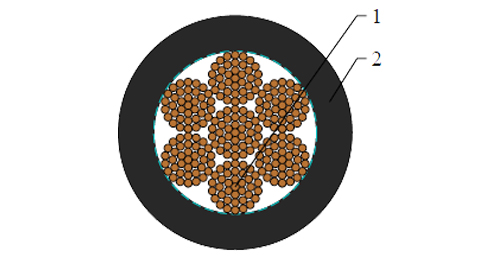

| Conductors | Class K/M stranded annealed copper conductor. |
|---|---|
| Jacket | Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR). |
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
| Minimum Bending Radius | 6×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | |||
|---|---|---|---|---|---|---|---|---|
| No. of cores×AWG/kcmil | - | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 1×6 | 259 | 0.060 | 1.5 | 0.37 | 9.4 | 124 | 184 | 125 |
| 1×4 | 420 | 0.060 | 1.5 | 0.42 | 10.7 | 180 | 268 | 182 |
| 1×2 | 665 | 0.060 | 1.5 | 0.49 | 12.5 | 268 | 399 | 271 |
| 1×1 | 836 | 0.080 | 2.0 | 0.53 | 13.3 | 319 | 475 | 360 |
| 1×1/0 | 1045 | 0.080 | 2.0 | 0.59 | 14.9 | 415 | 617 | 444 |
| 1×2/0 | 1330 | 0.080 | 2.0 | 0.64 | 16.3 | 508 | 756 | 535 |
| 1×3/0 | 1672 | 0.080 | 2.0 | 0.70 | 17.8 | 628 | 934 | 667 |
| 1×4/0 | 2107 | 0.080 | 2.0 | 0.81 | 20.7 | 775 | 1153 | 809 |
| 1×250 | 2499 | 0.095 | 2.4 | 0.88 | 22.4 | 934 | 1390 | 1048 |
| 1×350 | 3458 | 0.095 | 2.4 | 1.01 | 25.6 | 1267 | 1885 | 1396 |
| 1×500 | 5054 | 0.095 | 2.4 | 1.18 | 30.0 | 1801 | 2680 | 1973 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
