APPLICATION
This cable is primarily used for communication systems within rail vehicles such as trains, fixedly installed to connect devices and realize control, monitoring, and diagnostic functions. The system is based on the TCN standard and employs two types of buses, WTB (Train Communication Bus) and MVB (Multifunction Vehicle Bus) , interconnected through redundant gateways to ensure high reliability of the system .

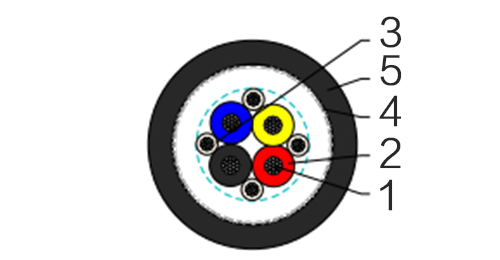

CONSTRUCTION
| Conductor | Stranded tinned copper conductor according to IEC 60228 class 5 |
| Insulation | 0.6mm foam PE/foam skin PE (for 0. 5mmsq conductor ), 0.2mm PE ( for 0.25mmsq conductor) |
| Core Wrapping | Plastic tape(s) |
| EMC Screen | Tinned copper braid |
| Outer Sheath | Cross-linked oil resistant LSZH compound |
ELECTRICAL & MECHANICAL PROPERTIES
| Nominal Voltage | 300V |
| Maximum Temperature | 90°C |
| Minimum Temperature | -40°C |
| Bending Radius | 10 x Overall Diameter |
CHEMICAL & ENVIRONMENTAL PROPERTIE
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
FIRE PERFORMANCE IN GENERAL
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-MVB-02YCH-1Q0.5S+4G0.25
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Max. Conductor Resistance | Impedance | Max. Transfer Impedance | Max. Attenuation |
|---|
| 20°C | @0.75-3MHz | f<=20MHz | @1.5MHz | @3MHz |
|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km | Ω | mΩ/m | dB/km | dB/km |
|---|
| 0.5 | 19/0.18 | 1.2 | 7.9 | 95 | 41 | 120+/-12 | 20 | 17 | 25 |
