600/1000V PVC Insulated, PVC Sheathed, Unarmoured Power Cables (2-5 Cores & Multicore)
APPLICATIONThe cables are mainly use in fixed installations in industrial areas, buildings and similar applications but not for burial in the ground, either directly or in ducts.STANDARDSBasic design adapted to IEC 60502-1FIRE PERFORMANCEFlame Retarda…
600_1000V PVC Insulated, PVC Sheathed, Unarmoured PowerCables (2-5 Cores & Multicore).pdf Contact us
Previous: 600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (2-5 Cores & Multicore)Next: 600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to BS 5467 (2-5 Cores)

APPLICATION

The cables are mainly use in fixed installations in industrial areas, buildings and similar applications but not for burial in the ground, either directly or in ducts.

STANDARDS

Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)IEC 60332-1

VOLTAGE RATING

600/1000V

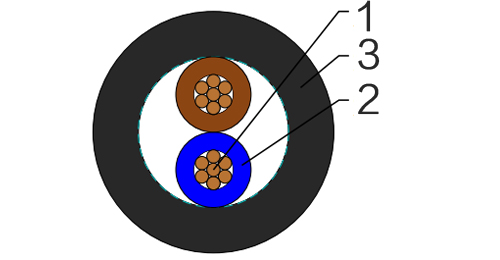

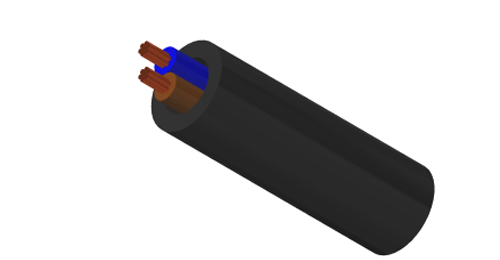

CABLE CONSTRUCTION

ConductorAnnealed copper wire, stranded according to BS EN 60228 class 2.
InsulationPVC/A according to IEC 60502-1.
Inner Covering OptionExtruded PVC or polymeric compound.
Outer SheathExtruded PVC Type ST1/ST2 according to IEC 60502-1.
Outer Sheath OptionUV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation ColourTwo-core: Brown, blue
Three-core: Brown, black, grey. Alternatively, green-and-yellow, blue, brown
Four-core: Blue, brown, black, grey. Alternatively, green-and-yellow, brown, black, grey
Five-core: Green-and-yellow, blue, brown, black, grey
Note: Depending on their intended use, the cables might be subject to the core colour requirements specified
in BS 7671 or other standards, or in statutory requirements.
Sheath ColourBlack, other colours can be offered upon request

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)70°C
Maximum short circuit temperature (5 Seconds)
Conductor cross-section ≤300 mm2160°C
Conductor cross-section >300 mm2140°C

Minimum bending radius 12 x Overall Diameter

CONSTRUCTION PARAMETERS

ConductorFLP600-VV-R
No. of Cores x Cross SectionClass of ConductorNominal Insulation ThicknessNominal
Sheath Thickness		Nominal Overall DiameterApprox. Weight
No.xmm2　mm　mmmmmm
2 Cores
2x1.520.81.89.6120
2x2.520.81.810.4151
2x4.021.01.812.2212
2x6.021.01.813.2266
2x1021.01.814.8370
2x1621.01.816.6510
2x2521.21.819.6740
2x3521.21.821.8986
2x5021.41.825.21355
2x7021.41.928.11798
2x9521.62.032.42419
2x12021.62.135.43003
2x15021.82.239.23696
2x18522.02.443.34536
2x24022.22.548.95849
2x30022.42.754.07223
2x40022.62.961.59566
3 Cores
3x1.520.81.810.1149
3x2.520.81.810.9192
3x4.021.01.812.9277
3x6.021.01.813.9354
3x1021.01.815.7503
3x1621.01.817.6707
3x2521.21.820.81040
3x3521.21.823.21401
3x5021.41.826.91942
3x7021.41.930.12589
3x9521.62.134.73514
3x12021.62.2384372
3x15021.82.342.15390
3x18522.02.546.56615
3x24022.22.752.58576
3x30022.42.85810564
3x40022.63.166.114049
3 Cores+1 Earth Conductor





power conductorearth  conductor


3x 16/1021.01.01.819.0764
3x 25/1621.21.01.822.61137
3x 35/1621.21.01.825.31494
3x 50/2521.41.21.929.62120
3x 70/3521.41.22.033.22862
3x 95/5021.61.42.238.43917
3x120/7021.61.42.342.04973
3x150/7021.41.22.546.65861
3x185/9521.61.42.651.67321
3x240/12021.61.42.958.39433
3x300/15021.81.63.164.511714
3x400/18522.01.63.373.515404
4 Cores
4x1.520.81.810.8180
4x2.520.81.811.8236
4x4.021.01.814346
4x6.021.01.815.2447
4x1021.01.817.1642
4x1621.01.819.3910
4x2521.21.822.91347
4x3521.21.825.61824
4x5021.41.929.92553
4x7021.42.033.53409
4x9521.62.238.74628
4x12021.62.342.35763
4x15021.82.546.97132
4x18522.02.651.98723
4x24022.22.958.611344
4x30022.43.164.814012
4x40022.63.373.818590
Multicore
5x1.520.81.811.7213
7x1.520.81.812.6270
10x1.520.81.815.6371
12x1.520.81.816.1424
14x1.520.81.816.8480
19x1.520.81.818.6619
21x1.520.81.819.5676
24x1.520.81.821.6769
30x1.520.81.822.8927
40x1.520.81.827.71196
48x1.520.81.928.21430
61x1.520.81.930.91773
5x2.520.81.812.8281
7x2.520.81.813.8363
10x2.520.81.817.2503
12x2.520.81.817.7580
14x2.520.81.818.6660
19x2.520.81.820.6860
21x2.520.81.821.6941
24x2.520.81.8241072
30x2.520.81.825.41302
40x2.520.82.031.11720
48x2.520.82.031.72039
61x2.520.82.134.72557

ELECTRICAL PROPERTIES

Conductor Operating Temperature70°C
Ambient Temperature30°C

Current-Carrying Capacities (Amp) according to BS 7671 table 4D2A

Conductor cross- sectional areaReference Method A
(enclosed in conduit in
thermally insulating wall etc)		Reference Method B
(enclosed in conduit on a
wall or in trunking etc)		Reference Method C
(clipped direct)		Reference Method G (in free air)
Spaced by one cable
diameter
1 two-core
cables*,
single-phase
a.c. or
d.c.		1 three-core
cable* or 1
four-core
cable,
three
-phase
a.c.		1 two-core
cables*,
singlephase
a.c. or
d.c.		1 three-core
cable* or 1
four-core
cable,
three
-phase
a.c.		1 two-core
cables*,
single-phase
a.c. or
d.c.		1 three-core
cable* or 1
four-core
cable,
three
-phase
a.c.		1 two-core
cables*,
single-phase
a.c. or
d.c.		1 three-core
cable* or 1
four-core
cable,
three
-phase
a.c.
123456789
mm2AAAAAAAA
1.5141316.51519.517.52218.5
2.518.517.5232027243025
4.02523302736324034
6.03229383446415143
104339524663577060
165752696285769480
257568908011296119101
35928311199138119148126
5011099133118168144180153
70139125168149213184232196
95167150201179258223282238
120192172232206299259328276
150219196258225344299379319
185248223294255392341434364
240291261344297461403514430
300334298394339530464593497
400--470402634557715597

* with or without a protective conductor

Voltage Drop (Per Amp Per Meter) according to BS 7671 table 4D2B

Nominal Cross Section  AreaTwo-core cable d.c.Two-core cable, single-phase a.c.Three- or four-core cable, three-phase a.c.
1234
mm2mV/A/mmV/A/mmV/A/m
1.5292925
2.5181815
4.011119.5
6.07.37.36.4
104.44.43.8
162.82.82.4


rxzrxz
251.751.750.1701.751.500.1451.50
351.251.250.1651.251.100.1451.10
500.930.930.1650.940.800.1400.81
700.630.630.1600.650.550.1400.57
950.460.470.1550.500.410.1350.43
1200.360.380.1550.410.330.1350.35
1500.290.300.1550.340.260.1300.29
1850.230.250.1500.290.210.1300.25
2400.1800.1900.1500.240.1650.1300.21
3000.1450.1550.1450.210.1350.1300.185
4000.1050.1150.1450.1850.1000.1250.160

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
