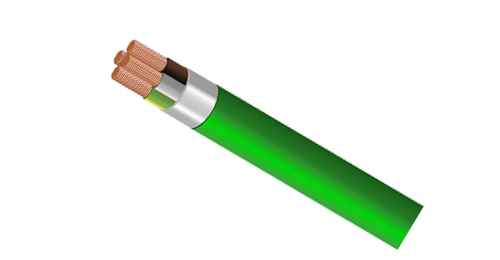

These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
UNE 21123, EN 60332, EN 60332-1, EN 50266, EN 50267-1,
EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 60331
Flexible electrolytic annealed copper conductor. Class 5 in accordance with IEC 60228
XLPE insulation type DIX 3 according to HD603. Color coded to HD 308
3. LOSH polyolephine outer sheath according to UNE 21123
- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 10 x Ø
- Working temperature: -15o C to +90o C - Short circuit temperature: +250o C
- Insulation resistance: 20 MΩ x km
- Halogen free: IEC 60754-1, EN 50267-2-1
- No corrosive gases: IEC 60754-2, EN 50267-2-2 - No toxic gases: NES 02-713, NF X 70-100
- Low smoke density: IEC 61034, EN 50268-2
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
| # x mm² | mm | kg/km | # x mm² | mm | kg/km | ||
| 16(30/30) | 1×1.5 | 5.7 | 45 | 8(80/26) | 3×10/6 | 16.1 | 493 |
| 14(50/30) | 1×2.5 | 6.1 | 57 | 6(128/26) | 3×16/10 | 18 | 724 |
| 12(56/28) | 1×4 | 6.7 | 73 | 4(200/26) | 3×25/16 | 21.8 | 1091 |
| 10(84/28) | 1×6 | 7.2 | 94 | 2 (280/26) | 3×35/16 | 24.1 | 1405 |
| 8(80/26) | 1×10 | 8.1 | 136 | 1(400/26) | 3×50/25 | 28.1 | 1968 |
| 6(128/26) | 1×16 | 9 | 192 | 2/0(356/24) | 3×70/35 | 32.6 | 2722 |
| 4(200/26) | 1×25 | 11 | 286 | 3/0(485/24) | 3×95/50 | 37 | 3598 |
| 2 (280/26) | 1×35 | 12.1 | 380 | 4/0(614/24) | 3×120/70 | 41.5 | 4609 |
| 1(400/26) | 1×50 | 13.8 | 520 | 300 MCM | |||
| (765/24) | 3×150/70 | 44.9 | 5579 | ||||
| 2/0 | |||||||
| (356/24) | 1×70 | 15.9 | 716 | 350 MCM | |||
| (944/24) | 3×185/95 | 51.5 | 6926 | ||||
| 3/0 | |||||||
| (485/24) | 1×95 | 17.6 | 924 | 500MCM | |||
| (1225/24) | 3×240/120 | 58.8 | 9030 | ||||
| 4/0(614/24) | 1×120 | 19.4 | 1167 | 16(30/30) | 4G 1.5 | 9.7 | 136 |
| 300 MCM | |||||||
| (765/24) | 1×150 | 21.5 | 1456 | 14(50/30) | 4G 2.5 | 10.6 | 182 |
| 350 MCM | |||||||
| (944/24) | 1×185 | 24.1 | 1762 | 12(56/28) | 4G 4 | 12 | 252 |
| 500MCM | |||||||
| (1225/24) | 1×240 | 26.9 | 2283 | 10(84/28) | 4G 6 | 13.3 | 336 |
| - | 1×300 | 29.6 | 2832 | 8(80/26) | 4G 10 | 15.4 | 513 |
| - | 1×400 | 33.8 | 3735 | 6(128/26) | 4×16 | 18.7 | 783 |
| - | 1×500 | 38 | 4845 | 4(200/26) | 4×25 | 23.1 | 1196 |
| - | 1×630 | 43.1 | 6311 | 2 (280/26) | 4×35 | 25.5 | 1616 |
| 16(30/30) | 2×1.5 | 8.3 | 97 | 1(400/26) | 4×50 | 30.3 | 2242 |
| 14(50/30) | 2×2.5 | 9.2 | 127 | 2/0(356/24) | 4×70 | 35.3 | 3119 |
| 12(56/28) | 2×4 | 10.1 | 167 | 3/0(485/24) | 4×95 | 39.4 | 4037 |
| 10(84/28) | 2×6 | 11.2 | 219 | 4/0(614/24) | 4×120 | 43.6 | 5104 |
| 8(80/26) | 2×10 | 13 | 323 | 300 MCM | |||
| (765/24) | 4×150 | 49.8 | 6569 | ||||
| 6(128/26) | 2×16 | 15.8 | 490 | 350 MCM | |||
| (944/24) | 4×185 | 56.5 | 8063 | ||||
| 16(30/30) | 3G1.5 | 8.8 | 114 | 500MCM | |||
| (1225/24) | 4×240 | 63.1 | 10421 | ||||
| 14(50/30) | 3G2.5 | 9.8 | 151 | 16(30/30) | 5G 1.5 | 10.3 | 159 |
| 12(56/28) | 3G4 | 11 | 206 | 14(50/30) | 5G 2.5 | 11.6 | 217 |
| 10(84/28) | 3G6 | 12 | 271 | 12(56/28) | 5G 4 | 13 | 302 |
| 8(80/26) | 3G10 | 14.1 | 412 | 10(84/28) | 5G 6 | 14.6 | 406 |
| 6(128/26) | 3×16 | 16.9 | 624 | 8(80/26) | 5G 10 | 16.8 | 625 |
| 4(200/26) | 3×25 | 20.6 | 947 | 6(128/26) | 5G 16 | 20.4 | 956 |
| 2 (280/26) | 3×35 | 23.4 | 1276 | 4(200/26) | 5G 25 | 25.1 | 1459 |
| 1(400/26) | 3×50 | 26.8 | 1752 | 2 (280/26) | 5G 35 | 28.1 | 1968 |
| 2/0(356/24) | 3×70 | 31.5 | 2436 | 1(400/26) | 5G 50 | 33.7 | 2779 |
