APPLICATION
WTB (Wire Train Bus) Cable - The Core Component for Building Reliable Train Communication Networks (TCN)
Our WTB (Wire Train Bus) cable is a core solution engineered to deliver stable communication between critical equipment within modern rail transit vehicles. Serving as the foundational element for constructing international standard-compliant Train Communication Networks (TCN) , it provides highly reliable, real-time data transmission channels for locomotives, EMUs, and other rolling stock. This infrastructure is essential for enabling intelligent train control, safe operation, and efficient maintenance .

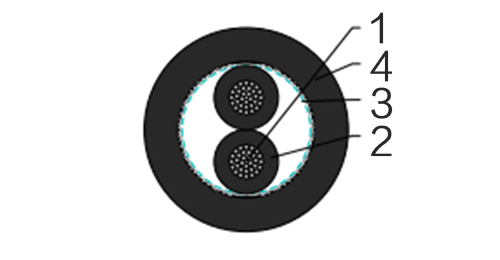

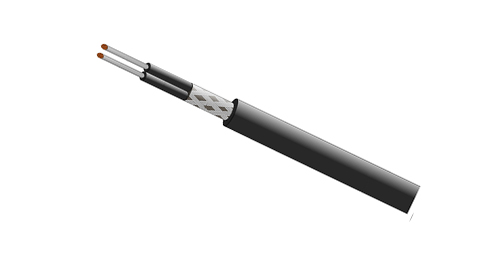

CONSTRUCTION
| Conductor | Stranded tinned copper conductor according to IEC 60228 class 5 |
| Insulation | Foam PE or foam skin PE |
| Core Wrapping | Plastic tape(s) |
| EMC Screen | Tinned copper braid |
| Outer Sheath | Cross-linked oil resistant LSZH compound |
ELECTRICAL & MECHANICAL PROPERTIES
| Nominal Voltage | 300V |
| Maximum Temperature | 90°C |
| Minimum Temperature | -40°C |
| Bending Radius | 12 x Overall Diameter |
CHEMICAL & ENVIRONMENTAL PROPERTIE
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
FIRE PERFORMANCE IN GENERAL
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-WTB-02YCH-2G0.75
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Max. Conductor Resistance | Impedance | Max. Transfer Impedance | Max. Attenuation |
|---|
| 20°C | @1-10MHz | f<=30MHz | @1MHz | @1.5MHz | @2MHz | @3MHz |
|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km | Ω | mΩ/m | dB/km | dB/km | dB/km | dB/km |
|---|
| 0.75 | 19/0.22 | 1.4 | 8.3 | 97 | 26.7 | 120+/-12 | 30 | 10 | 13 | 14 | 18 |
FRL-WTB-02YCH-1P0.75S
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Max. Conductor Resistance | Impedance | Max. Transfer Impedance | Max. Attenuation |
|---|
| 20°C | @1-10MHz | f<=30MHz | @1MHz | @1.5MHz | @2MHz | @3MHz |
|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km | Ω | mΩ/m | dB/km | dB/km | dB/km | dB/km |
|---|
| 0.75 | 19/0.22 | 1.4 | 9.0 | 110 | 26.7 | 120+/-12 | 30 | 10 | 13 | 14 | 18 |
FRL-WTB-02YCH-2P0.75S
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Max. Conductor Resistance | Impedance | Max. Transfer Impedance | Max. Attenuation |
|---|
| 20°C | @1-10MHz | f<=30MHz | @1MHz | @1.5MHz | @2MHz | @3MHz |
|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km | Ω | mΩ/m | dB/km | dB/km | dB/km | dB/km |
|---|
| 0.75 | 19/0.22 | 1.4 | 11.4 | 150 | 26.7 | 120+/-12 | 30 | 10 | 13 | 14 | 18 |
