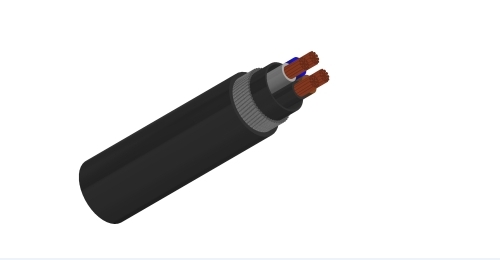

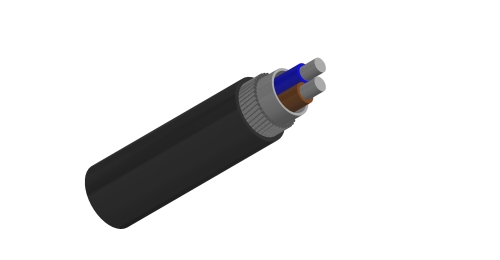

BS 5467 Armoured Power Cables, 1900/3300V
APPLICATIONThese cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the…
BS 5467 Armoured Power Cables, 1900-3300V.pdf Contact us
Previous: no more Previous: EEMUA 133 Lead covered armoured Power Cables to BS 5467, 1900/3300V

APPLICATION

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

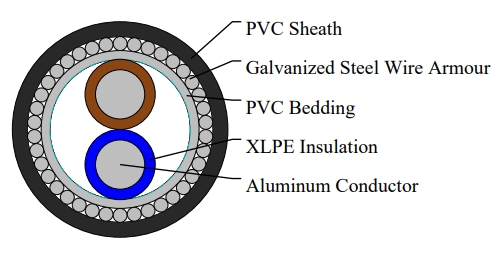

CONSTRUCTION

ConductorSolid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228.
InsulationXLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2.
Colour Code1 Core : Brown
3 Cores : Brown, Black, Grey
BeddingThe bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable.
ArmourSingle Core : AWA (Aluminum Wire Armour)
Multi Core : GSWA (Galvanized Steel Wire Armour)
Outer SheathExtruded PVC, type 9 specified in BS7655-4.2.

TECHNICAL INFORMATION

Voltage rating1900/3300V
Temperature rating0°C to +90°C
Bending radius1.5mm² to 16mm² : 6 x overall diameter
25mm² and above : 8 x overall diameter
Flame retardantBS EN 60332-1-2

CABLE PARAMETER

Single-core 1900/3300 V cables with circular stranded copper conductor

Nominal Cross-sectional AreaStrand TypeNominal Insulation thicknessNominal Bedding thicknessNominal Alum Wire Armor dia.Nominal Sheath thicknessApprox. Overall DiameterAprrox Weight
mm²No./mmmmmmmmmmmmkg/km
1x5019/1.7820.81.251.620.6790
1x7019/2.1420.81.251.622.41040
1x9519/2.5220.81.251.624.31330
1x12037/2.03211.61.727.21680
1x15037/2.25211.61.728.81970
1x18537/2.52211.61.830.82370
1x24061/2.25211.61.833.52960
1x30061/2.52211.61.936.13610
1x40061/2.8521.22240.54600
1x50061/3.202.21.222.144.25680
1x630127/2.522.41.222.248.87160
1x800127/2.852.61.42.52.455.49150
1x1000127/3.202.81.42.52.560.611270

Single-core 1900/3300 V cables with solid aluminum conductor

Nominal Cross-sectional AreaNominal Insulation thicknessNominal bedding thicknessNominal Alum Wire Armor dia.Nominal Sheath thicknessApprox. Overall DiameterAprrox Weight
mm²mmmmmmmmmmkg/km
1x5020.81.251.619.4600
1x7020.81.251.620.9710
1x9520.81.251.622.5810
1x120211.61.725.21065
1x150211.61.726.51210
1x185211.61.828.31390
1x240211.61.830.51630
1x300211.61.932.81900

Three-core 1900/3300 V cables with stranded copper conductors

Nominal Cross-sectional AreaStrand TypeNominal Insulation thicknessNominal Bedding thicknessNominal Steel Wire Armor dia.Nominal Sheath thicknessApprox. Overall DiameterAprrox Weight
mm²No./mmmmmmmmmmmmkg/km
3x167/1.70211.61.829.31600
3x257/2.14211.61.832.22060
3x357/2.52211.61.934.82400
3x35*7/2.52211.61.931.12400
3x50*19/1.7821.22234.73200
3x70*19/2.1421.222.1383800
3x95*19/2.5221.222.241.44730
3x120*37/2.0321.42.52.345.76070
3x150*37/2.2521.42.52.448.57010
3x185*37/2.5221.42.52.551.98270
3x240*61/2.2521.62.52.656.910310
3x300*61/2.5221.62.52.761.212300
3x400*61/2.8521.62.52.966.614500

* Shaped stranded conductor (class 2)

Three-core 1900/3300 V cables with solid aluminum conductors

Nominal Cross-sectional AreaNominal Insulation thicknessNominal Bedding thicknessNominal Steel Wire Armor dia.Nominal Sheath thicknessApprox. Overall DiameterAprrox Weight
mm²mmmmmmmmmmkg/km
3x16211.61.827.91540
3x25211.61.830.41780
3x35211.61.932.72040
3x35*211.61.929.72040
3x50*21.222332760
3x70*21.222.1363210
3x95*21.222.239.13625
3x120*21.42.52.343.14820
3x150*21.42.52.445.65410
3x185*21.42.52.548.76070
3x240*21.62.52.653.27150
3x300*21.62.52.757.28120

* Solid shaped conductor (class 1)
