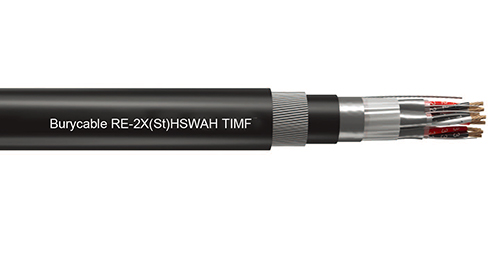

XLPE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multi-triple)

Application

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire,these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoorand outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

Standards

Basic design to EN 50288-7

Fire Performance

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300V

Cable Construction

Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

Individual Screen : Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2

Pair : Two conductors twisted to form a pair

Lay-up : Pairs laid up in layers of optimum pitch

Separator : Polyester tape

Overall Screen : Aluminium/polyester tape with tinned copper drain wire, 0.5mm²

Inner sheath : HFFR compound, EN 50290-2-27

Armour : Galvenized round steel wire, EN 10257-1

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

Colour Code

Insulation : Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath : Black or blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State) : -30°C – +70°C

Temperature Range During Installation (Mobile State) : -5°C – +50°C

Minimum Bending Radius : 7.5 × Overall Diameter

Electrical Roperties

Construction Parameterst
