FAA L-824 Type B Unshielded 5kV
FAA L-824 Type B Unshielded 5kVApplicationsThese cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational ai…
FAA L-824 Type B Unshielded 5kV.pdf Contact us

FAA L-824 Type B Unshielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

Standards

FAA L-824 Type B
ICEA S-96-659/NEMA WC71

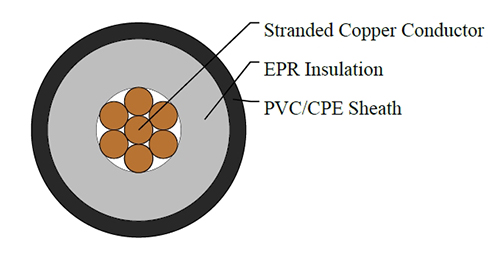

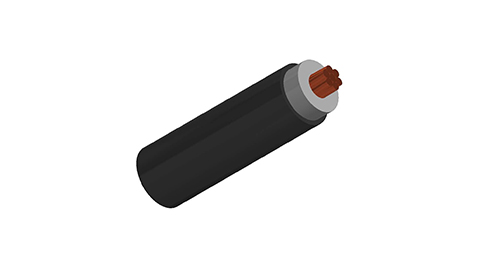

Construction

Conductor: Stranded bare or tinned copper conductor.
Insulation: EPR.
Sheath: CPE/PVC.

Technical Data

Rated Voltage Uo/U (Um)5kV
Maximum Conductor Temperature90℃
Short Circuit Temperature250℃
Operating Temperatures-40℃~+85℃
Minimum Bending Radius5×OD
Halogen FreeYes
Abrasion ResistantYes
UV ResistantYes
Oil ResistantYes

Dimensions and Weight

ConstructionNo. of
Strand
Nominal Insulation
Thickness
Nominal Sheath
Thickness
Nominal Overall
Diameter
Nominal Weight
No. ×mm²/
AWG
-mminchesmminchesmmincheskg/kmlbs/kft
1×6mm²7/192.30.091.20.0510.00.39150101
1×87/192.30.090.760.0310.70.420180121
1×67/192.30.090.760.0311.70.460238160
1×47/192.30.090.760.0312.80.505326219
