Applications
These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, can be installed in conduit, duct, aerial and direct burial.
Standards
FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

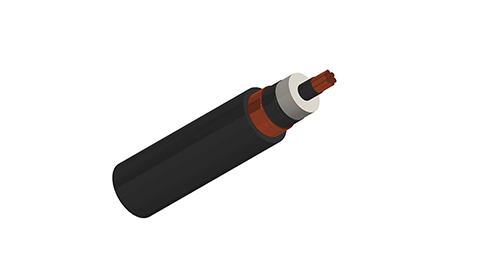

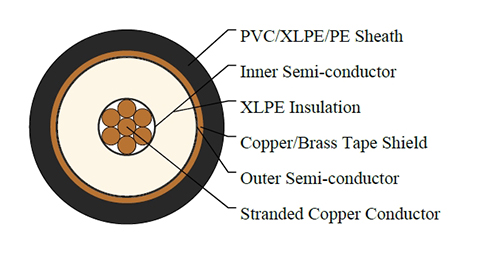

Construction
Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
Sheath: PVC. PE/XLPE can be offered upon request.
Technical Data
| Rated Voltage Uo/U (Um)
| 5kV
|
| Maximum Conductor Temperature
| 90℃
|
| Short Circuit Temperature
| 250℃
|
| Operating Temperatures
| -40℃~+90℃
|
| Minimum Bending Radius
| static: 10×OD; dynamic: 20×OD
|
| Impacted Resistant | Yes |
Weather Resistant | Yes |
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | |||
|---|---|---|---|---|---|---|---|
| No.× AWG | - | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7/19 | 2.3 | 0.09 | 11.0 | 0.43 | 180 | 121 |
| 1×8 | 7/19 | 2.3 | 0.09 | 14.3 | 0.565 | 298 | 200 |
| 1×6 | 7/19 | 2.3 | 0.09 | 15.4 | 0.605 | 366 | 246 |
| 1×4 | 7/19 | 2.3 | 0.09 | 17.0 | 0.668 | 513 | 345 |
