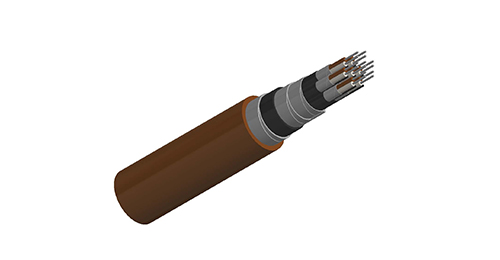

Individual & Overall Screened & Armored Thermocouple Cable

Applications

These cables are suitable for underground use in industries where hydrocarbon may be present and where chemical and mechanical protections are required.

Standards

IEC 60584-3

NF C 42-324

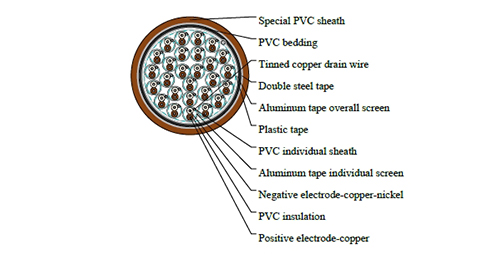

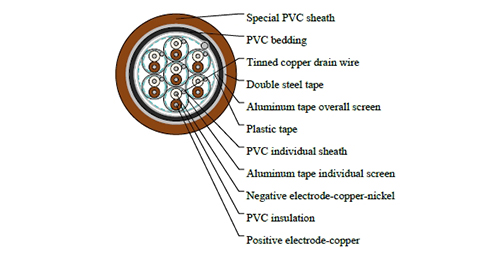

Construction

Conductor : Metal according to thermocouple type

Insulation : PVC

Individual screen : Aluminum/polyester tape with tinned copper drain wire

Individual sheath : PVC

Overall screen : Aluminum/polyester tape with tinned copper drain wire

Inner sheath : PVC

Armor : Double steel tape

Sheath : Special PVC. Color depends on thermocouple type

Properties

Flame retardance : NFC 32070 C2, IEC 60332-1-2

Operating voltage : 250V

Operating temperature : -20~60°C

Max. conductor temperature in service : 70°C

Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
