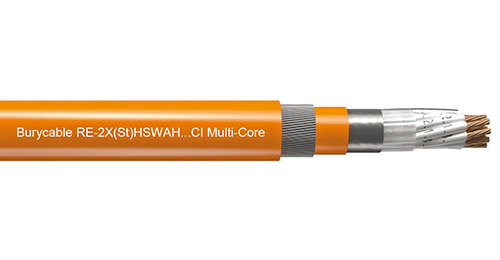

RE-2X(St)HSWAH...CI Multi-Core

Fire Resistant Overall Screened, Armoured Instrumentation Cables (Multicore)RE-2X(St)HSWAH...CIAPPLICATIONThe armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides e…

RE-2X(St)HSWAH...CI Multi-Core.pdf Contact us

Previous: RE-2X(St)HSWAH...CI Multi-Pair Previous: RE-2X(St)H Multi-Core

Fire Resistant Overall Screened, Armoured Instrumentation Cables (Multicore)

RE-2X(St)HSWAH...CI

APPLICATION

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

CABLE CONSTRUCTION

Conductor	Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier	Mica glass tape.
Insulation	Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Overall Screen	Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.
Inner Sheath	Thermoplastic LSZH compound.
Armouring	Galvanised steel wire.
Outer Sheath	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option	UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour	Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath	Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation	-30°C - +90°C
Temperature range fixed installation	-5°C - +50°C
Maximum short circuit temperature (5 Seconds)	250°C
Minimum bending radius	10 × Overall Diameter

ELECTRICAL PROPERTIES

300V

Conductor area size		mm²	0.5	0.75	1.0	1.5
Insulation thickness (Nominal)		mm	0.4	0.4	0.4	0.5
Insulation thickness (Minimum)		mm	0.26	0.26	0.26	0.35
Conductor resistance (20°C)		ohm/km	36.7	25.0	18.5	12.3
Minimum Insulation resistance (20°C)		Mohm/km	1000
Maximum Mutual capacitance		nf/km	250
Capacitance Unbalance		pf/500m	500
Maximum l/R (ratio)		μH/Ω	25	25	25	40
Operating Voltage		V	300
Dielectric strength for 1 minute	AC	V	≥1000
Dielectric strength for 1 minute	DC	V	≥2000

500V

Conductor area size		mm²	0.5	0.75	1.0	1.5	2.5
Insulation thickness (nominal)		mm	0.6	0.6	0.6	0.6	0.7
Insulation thickness (minimum)		mm	0.44	0.44	0.44	0.44	0.53
Conductor resistance (20°C)		ohm/km	36.7	25.0	18.5	12.3	7.4
Minimum Insulation resistance (20°C)		Mohm/km	1000
Maximum Mutual capacitance		nf/km	250
Capacitance Unbalance		pf/500m	500
Maximum l/R (ratio)		μH/Ω	25	25	25	40	60
Operating Voltage		V	500
Dielectric strength for 1 minute	AC	V	≥2000
Dielectric strength for 1 minute	DC	V	≥3000

CONSTRUCTION PARAMETERS

300V

Conductor		RE-2X(St)HSWAH...CI
No. of Core × Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm²		mm	mm	mm	mm	mm	kg/km
0.5mm²
2x0.5	2	0.4	0.9	0.9	1.3	11.8	287
3x0.5	2	0.4	0.9	0.9	1.3	12.2	312
4x0.5	2	0.4	0.9	0.9	1.3	12.9	346
5x0.5	2	0.4	0.9	0.9	1.3	13.7	383
8x0.5	2	0.4	1.0	0.9	1.4	15.7	491
10x0.5	2	0.4	1.0	0.9	1.4	17.6	579
12x0.5	2	0.4	1.0	0.9	1.4	18.0	616
14x0.5	2	0.4	1.0	0.9	1.4	18.7	663
16x0.5	2	0.4	1.0	0.9	1.4	19.4	713
20x0.5	2	0.4	1.1	1.25	1.5	21.8	960
24x0.5	2	0.4	1.1	1.25	1.5	24.0	1103
27x0.5	2	0.4	1.1	1.25	1.5	24.5	1155
30x0.5	2	0.4	1.2	1.25	1.5	25.4	1239
37x0.5	2	0.4	1.2	1.25	1.6	27.1	1403
40x0.5	2	0.4	1.2	1.25	1.6	27.9	1474
0.75mm²
2x0.75	2	0.4	0.9	0.9	1.3	12.1	304
3x0.75	2	0.4	0.9	0.9	1.3	12.6	333
4x0.75	2	0.4	0.9	0.9	1.4	13.5	380
5x0.75	2	0.4	1.0	0.9	1.4	14.5	433
8x0.75	2	0.4	1.0	0.9	1.4	16.3	536
10x0.75	2	0.4	1.1	0.9	1.5	18.7	657
12x0.75	2	0.4	1.1	0.9	1.5	19.1	702
14x0.75	2	0.4	1.1	0.9	1.5	19.9	758
16x0.75	2	0.4	1.1	1.25	1.5	21.4	945
20x0.75	2	0.4	1.2	1.25	1.6	23.1	1089
24x0.75	2	0.4	1.3	1.25	1.6	25.7	1273
27x0.75	2	0.4	1.3	1.25	1.6	26.2	1337
30x0.75	2	0.4	1.3	1.25	1.6	26.9	1414
37x0.75	2	0.4	1.3	1.25	1.7	28.8	1607
40x0.75	2	0.4	1.4	1.25	1.7	29.9	1712
1.0mm²
2x1.0	2	0.4	0.9	0.9	1.3	12.6	326
3x1.0	2	0.4	0.9	0.9	1.3	13.0	360
4x1.0	2	0.4	0.9	0.9	1.4	14.0	413
5x1.0	2	0.4	0.9	0.9	1.4	15.0	461
8x1.0	2	0.4	1.0	0.9	1.4	17.0	591
10x1.0	2	0.4	1.0	0.9	1.5	19.3	713
12x1.0	2	0.4	1.0	0.9	1.5	19.8	767
14x1.0	2	0.4	1.0	1.25	1.5	21.3	960
16x1.0	2	0.4	1.1	1.25	1.5	22.4	1052
20x1.0	2	0.4	1.2	1.25	1.5	23.0	1204
24x1.0	2	0.4	1.2	1.25	1.6	26.8	1406
27x1.0	2	0.4	1.2	1.25	1.6	27.3	1483
30x1.0	2	0.4	1.2	1.25	1.6	28.1	1574
37x1.0	2	0.4	1.3	1.25	1.7	30.3	1823
40x1.0	2	0.4	1.3	1.60	1.7	31.9	2121
1.5mm²
2x1.5	2	0.5	0.9	0.9	1.4	13.7	379
3x1.5	2	0.5	0.9	0.9	1.4	14.2	423
4x1.5	2	0.5	1.0	0.9	1.4	15.4	491
5x1.5	2	0.5	1.0	0.9	1.4	16.4	552
8x1.5	2	0.5	1.1	0.9	1.5	18.9	727
10x1.5	2	0.5	1.1	1.25	1.5	22.1	1000
12x1.5	2	0.5	1.1	1.25	1.5	22.6	1075
14x1.5	2	0.5	1.2	1.25	1.5	23.8	1184
16x1.5	2	0.5	1.2	1.25	1.6	25.0	1294
20x1.5	2	0.5	1.3	1.25	1.6	26.8	1488
24x1.5	2	0.5	1.3	1.25	1.7	30.0	1741
27x1.5	2	0.5	1.4	1.25	1.7	30.7	1866
30x1.5	2	0.5	1.4	1.6	1.7	32.4	2191
37x1.5	2	0.5	1.4	1.6	1.8	34.7	2502
40x1.5	2	0.5	1.5	1.6	1.8	35.9	2663

500V

Conductor		RE-2X(St)HSWAH...CI
No. of Core × Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm²		mm	mm	mm	mm	mm	kg/km
0.5mm²
2x0.5	2	0.6	0.9	0.9	1.3	12.6	317
3x0.5	2	0.6	0.9	0.9	1.3	13.1	346
4x0.5	2	0.6	0.9	0.9	1.4	14.1	393
5x0.5	2	0.6	0.9	0.9	1.4	14.9	437
8x0.5	2	0.6	1.0	0.9	1.4	17.0	553
10x0.5	2	0.6	1.0	0.9	1.5	19.4	664
12x0.5	2	0.6	1.1	0.9	1.5	20.0	723
14x0.5	2	0.6	1.1	1.25	1.5	21.5	908
16x0.5	2	0.6	1.1	1.25	1.5	22.4	973
20x0.5	2	0.6	1.2	1.25	1.5	24.0	1106
24x0.5	2	0.6	1.2	1.25	1.6	26.8	1288
27x0.5	2	0.6	1.2	1.25	1.6	27.3	1350
30x0.5	2	0.6	1.3	1.25	1.6	28.3	1447
37x0.5	2	0.6	1.3	1.25	1.6	30.1	1623
40x0.5	2	0.6	1.3	1.6	1.7	32.0	1925
0.75mm^²
2x0.75	2	0.6	0.9	0.9	1.3	12.9	335
3x0.75	2	0.6	0.9	0.9	1.3	13.4	368
4x0.75	2	0.6	0.9	0.9	1.4	14.5	420
5x0.75	2	0.6	1.0	0.9	1.4	15.6	481
8x0.75	2	0.6	1.0	0.9	1.4	17.6	598
10x0.75	2	0.6	1.0	0.9	1.5	20.1	720
12x0.75	2	0.6	1.0	1.25	1.5	21.3	900
14x0.75	2	0.6	1.1	1.25	1.5	22.3	986
16x0.75	2	0.6	1.1	1.25	1.5	23.3	1059
20x0.75	2	0.6	1.2	1.25	1.6	25.2	1222
24x0.75	2	0.6	1.3	1.25	1.6	28.1	1431
27x0.75	2	0.6	1.3	1.25	1.6	28.6	1504
30x0.75	2	0.6	1.3	1.25	1.6	29.5	1592
37x0.75	2	0.6	1.4	1.6	1.7	32.5	2041
40x0.75	2	0.6	1.4	1.6	1.7	33.5	2143
1.0mm²
2x1.0	2	0.6	0.9	0.9	1.3	13.4	357
3x1.0	2	0.6	0.9	0.9	1.4	14.1	403
4x1.0	2	0.6	1.0	0.9	1.4	15.2	466
5x1.0	2	0.6	1.0	0.9	1.4	16.2	521
8x1.0	2	0.6	1.0	0.9	1.4	18.3	655
10x1.0	2	0.6	1.1	1.25	1.5	21.8	939
12x1.0	2	0.6	1.1	1.25	1.5	22.4	1003
14x1.0	2	0.6	1.1	1.25	1.5	23.3	1084
16x1.0	2	0.6	1.2	1.25	1.6	24.7	1200
20x1.0	2	0.6	1.2	1.25	1.6	26.3	1353
24x1.0	2	0.6	1.3	1.25	1.6	29.4	1587
27x1.0	2	0.6	1.3	1.25	1.7	30.1	1691
30x1.0	2	0.6	1.3	1.6	1.7	31.7	1995
37x1.0	2	0.6	1.4	1.6	1.7	34.0	2274
40x1.0	2	0.6	1.4	1.6	1.8	35.2	2411
1.5mm²
2x1.5	2	0.6	0.9	0.9	1.3	14.1	394
3x1.5	2	0.6	1.0	0.9	1.4	14.9	453
4x1.5	2	0.6	1.0	0.9	1.4	15.9	513
5x1.5	2	0.6	1.0	0.9	1.4	17.0	577
8x1.5	2	0.6	1.1	0.9	1.5	19.6	760
10x1.5	2	0.6	1.2	1.25	1.5	23.1	1064
12x1.5	2	0.6	1.2	1.25	1.6	23.9	1157
14x1.5	2	0.6	1.2	1.25	1.6	24.9	1254
16x1.5	2	0.6	1.2	1.25	1.6	25.9	1355
20x1.5	2	0.6	1.3	1.25	1.7	28.0	1575
24x1.5	2	0.6	1.4	1.6	1.7	32.1	2052
27x1.5	2	0.6	1.4	1.6	1.7	32.7	2164
30x1.5	2	0.6	1.4	1.6	1.8	33.9	2316
37x1.5	2	0.6	1.5	1.6	1.8	36.3	2651
40x1.5	2	0.6	1.5	1.6	1.8	37.3	2793
2.5mm²
2x2.5	2	0.7	1.0	0.9	1.4	15.5	474
3x2.5	2	0.7	1.0	0.9	1.4	16.2	537
4x2.5	2	0.7	1.0	0.9	1.4	17.3	616
5x2.5	2	0.7	1.1	0.9	1.5	19.0	723
8x2.5	2	0.7	1.2	1.25	1.5	22.5	1090
10x2.5	2	0.7	1.3	1.25	1.6	26.0	1336
12x2.5	2	0.7	1.3	1.25	1.6	26.7	1446
14x2.5	2	0.7	1.3	1.25	1.7	28.0	1593
16x2.5	2	0.7	1.4	1.25	1.7	29.4	1751
20x2.5	2	0.7	1.4	1.6	1.8	32.3	2223
24x2.5	2	0.7	1.5	1.6	1.8	36.2	2608
27x2.5	2	0.7	1.6	1.6	1.9	37.3	2814
30x2.5	2	0.7	1.6	1.6	1.9	38.4	2998
37x2.5	2	0.7	1.7	1.6	1.9	41.2	3451
40x2.5	2	0.7	1.7	1.6	2.0	42.7	3670

Note: Other conductor sizes & core configurations are available upon request.
