These cables are designed for temporary building sites as extension leads for portable or fixed equipment. The copper braid prevents earth leakage and offers mechanical protection.

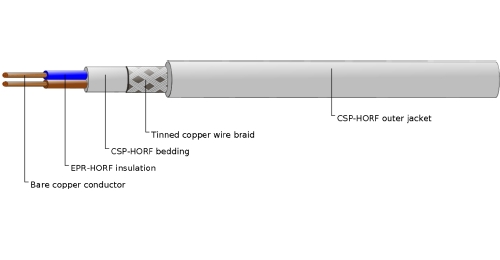

- Fine bare copper strands
- Stranding to BS 6360 CL-5 or IEC 60228 CL-5
- EPR insulation
- CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) bedding
- TCWB(tinned copper wire braid)
- CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Green/Yellow, Blue, Brown, Black, Grey
6 cores and above: white insulation with black numerals
- Working voltage: 450/750 volts
- Minimum bending radius: 8.0xOverall diameter (below 25mm^2)
10xOverall diameter (above 25mm^2)
- Temperature Range: -20o C to +85o C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩxkm
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm^2 | Nominal Thickness of Insulation mm | Nominal Thickness of Bedding mm | Diameter of Braid Wire mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Weight kg/km |

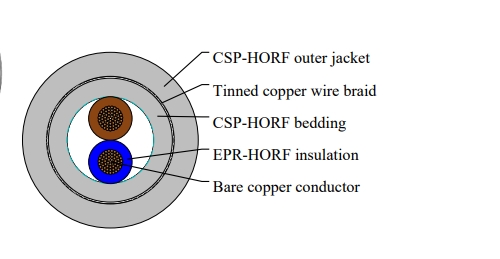

| 6802TQ | |||||||
| 12(56/28) | 2x4 | 1 | 2 | 0.2 | 2.6 | 19.8 | 578 |

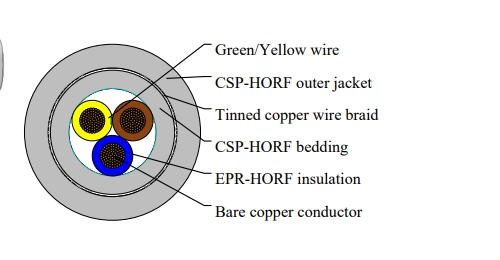

| 6803TQ | |||||||
| 12(56/28) | 3x4 | 1 | 2.2 | 0.2 | 2.8 | 21.3 | 684 |
| 10(84/28) | 3x6 | 1 | 2.4 | 0.3 | 3.1 | 24.8 | 955 |
| 8(80/26) | 3x10 | 1.2 | 3.1 | 0.3 | 3.8 | 30.7 | 1450 |
| 6(128/26) | 3x16 | 1.2 | 3.3 | 0.3 | 4 | 33.8 | 1840 |
| 4(200/26) | 3x25 | 1.4 | 3.6 | 0.4 | 4.4 | 39.6 | 2620 |

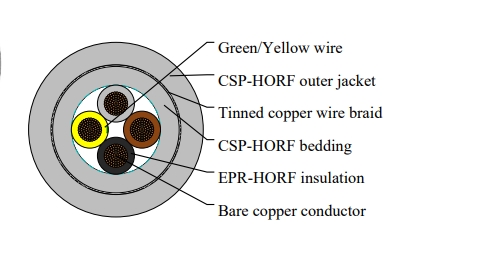

| 6804TQ | |||||||
| 12(56/28) | 4x4 | 1 | 2.3 | 0.3 | 3 | 23.6 | 874 |
| 10(84/28) | 4x6 | 1 | 2.6 | 0.3 | 3.3 | 27.1 | 1147 |
| 8(80/26) | 4x10 | 1.2 | 3.3 | 0.3 | 4 | 33.3 | 1730 |
| 6(128/26) | 4x16 | 1.2 | 3.5 | 0.4 | 4.2 | 37.2 | 2310 |
| 4(200/26) | 4x25 | 1.4 | 3.8 | 0.4 | 4.7 | 43.2 | 3170 |
| 2(280/26) | 4x35 | 1.4 | 4.1 | 0.4 | 5 | 47.9 | 3990 |
| 1(400/26) | 4x50 | 1.6 | 4.6 | 0.4 | 5.5 | 55.1 | 5320 |
