APPLICATION

The cables are designed for transmission of service tensions up to 600 VDC / 420 Veff AC100Hz in railway signalling networks, and are suitable for installation in ducts or laying directly into the ground.

STANDARD

• Dlk 1.013.107y

• Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)

• Dlk 1.013.110y

CABLE CONSTRUCTION

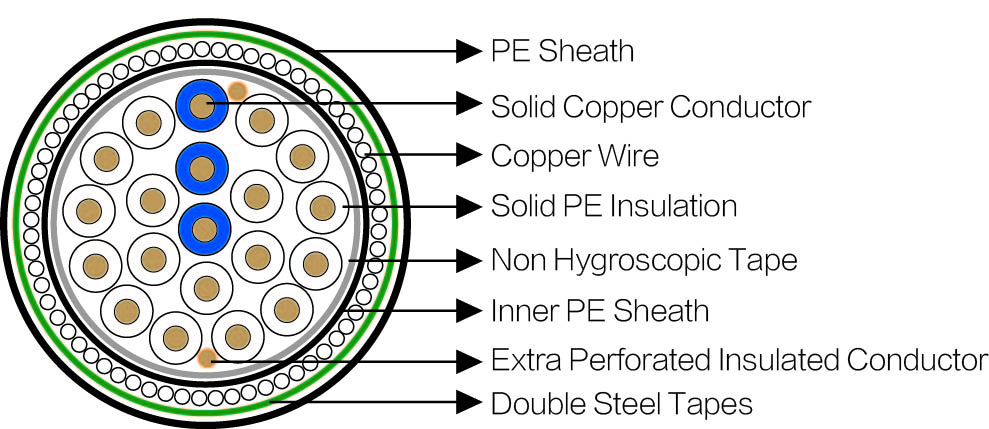

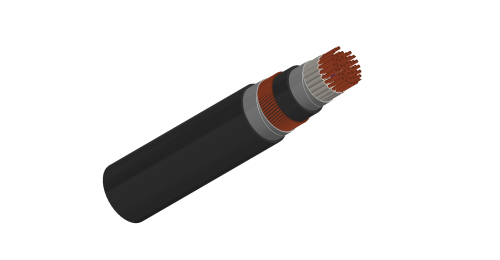

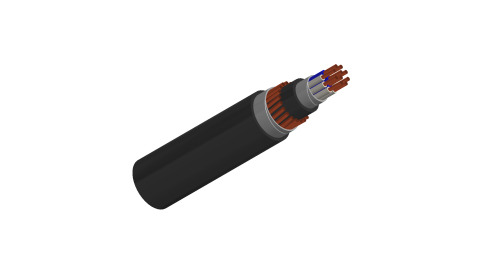

• Type CodesConductors: Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.

• Insulation: Solid polyethylene.

• Stranding: Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).

• Core Wrapping: Plastic tape(s) with overlapping.

• Inner Sheath: Low density polyethylene.

• Electrostatic Shield: One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).

• Electromagnetic Shield: Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction factor).

• Outer Sheath: Low density polyethylene.

• AJ- outdoor cable with protection against inductive infl uences

• 2Y solid PE conductor insulation

• 2Y inner PE sheath

• D copper wire concentric screen

• B steel tape armor

• 2Y outer PE sheath

• S signal cable

• LG layer stranding

• H (n) operating capacity

ELECTRICAL CHARACTERISTICS AT 20℃

*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

MECHANICAL AND THERMAL PROPERTIES

• Minimum Bending Radius: 10×OD

• Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

DIMENSIONS AND WEIGHT

AJ-2Y2YDB2Y n×1×0.9 S(H115)

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H145)

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H95)
