APPLICATION

These cables are used in low voltage power distribution networks. Special application in places with poor ventilation, direct application in places with public attendance high. They can be installed in ducts, ladders or cable trays, in dry, humid or wet environments.

STANDARDS

IEC 60228

IEC 60502-1

FIRE PERFORMANCE

VOLTAGE RATING

600/1000V

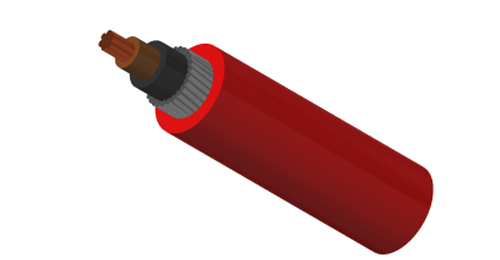

CABLE CONSTRUCTION

Conductor : Flexible copper, class 2.

Insulation : Cross linked polyethylene XLPE.

Outer Sheath : Halogen free thermoplastic compound HFFR.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Tape : Polyester tape.

COLOUR CODE

Insulation Colour : Natural.

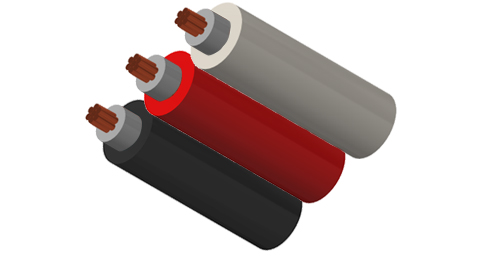

Sheath Colour : Black, red and white or black, red and blue.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 90°C

Maximum short circuit temperature (5 Seconds) : 250°C

Overload maximum core temperature : 130°C

CONSTRUCTION PARAMETERS

ELECTRICAL PROPERTIES

Conductor operating temperature : 90°C

Ambient temperature : 30°C
