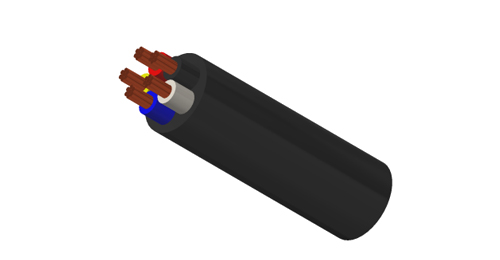

This series of cables, leveraging the excellent performance of PVC double-layer insulated sheaths (including acid-alkali corrosion resistance, strong weatherability, and flame retardant grade meeting GB/T 18380 standard), is widely applicable to power engineering in industrial and civil buildings and serves as an ideal choice for electrical engineers, engineering contractors, and purchasers.
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

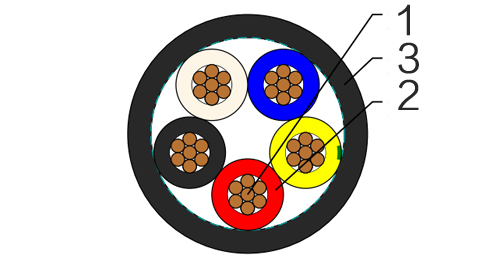

| Conductor | Plain annealed copper. |
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 4C + E - Red, White, Blue, black, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Buried direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 17 | 26 | 21 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 25 | 37 | 29 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 33 | 48 | 37 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 42 | 61 | 47 | 3.08 | 3.75 | 0.0967 | 6.49 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm^2 | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.6 | 1.5 | 0.9 | 10.0 | 145 |
| 2.5 | 7/0.67 | 0.7 | 2.5 | 1 | 12.1 | 230 |
| 4 | 7/0.85 | 0.8 | 2.5 | 1.1 | 13.6 | 320 |
| 6 | 7/1.04 | 1.0 | 2.5 | 1.1 | 15.9 | 430 |
