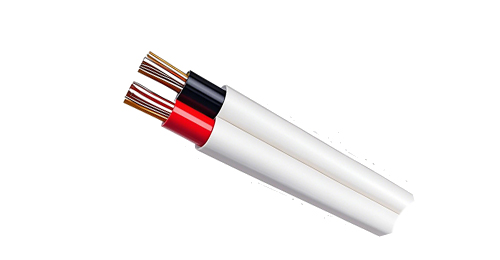

This product is specifically designed for connecting low-voltage power lines and electrical equipment, solving the problem of wiring in confined spaces. It features a two-core flat structure, saving more installation space than traditional round cables. It offers flexibility in bending during conduit installation or surface mounting, making it especially suitable for residential distribution boxes, commercial lighting cable trays, industrial equipment control cabinets, and more . Its rated voltage meets the regular requirements of household, commercial, and industrial use. It supports surface wiring, concealed conduit embedding, direct underground burial, or pipeline installation, and is widely used in household wires, industrial wires (such as power supply for assembly line equipment), commercial premises (such as office socket circuits), and other scenarios that do not require grounding. The product is certified to the AS/NZS 5000.2 standard. Its insulation layer is aging-resistant and wear-resistant, ensuring long-term safe operation.
[Note] Not suitable for environments with risks of mechanical damage such as heavy object rolling or frequent bending.
AS/NZS 5000.2
AS 1125
AS 3808

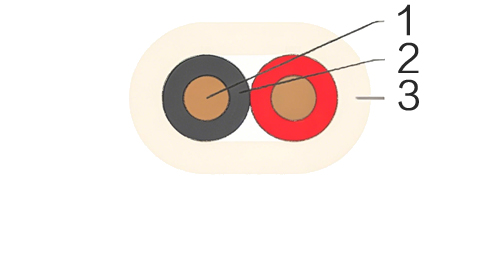

| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | 2C cable: Red, Black |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am |
| 1 | 16 | 8 | 19 | 18.1 | 27.0 | 0.119 | 54.0 |
| 1.5 | 21 | 10 | 24 | 13.6 | 17.3 | 0.111 | 34.6 |
| 2.5 | 30 | 15 | 34 | 7.41 | 9.45 | 0.102 | 18.9 |
| 4 | 39 | 19 | 44 | 4.61 | 5.88 | 0.102 | 11.8 |
| 6 | 50 | 25 | 56 | 3.08 | 3.93 | 0.0967 | 7.86 |
| 10 | 68 | 34 | 75 | 1.83 | 2.33 | 0.0906 | 4.68 |
| 16 | 91 | 46 | 97 | 1.15 | 1.47 | 0.0861 | 2.94 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 6.5x4.1 | 6.9x4.4 | 50 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 7.2x4.5 | 7.6x4.8 | 65 |
| 2.5 | 7/0.67 | 0.7 | 1 | 8.7x5.4 | 9.2x5.7 | 105 |
| 4 | 7/0.85 | 0.8 | 1.1 | 10.3x6.3 | 10.9x6.6 | 145 |
| 6 | 7/1.04 | 1.0 | 1.1 | 11.5x6.8 | 12.0x7.2 | 195 |
| 10 | 7/1.35 | 1.0 | 1.2 | 14.1x8.3 | 14.7x8.7 | 295 |
| 16 | 7/1.70 | 1.0 | 1.3 | 16.4x9.5 | 17.1x10.0 | 435 |
