EN 50264-2-1 Standard Wall Single Core Unsheathed & Fire Resistant Cables 0.6/1 kV or 1.8/3 kV

APPLICATIONEN 50264-2-1 Standard Railway Vehicle Cables - The Reliable Choice for Rail Transit Electrical ConnectionsDesigned for demanding rail transit environments, EN 50264-2-1 railway vehicle cables provide the ideal solution for power transmissio…

EN 50264-2-1 sw.0.6:1 kVor1.8:3 kV.pdf Contact us

Previous: EN 50264-2-1 Standard Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV Next: EN 50264-2-1 Standard Wall Single Core Sheathed Cables 1.8/3 kV or 3.6/6 kV

APPLICATION

EN 50264-2-1 Standard Railway Vehicle Cables - The Reliable Choice for Rail Transit Electrical Connections

Designed for demanding rail transit environments, EN 50264-2-1 railway vehicle cables provide the ideal solution for power transmission and signal control within and on the protected external areas of railway locomotives, coaches, metros, and light rail vehicles. They are particularly suited for applications requiring both easy installation and high overall cost-effectiveness.

Key advantages include:

1.Outstanding Cost-Effectiveness

2.Safety, Reliability & Certification-Backed

3.Wide Application & Strong Compatibility

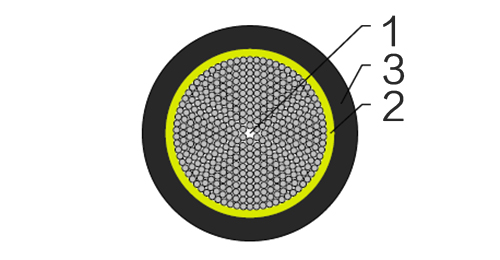

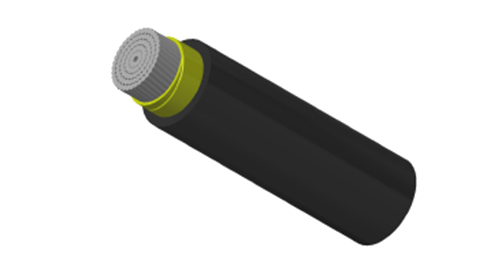

CONSTRUCTION

Conductor	Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation	Mica tape+LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)

ELECTRICAL & MECHANICAL PROPERTIES

Nominal Voltage	0.6/1 kV or 1.8/3 kV
Maximum Conductor Temperature	90°C ( fixed installation )
Minimum Permissible Ambient Temperature	-25°C/-40°C ( fixed installation )
Bending Radius	3 x Overall Diameter (D<12mm)
Bending Radius	4 x Overall Diameter (D>12mm)

CHEMICAL & ENVIRONMENTAL PROPERTIE

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3
EN50200	PH15, PH30, PH60

FIRE PERFORMANCE IN GENERAL

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16
EN 50200:2006	Resistance to fire of unprotected small cable for use in emergency circuits. 5 classifications are defined: PH 15,30,60,90 or 120 90 mins.

FRL-SW-1SU-PH15/30 0.6/1 kV

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	min	max	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
1.0	1.25	0.8	3.0	3.4	22	20	65	0.65
1.5	1.5	0.8	3.2	3.7	26	13.7	55	0.55
2.5	1.95	0.8	3.6	4.1	38	8.21	50	0.5
4.0	2.5	0.8	4.1	4.8	56	5.09	40	0.4
6.0	3.0	0.9	4.8	5.6	81	3.39	35	0.35
10	3.9	1.1	6.1	7.0	135	1.95	30	0.3
16	5.0	1.1	7.5	8.7	200	1.24	30	0.3
25	6.4	1.3	8.9	10.2	309	0.795	30	0.3
35	7.7	1.3	10.5	11.7	417	0.565	25	0.25
50	9.2	1.5	11.9	13.7	595	0.393	25	0.25
70	11.0	1.5	13.6	15.7	827	0.277	20	0.2
95	12.5	1.6	15.1	17.6	1073	0.210	20	0.2
120	14.2	1.6	16.7	19.6	1355	0.164	20	0.2
150	15.8	1.9	18.7	21.9	1703	0.132	15	0.15
185	17.5	1.9	20.4	23.9	2052	0.108	15	0.15
240	20.1	2.1	23.2	26.1	2702	0.0817	15	0.15
300	22.5	2.2	25.6	30	3348	0.0654	10	0.1
400	25.8	2.3	28.9	33.9	3900	0.0495	10	0.1

FRL-SW-3SU-PH15/30 1.8/3 kV

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	min	max	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
1.5	1.5	2.5	6.4	7.5	78	13.70	120	1.2
2.5	1.95	2.5	6.8	8.1	95	8.21	100	1.0
4.0	2.5	2.5	7.3	8.7	116	5.09	90	0.9
6.0	3.0	2.5	7.8	9.2	140	3.39	80	0.8
10	3.9	2.5	8.6	10.2	195	1.95	65	0.65
16	5.0	2.5	9.7	11.4	267	1.24	55	0.55
25	6.4	2.5	11.0	12.9	378	0.795	45	0.45
35	7.7	2.5	12.2	14.4	491	0.565	40	0.4
50	9.2	2.5	13.6	16.0	666	0.393	35	0.35
70	11.0	2.5	15.3	18.0	910	0.277	30	0.3
95	12.5	2.7	17.1	20.1	1173	0.210	30	0.3
120	14.2	2.7	18.7	22.0	1465	0.164	25	0.25
150	15.8	2.7	20.2	23.7	1793	0.132	20	0.2
185	17.5	2.7	21.8	25.6	2147	0.1080	20	0.2
240	20.1	2.7	24.3	28.5	2820	0.0817	20	0.2
300	22.5	2.7	26.5	31.1	3560	0.0654	15	0.15
400	25.8	2.9	30.0	35.2	4000	0.0495	15	0.15

(a) = for information, indicative only
