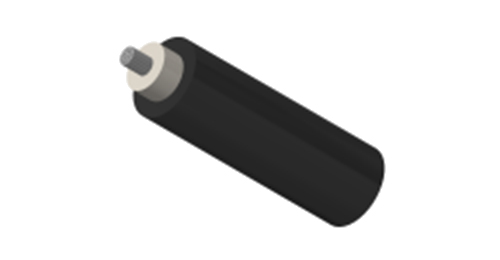

EN 50264-2-1 Standard Wall Single Core Sheathed Cables 1.8/3 kV or 3.6/6 kV

APPLICATIONBRAIL SW-3S/SW-6S are highly reliable power and control cables specifically designed for rail transportation applications.The BRAIL SW-3S/SW-6S series of single-core cables strictly comply with the EN50264-2-1 standard, offering an ideal po…

EN50264-2-1SW1.8_3 kVor3.6_6kV.pdf Contact us

Previous: EN 50264-2-1 Standard Wall Single Core Unsheathed & Fire Resistant Cables 0.6/1 kV or 1.8/3 kV Next: EN 50264-2-1 Standard Wall Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV

APPLICATION

BRAIL SW-3S/SW-6S are highly reliable power and control cables specifically designed for rail transportation applications.

åThe BRAIL SW-3S/SW-6S series of single-core cables strictly comply with the EN50264-2-1 standard, offering an ideal power and control solution for the demanding requirements of rail transportation vehicles. Whether for complex internal electrical systems within trains or fixed installation points subjected to harsh external environments, this cable series delivers exceptional reliability, safety (Low Smoke Zero Halogen - LSZH), and outstanding cost-effectiveness.

Application Scenarios:

Vehicle internal wiring

Vehicle external fixed installations

Cost-sensitive applications with high-performance requirements

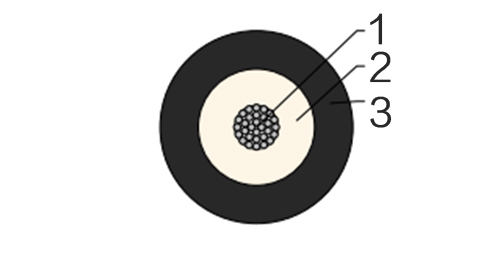

CONSTRUCTION

Conductor	Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation	LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)
Sheath	LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

ELECTRICAL & MECHANICAL PROPERTIES

Nominal Voltage	1.8/3 kV or 3.6/6 kV
Maximum Conductor Temperature	90°C ( fixed installation )
Minimum Permissible Ambient Temperature	-25°C/-40°C ( fixed installation )
Bending Radius	3 x Overall Diameter (D<12mm)
Bending Radius	4 x Overall Diameter (D>12mm)

CHEMICAL & ENVIRONMENTAL PROPERTIE

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

FIRE PERFORMANCE IN GENERAL

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN 45545-2	Requirement for fire behavior of matreial & components R15/R16

FRL-SW-3S 1.8/3 kV

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Mean Thickness of Sheath	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Mean Thickness of Sheath	min	max	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
1.5	1.5	1.3	1.4	6.7	7.8	80	13.70	960	9.6
2.5	1.95	1.3	1.4	7.1	8.3	100	8.21	850	8.5
4.0	2.5	1.3	1.4	7.6	8.9	120	5.09	750	7.5
6.0	3.0	1.3	1.4	8.1	9.5	140	3.39	670	6.7
10	3.9	2.2	1.4	10.6	12.4	250	1.95	550	5.5
16	5.0	2.2	1.4	11.7	13.6	310	1.24	450	4.5
25	6.4	2.2	1.4	13.0	15.2	410	0.795	390	3.9
35	7.7	2.2	1.4	14.2	16.5	520	0.565	350	3.5
50	9.2	2.2	1.4	15.6	18.3	660	0.393	300	3.0
70	11.0	2.2	1.5	17.5	20.5	880	0.277	260	2.6
95	12.5	2.4	1.6	19.6	22.3	1130	0.210	250	2.5
120	14.2	2.4	1.6	21.1	24.6	1370	0.164	220	2.2
150	15.8	2.4	1.7	22.7	26.6	1690	0.132	210	2.1
185	17.5	2.4	1.7	24.0	28.1	2000	0.1080	200	2.0
240	20.1	2.4	1.8	27.0	31.6	2620	0.0817	180	1.8
300	22.5	2.4	1.9	29.4	34.4	3140	0.0654	170	1.7
400	25.8	2.6	2.0	32.7	38.3	4140	0.0495	150	1.5

FRL-SW-6S 3.6/6 kV

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Mean Thickness of Sheath	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Mean Thickness of Sheath	min	max	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2.5	1.95	3.0	1.4	10.5	12.3	170	8.21	1300	13
4.0	2.5	3.0	1.4	11.0	12.9	190	5.09	1150	11.5
6.0	3.0	3.0	1.4	11.5	13.4	230	3.39	1050	10.5
10	3.9	3.0	1.4	12.3	14.4	300	1.95	850	8.5
16	5.0	3.0	1.4	13.3	15.6	360	1.24	710	7.1
25	6.4	3.0	1.4	14.7	17.2	450	0.795	630	6.3
35	7.7	3.0	1.4	15.9	18.6	560	0.565	550	5.5
50	9.2	3.0	1.5	17.5	20.5	720	0.393	500	5.0
70	11.0	3.0	1.5	19.2	22.4	930	0.277	430	4.3
95	12.5	3.0	1.6	20.8	24.3	1160	0.210	400	4.0
120	14.2	3.1	1.7	22.7	26.6	1430	0.164	360	3.6
150	15.8	3.1	1.7	24.2	28.4	1740	0.132	340	3.4
185	17.5	3.2	1.8	26.2	30.7	2080	0.108	330	3.3
240	20.1	3.4	1.9	29.2	34.2	2730	0.0817	300	3.0
300	22.5	3.4	1.9	31.5	36.9	3230	0.0654	250	2.5
400	25.8	3.4	2.0	34.8	40.7	4210	0.0495	230	2.3

(a) = for information, indicative only
