Power and Control Cables for Rail Transit Vehicles

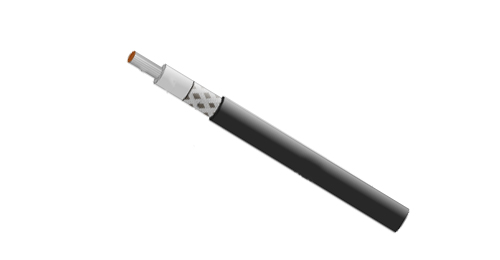

This single-core shielded cable, compliant with EN 50264-2-1, is specifically designed for protective installation inside and outside rail transit vehicles. It is particularly suitable for applications with strict requirements on wiring and installation costs. The cable is widely used for control, auxiliary, and main circuit wiring, such as:
Wiring Harnesses: For various connections within the vehicle.
Switchgear and Control Panels: For power distribution and control system connections.
Driver's Console: For signal and power transmission in the driver's control panel.
With its outstanding performance and cost-effectiveness, it is an ideal choice for upgrading and new construction projects in rail transit vehicle electrical systems.

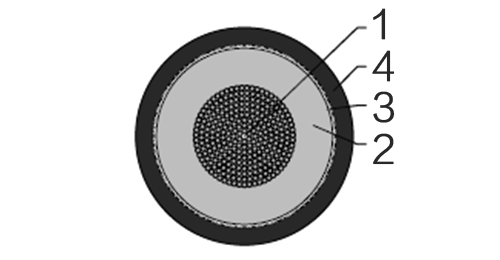

CONSTRUCTION
| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104) |
| Sheath | LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) |
| Nominal Voltage | 1.8/3 kV or 3.6/6 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius | 3 x Overall Diameter (D<12mm) |
| 4 x Overall Diameter (D>12mm) |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN45545-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN 45545-2 | Requirement for fire behavior of matreial & components R15/R16 |
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Mean Thickness of Sheath | Overall Diameter | Min Wire Diameter of Screen | Weight | Max. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | 20°C | 20°C | 90°C | ||||||
| mm² | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 1.3 | 1.4 | 7.1 | 78.2 | 0.16 | 99 | 13.70 | 960 | 9.6 |
| 2.5 | 1.95 | 1.3 | 1.4 | 7.5 | 8.7 | 0.16 | 120 | 8.21 | 850 | 8.5 |
| 4.0 | 2.5 | 1.3 | 1.4 | 8.1 | 9.4 | 0.21 | 150 | 5.09 | 750 | 7.5 |
| 6.0 | 3.0 | 1.3 | 1.4 | 8.6 | 10.0 | 0.21 | 175 | 3.39 | 670 | 6.7 |
| 10 | 3.9 | 2.2 | 1.4 | 11.1 | 12.9 | 0.21 | 290 | 1.95 | 550 | 5.5 |
| 16 | 5.0 | 2.2 | 1.4 | 12.3 | 14.2 | 0.26 | 370 | 1.24 | 450 | 4.5 |
| 25 | 6.4 | 2.2 | 1.4 | 13.6 | 15.8 | 0.26 | 480 | 0.795 | 390 | 3.9 |
| 35 | 7.7 | 2.2 | 1.4 | 14.95 | 17.25 | 0.31 | 610 | 0.565 | 350 | 3.5 |
| 50 | 9.2 | 2.2 | 1.4 | 16.35 | 19.05 | 0.31 | 770 | 0.393 | 300 | 3.0 |
| 70 | 11.0 | 2.2 | 1.5 | 18.25 | 21.25 | 0.31 | 1010 | 0.277 | 260 | 2.6 |
| 95 | 12.5 | 2.4 | 1.6 | 10.35 | 23.05 | 0.31 | 1270 | 0.210 | 250 | 2.5 |
| 120 | 14.2 | 2.4 | 1.6 | 21.85 | 25.35 | 0.31 | 1530 | 0.164 | 220 | 2.2 |
| 150 | 15.8 | 2.4 | 1.7 | 23.45 | 27.35 | 0.31 | 1870 | 0.132 | 210 | 2.1 |
| 185 | 17.5 | 2.4 | 1.7 | 24.75 | 28.85 | 0.31 | 2190 | 0.1080 | 200 | 2.0 |
| 240 | 20.1 | 2.4 | 1.8 | 27.75 | 32.35 | 0.31 | 2830 | 0.0817 | 180 | 1.8 |
| 300 | 22.5 | 2.4 | 1.9 | 30.15 | 35.15 | 0.31 | 3375 | 0.0654 | 170 | 1.7 |
| 400 | 25.8 | 2.6 | 2.0 | 33.45 | 39.05 | 0.31 | 4400 | 0.0495 | 150 | 1.5 |
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Mean Thickness of Sheath | Overall Diameter | Min Wire Diameter of Screen | Weight | Max. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | 20°C | 20°C | 90°C | ||||||
| mm² | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 2.5 | 1.95 | 3.0 | 1.4 | 10.9 | 12.7 | 0.16 | 200 | 8.21 | 1300 | 13 |
| 4.0 | 2.5 | 3.0 | 1.4 | 11.4 | 13.3 | 0.16 | 225 | 5.09 | 1150 | 11.5 |
| 6.0 | 3.0 | 3.0 | 1.4 | 12.0 | 13.9 | 0.21 | 280 | 3.39 | 1050 | 10.5 |
| 10 | 3.9 | 3.0 | 1.4 | 12.8 | 14.9 | 0.21 | 355 | 1.95 | 850 | 8.5 |
| 16 | 5.0 | 3.0 | 1.4 | 13.8 | 16.1 | 0.21 | 420 | 1.24 | 710 | 7.1 |
| 25 | 6.4 | 3.0 | 1.4 | 15.3 | 17.8 | 0.26 | 540 | 0.795 | 630 | 6.3 |
| 35 | 7.7 | 3.0 | 1.4 | 16.5 | 19.2 | 0.26 | 658 | 0.565 | 550 | 5.5 |
| 50 | 9.2 | 3.0 | 1.5 | 18.25 | 21.25 | 0.31 | 850 | 0.393 | 500 | 5.0 |
| 70 | 11.0 | 3.0 | 1.5 | 19.95 | 23.15 | 0.31 | 1080 | 0.277 | 430 | 4.3 |
| 95 | 12.5 | 3.0 | 1.6 | 21.55 | 25.05 | 0.31 | 1320 | 0.210 | 400 | 4.0 |
| 120 | 14.2 | 3.1 | 1.7 | 23.45 | 27.35 | 0.31 | 1600 | 0.164 | 360 | 3.6 |
| 150 | 15.8 | 3.1 | 1.7 | 24.95 | 28.15 | 0.31 | 1930 | 0.132 | 340 | 3.4 |
| 180 | 17.5 | 3.2 | 1.8 | 26.95 | 31.45 | 0.31 | 2290 | 0.108 | 330 | 3.3 |
| 240 | 20.1 | 3.4 | 1.9 | 29.95 | 34.95 | 0.31 | 2970 | 0.0817 | 300 | 3.0 |
| 300 | 22.5 | 3.4 | 1.9 | 32.25 | 37.65 | 0.31 | 3565 | 0.0654 | 250 | 2.5 |
| 400 | 25.8 | 3.4 | 2.0 | 35.55 | 41.45 | 0.31 | 4620 | 0.0495 | 230 | 2.3 |
(a) = for information, indicative only
