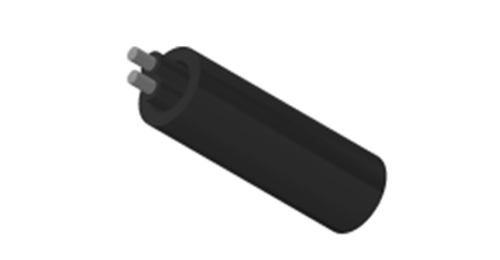

EN 50264-2-2 Standard Wall Multicore Unscreened Cables 300/500 V or 0.6/1 kV
APPLICATIONBRAIL SW-05M/BRAIL SW-1M power and control cables conform to EN 50264-2-2 standard, specifically designed for protective installations inside and outside rail transit vehicles. They are particularly suitable for applications with stringent …
9EN 50264-2-2sw300_500Vor0.6_1kV.pdf Contact us
Previous: EN 50264-2-1 Standard Wall Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kVNext: EN 50264-2-2 Standard Wall Multicore Overall Screened Cables 300/500 V or 0.6/1 kV

APPLICATION

  • BRAIL SW-05M/BRAIL SW-1M power and control cables conform to EN 50264-2-2 standard, specifically designed for protective installations inside and outside rail transit vehicles. They are particularly suitable for applications with stringent cost control requirements, offering excellent cost-effectiveness.

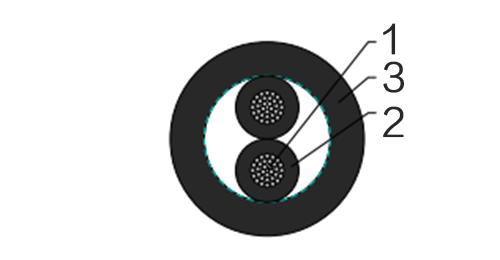

CONSTRUCTION

Conductorflexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
InsulationLSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105)
Outer sheathLSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

ELECTRICAL & MECHANICAL PROPERTIES

Nominal Voltage300/500 V or 0.6/1 kV
Maximum Conductor Temperature90°C ( fixed installation )
Minimum Permissible Ambient Temperature-25°C/-40°C ( fixed installation )
Bending Radius3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

CHEMICAL & ENVIRONMENTAL PROPERTIE

EN 60684-2No fluorine
EN 50305; EN 60811-2-1Resistance to mineral oil & fuel oil, acid & alkali
EN 50305Resistance to ozone

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

EN 50306-2Hazard levels HL1, HL2, HL3
DIN 5510-2Protection level 1/2/3/4
BS 6853Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101F0

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804		Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816		Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815		Halogen Free

EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

NF C 20-453; VDE 0472 Teil 813

Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity
NF F 63 808; BS6853; NF F 16 101Smoke index

FRL-SW-05M 300/500 V

Number And Nominal Cross-Sectional Area(a)Conductor Diameter (b)Min. Mean Thickness of InsulationDiameter of Core(b)Min. Mean Thickness of SheathOverall DiameterWeightMaximum Conductor ResistanceInsulation Resistance
EI 105EI 101- EI 104
MinMaxMinMax20℃20℃20℃
n x mm2mmmmmmmmmmmmmmkg/kmΩ/kmMΩ x kmMΩ x km
2x11.20.62.42.81.47.28.510020.014070
4x11.250.62.42.81.48.29.613020.014070
7x10.62.42.81.49.611.218020.014070
9x10.62.42.81.411.513.422020.014070
12x10.62.42.81.412.314.428020.014070
19x10.62.42.81.414.516.640020.014070
24x10.62.42.81.516.719.653020.014070
32x10.62.42.81.618.521.766020.014070
37x10.62.42.81.619.222.472020.014070
40x10.62.42.81.619.923.375020.014070
4x1.51.50.72.83.31.49.210.817013.712060
7x1.50.72.83.31.410.912.825013.712060
9x1.50.72.83.31.413.115.331013.712060
12x1.50.72.83.31.414.016.440013.712060
19x1.50.72.83.31.516.519.457013.712060
24x1.50.72.83.31.619.522.876013.712060
32x1.50.72.83.31.721.525.294013.712060
37x1.50.72.83.31.722.426.2104013.712060
4x2.51.950.83.44.01.410.712.52408.219045
7x2.50.83.44.01.412.714.93608.219045
9x2.50.83.44.01.515.618.34508.219045
12x2.50.83.44.01.516.719.65908.219045
19x2.50.83.44.01.619.723.18608.219045
24x2.50.83.44.01.823.527.511508.219045

(a) = One earth conductor (green/yellow) can be included upon request
(b) = For information,indicative only

FRL-SW-1M-OS 0.6/1 KV

Number And Nominal Cross-Sectional Area(a)Conductor Diameter (a)Min. Mean Thickness of InsulationDiameter of Core(a)Min. Mean Thickness of SheathOverall DiameterWeightMaximum Conductor ResistanceInsulation Resistance
EI 105EI 101- EI 104
MinMaxMinMax20℃20℃20℃
mm2mmmmmmmmmmmmmmkg/kmΩ/kmMΩ x kmMΩ x km
TWO CORES
1.51.50.83.03.51.48.59.914013.715075
2.51.950.83.43.91.49.310.91808.2113065
103.91.15.86.81.414.316.74801.958545
165.01.17.28.51.516.519.46301.247035
256.41.38.610.01.620.123.59200.7956535
357.71.310.211.51.722.726.612000.5656030
509.21.511.613.51.926.731.216700.3935530
THREE CORES
1.51.50.83.03.51.48.910.516013.715075
2.51.950.83.43.91.49.911.62108.2113065
42.50.83.94.61.411.012.92705.0911055
63.00.94.65.41.412.514.63603.399045
103.91.15.86.81.515.317.96001.958545
165.01.17.28.51.617.820.87901.247035
256.41.38.610.01.721.625.311700.7956535
357.71.310.211.51.824.428.615300.5656030
509.21.511.613.51.928.233.321200.3935530
FOUR CORES
1.51.50.83.03.51.49.711.319013.715075
2.51.950.83.43.91.410.712.52508.2113065
42.50.83.94.61.411.914.03305.0911055
63.00.94.65.41.413.716.14503.399045
103.91.15.86.81.516.919.87401.958545
165.01.17.28.51.619.622.99801.247035
256.41.38.610.01.824.128.214600.7956535
3X35+257.7/6.41.3/1.310.2/8.611.5/10.01.928.534.216100.565/0.7956030
3X50+259.2/6.41.5/1.311.6/8.613.5/10.02.033.440.022300.393/0.7955530

(a) = for information, indicative only
