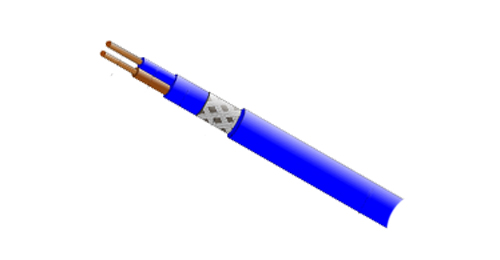

This cable is suitable for dry, damp, and humid environments, but not suitable for outdoor environments . It is primarily used as a shielded termination and connection cable in the fields of control, measurement, and signal technology. Its copper braided shield can effectively suppress the impact of interference signals such as external electromagnetic fields and stray frequencies on transmission, and is suitable for scenarios involving the transmission of control signals and pulse signals in industrial equipment, mechanical systems, and production processes.
CEI 20-20/13, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.13 S1

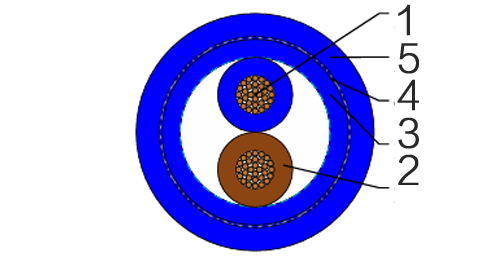

Technical Characteristics
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| PVC insulation TI2 to DIN VDE 0281 part 1 |
| Green-yellow grounding (3 conductors and above) |
| Cores to VDE-0293 colors |
| PVC inner sheath TM2 to DIN VDE 0281 part 1 |
| Tinned copper braided shielding, covering approx. 85% |
| PVC outer jacket TM5 to DIN VDE 0281 part 1 |
| Working voltage | 300/500v |
| Test voltage | 2000volts |
| Flexing bending radius | 10 x O |
| Static bending radius | 5 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -40oC to +70oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Inner Sheath | Nominal Thickness of outer Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | mm | kg/Km | kg/Km | |
| 20(16/32) | 2 x 0.50 | 0.6 | 0.7 | 0.9 | 7.7 | 35 | 105 |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.7 | 0.9 | 8 | 39 | 115 |
| 17(32/32) | 2 x 1.0 | 0.6 | 0.7 | 0.9 | 8.2 | 44 | 125 |
| 16(30/30) | 2 x 1.50 | 0.7 | 0.7 | 1.0 | 9.3 | 58 | 160 |
| 14(50/30) | 2 x 2.50 | 0.8 | 0.7 | 1.1 | 10.7 | 82 | 215 |
| 20(16/32) | 3 x 0.50 | 0.6 | 0.7 | 0.9 | 8 | 40 | 115 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.7 | 0.9 | 8.3 | 47 | 125 |
| 17(32/32) | 3 x 1.0 | 0.6 | 0.7 | 1.0 | 8.8 | 54 | 145 |
| 16(30/30) | 3 x 1.50 | 0.7 | 0.7 | 1.0 | 9.7 | 73 | 185 |
| 14(50/30) | 3 x 2.50 | 0.8 | 0.7 | 1.1 | 11.3 | 106 | 250 |
| 20(16/32) | 4 x 0.50 | 0.6 | 0.7 | 0.9 | 8.5 | 44 | 125 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.7 | 1.0 | 9.1 | 58 | 155 |
| 17(32/32) | 4 x 1.0 | 0.6 | 0.7 | 1.0 | 9.4 | 68 | 170 |
| 16(30/30) | 4 x 1.50 | 0.7 | 0.7 | 1.1 | 10.7 | 93 | 220 |
| 14(50/30) | 4 x 2.50 | 0.8 | 0.8 | 1.2 | 12.6 | 135 | 305 |
| 20(16/32) | 5 x 0.50 | 0.6 | 0.7 | 1.0 | 9.3 | 55 | 155 |
| 18(24/32) | 5 x 0.75 | 0.6 | 0.7 | 1.1 | 9.7 | 66 | 175 |
| 17(32/32) | 5 x 1.0 | 0.6 | 0.7 | 1.1 | 10.3 | 78 | 200 |
| 16(30/30) | 5 x 1.50 | 0.7 | 0.8 | 1.2 | 11.8 | 106 | 265 |
| 14(50/30) | 5 x 2.50 | 0.8 | 0.8 | 1.3 | 13.9 | 181 | 385 |
| 20(16/32) | 7 x 0.50 | 0.6 | 0.7 | 1.1 | 10.8 | 69 | 205 |
| 18(24/32) | 7 x 0.75 | 0.6 | 0.7 | 1.2 | 11.5 | 84 | 250 |
| 17(32/32) | 7 x 1.0 | 0.6 | 0.8 | 1.2 | 12.2 | 107 | 275 |
| 16(30/30) | 7 x 1.50 | 0.7 | 0.8 | 1.3 | 14.1 | 162 | 395 |
| 14(50/30) | 7 x 2.50 | 0.8 | 0.8 | 1.5 | 16.5 | 238 | 525 |
| 20(16/32) | 12 x 0.50 | 0.6 | 0.8 | 1.3 | 13.3 | 98 | 285 |
| 18(24/32) | 12 x 0.75 | 0.6 | 0.8 | 1.3 | 13.9 | 125 | 330 |
| 17(32/32) | 12 x 1.0 | 0.6 | 0.8 | 1.4 | 14.7 | 176 | 400 |
| 16(30/30) | 12 x 1.50 | 0.7 | 0.8 | 1.5 | 16.7 | 243 | 525 |
| 14(50/30) | 12 x 2.50 | 0.8 | 0.8 | 1.7 | 19.9 | 367 | 745 |
| 20(16/32) | 18 x 0.50 | 0.6 | 0.9 | 1.3 | 18.6 | 147 | 385 |
| 18(24/32) | 18 x 0.75 | 0.6 | 0.8 | 1.5 | 19.9 | 200 | 475 |
| 17(32/32) | 18 x 1.0 | 0.6 | 0.8 | 1.5 | 20.8 | 243 | 525 |
| 16(30/30) | 18 x 1.50 | 0.7 | 0.8 | 1.7 | 24.1 | 338 | 720 |
| 14(50/30) | 18 x 2.50 | 0.8 | 0.9 | 2.0 | 28.5 | 555 | 1075 |
| 20(16/32) | 25 x 0.50 | 0.6 | 0.8 | 1.6 | 22.1 | 199 | 505 |
| 18(24/32) | 25 x 0.75 | 0.6 | 0.9 | 1.7 | 23.7 | 273 | 625 |
| 17(32/32) | 25 x 1.0 | 0.6 | 0.9 | 1.7 | 24.7 | 351 | 723 |
| 16(30/30) | 25 x 1.50 | 0.7 | 0.9 | 2.0 | 28.6 | 494 | 990 |
| 14(50/30) | 25 x 2.50 | 0.8 | 1.0 | 2.3 | 34.5 | 792 | 1440 |
| 20(16/32) | 36 x 0.50 | 0.6 | 0.9 | 1.7 | 24.7 | 317 | 620 |
| 18(24/32) | 36 x 0.75 | 0.6 | 0.9 | 1.8 | 26.2 | 358 | 889 |
| 17(32/32) | 36 x 1.0 | 0.6 | 0.9 | 1.9 | 27.6 | 438 | 910 |
| 16(30/50) | 36 x 1.50 | 0.7 | 1.0 | 2.2 | 32.5 | 662 | 1305 |
| 14(30/32) | 36 x 2.50 | 0.8 | 1.0 | 2.4 | 38.5 | 1028 | 1850 |
| 20(16/32) | 48 x 0.50 | 0.6 | 0.9 | 1.9 | 28.3 | 353 | 845 |
| 18(24/32) | 48 x 0.75 | 0.6 | 1.0 | 2.1 | 30.4 | 490 | 1060 |
| 17(32/32) | 48 x 1.0 | 0.6 | 1.0 | 2.1 | 31.9 | 604 | 1210 |
| 16(30/30) | 48 x 1.50 | 0.7 | 1.1 | 2.4 | 37 | 855 | 1665 |
| 14(50/30) | 48 x 2.50 | 0.8 | 1.2 | 2.4 | 43.7 | 1389 | 2390 |
| 20(16/32) | 60 x 0.50 | 0.6 | 1.0 | 2.1 | 31.1 | 432 | 1045 |
| 18(24/32) | 60 x 0.75 | 0.6 | 1.0 | 2.3 | 329 | 576 | 1265 |
| 17(32/32) | 60 x 1.0 | 0.6 | 1.0 | 2.3 | 34.7 | 720 | 1455 |
| 16(30/30) | 60 x 1.50 | 0.7 | 1.1 | 2.4 | 39.9 | 1050 | 1990 |
| 14(50/30) | 60 x 2.50 | 0.8 | 1.2 | 2.4 | 47.2 | 1706 | 2870 |
