H05VVH6-F/H07VVH6-F Industrial Control Cables: High Flexibility & Bending Resistance, Special Power Control Cables for Lifting/Automation Equipment
The H05VVH6-F and H07VVH6-F series cables are highly flexible control cables developed by Bury Cable for complex industrial scenarios, compliant with the French NF C 32-070 and CSA C22.2 N° 49 international standards. Utilizing special stranded conductors and PVC insulated sheaths, they feature resistance to breakage under frequent bending and durability in humid, dusty environments. Specifically designed for power transmission and signal control under moderate mechanical stress, they serve as the core cable solution for dynamic connection scenarios such as lifting equipment and automated production lines.
HD 359 S3, CEI 20-25, CEI 20-35, CEI 20-52

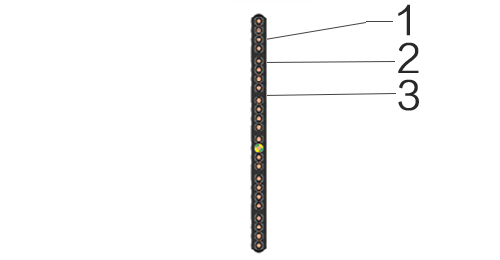

| Fine bare or tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| PVC compound insulation TI2 to VDE 0207 part 4 |
| Color coded to VDE-0293-308 |
| PVC compound outer jacket TM2 to VDE 0207 part 5 |
| Working voltage | H05VVH6-F | 300/500 V |
| H07VVH6-F | 450/700 V | |
| Test voltage | H05VVH6-F | 2 KV |
| H07VVH6-F | 2.5 KV | |
| Bending radius | 10 × cable O | |
| Flexing temperature | - 5oC to + 70oC | |
| Static temperature | -40oC to +70oC | |
| Flame retardant | test class B according to VDE 0472 part 804, IEC 60332-1 | |
| Insulation resistance | 20 MΩ x km | |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Conductor Diameter | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/Km | kg/Km | |
| H05VVH6-F | ||||||
| 18(24/32) | 4 x 0.75 | 1.2 | 0.6 | 4.2 x 12.6 | 29 | 90 |
| 18(24/32) | 8x 0.75 | 1.2 | 0.6 | 4.2 x 23.2 | 58 | 175 |
| 18(24/32) | 12x 0.75 | 1.2 | 0.6 | 4.2 x 33.8 | 86 | 260 |
| 18(24/32) | 18x 0.75 | 1.2 | 0.6 | 4.2 x 50.2 | 130 | 380 |
| 18(24/32) | 24x 0.75 | 1.2 | 0.6 | 4.2 x 65.6 | 172 | 490 |
| 17(32/32) | 4 x 1.00 | 1.4 | 0.7 | 4.4 x 13.4 | 38 | 105 |
| 17(32/32) | 5×1.00 | 1.4 | 0.7 | 4.4 x 15.5 | 48 | 120 |
| 17(32/32) | 8 x 1.00 | 1.4 | 0.7 | 4.4 x 24.8 | 77 | 205 |
| 17(32/32) | 12x 1.00 | 1.4 | 0.7 | 4.4 x 36.2 | 115 | 300 |
| 17(32/32) | 18x 1.00 | 1.4 | 0.7 | 4.4 x 53.8 | 208 | 450 |
| 17(32/32) | 24x 1.00 | 1.4 | 0.7 | 4.4 x 70.4 | 230 | 590 |
| H07VVH6-F | ||||||
| 16(30/30) | 4 x1.5 | 1.5 | 0.8 | 5.1 x 14.8 | 130 | 58 |
| 16(30/30) | 5 x1.5 | 1.5 | 0.8 | 5.1 x 17.7 | 158 | 72 |
| 16(30/30) | 7 x1.5 | 1.5 | 0.8 | 5.1 x 25.2 | 223 | 101 |
| 16(30/30) | 8 x1.5 | 1.5 | 0.8 | 5.1 x 27.3 | 245 | 115 |
| 16(30/30) | 10 x1.5 | 1.5 | 0.8 | 5.1 x 33.9 | 304 | 144 |
| 16(30/30) | 12 x1.5 | 1.5 | 0.8 | 5.1 x 40.5 | 365 | 173 |
| 16(30/30) | 18 x1.5 | 1.5 | 0.8 | 6.1 x 61.4 | 628 | 259 |
| 16(30/30) | 24 x1.5 | 1.5 | 0.8 | 5.1 x 83.0 | 820 | 346 |
| 14(50/30) | 4 x2.5 | 1.9 | 0.8 | 5.8 x 18.1 | 192 | 96 |
| 14(50/30) | 5 x2.5 | 1.9 | 0.8 | 5.8 x 21.6 | 248 | 120 |
| 14(50/30) | 7 x2.5 | 1.9 | 0.8 | 5.8 x 31.7 | 336 | 168 |
| 14(50/30) | 8 x2.5 | 1.9 | 0.8 | 5.8 x 33.7 | 368 | 192 |
| 14(50/30) | 10 x2.5 | 1.9 | 0.8 | 5.8 x 42.6 | 515 | 240 |
| 14(50/30) | 12 x2.5 | 1.9 | 0.8 | 5.8 x 49.5 | 545 | 288 |
| 14(50/30) | 24 x2.5 | 1.9 | 0.8 | 5.8 x 102.0 | 1220 | 480 |
| 12(56/28) | 4 x4 | 2.5 | 0.8 | 6.7 x 20.1 | 154 | 271 |
| 12(56/28) | 5 x4 | 2.5 | 0.8 | 6.9 x 26.0 | 192 | 280 |
| 12(56/28) | 7 x4 | 2.5 | 0.8 | 6.7 x 35.5 | 269 | 475 |
| 10(84/28) | 4 x6 | 3.0 | 0.8 | 7.2 x 22.4 | 230 | 359 |
| 10(84/28) | 5 x6 | 3.0 | 0.8 | 7.4 x 31.0 | 288 | 530 |
| 10(84/28) | 7 x6 | 3.0 | 0.8 | 7.4 x 43.0 | 403 | 750 |
| 8(80/26) | 4 x10 | 4.0 | 1.0 | 9.2 x 28.7 | 384 | 707 |
| 8(80/26) | 5 x10 | 4.0 | 1.0 | 11.0 x 37.5 | 480 | 1120 |
| 6(128/26) | 4 x16 | 5.6 | 1.0 | 11.1 x 35.1 | 614 | 838 |
| 6(128/26) | 5 x16 | 5.6 | 1.0 | 11.2 x 43.5 | 768 | 1180 |
