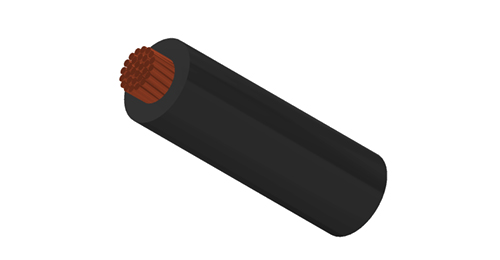

H07V-K wire and cable is an industrial-grade cable that complies with the French standard (NF C 32-201-3). Specifically designed for internal wiring of industrial equipment, distribution boards, switchgear cabinets, and lighting systems, it features a rated voltage of 450/750V, combining safety, flexibility, and durability. Certified by the CE Low Voltage Directive and RoHS environmental certification, it stands as a reliable choice for electrical connections in industrial scenarios.
CEI 20-20, CEI20-52, HD 21.3 S3
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics

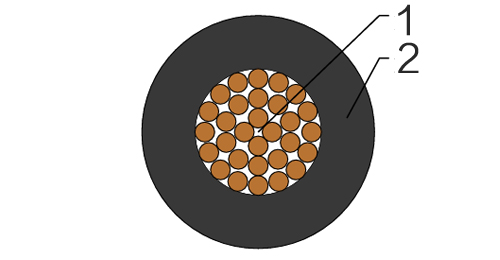

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| Working voltage | 450/750V |
| Test voltage | 2500 volts |
| Flexing bending radius | 12.5 x O |
| Static bending radius | 12.5 x O |
| Flexing temperature | -5o C to +70o C |
| Static temperature | -30o C to +80o C |
| Short circuit temperature | +160o C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 3.6 | 24.0 | 31 |
| 12(56/28) | 1 x 4 | 0,8 | 4.3 | 38.0 | 48 |
| 10(84/28) | 1 x 6 | 0,8 | 4.9 | 58.0 | 69 |
| 8(80/26) | 1 x 10 | 1,0 | 6.4 | 96.0 | 121 |
| 6(128/26) | 1 x 16 | 1,0 | 8.1 | 154.0 | 211 |
| 4(200/26) | 1 x 25 | 1,2 | 9.8 | 240 | 303 |
| 2 (280/26) | 1 x 35 | 1,2 | 11.1 | 336 | 417 |
| 1 (400/26) | 1 x 50 | 1,4 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 1,4 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1 x 95 | 1,6 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1 x 120 | 1,6 | 19.7 | 1152 | 1135 |
| 300 MCM (765/24) | 1 x 150 | 1,8 | 21.3 | 1440 | 1410 |
| 350 MCM (944/24) | 1 x 185 | 2,0 | 23.4 | 1776 | 1845 |
| 500MCM(1225/24) | 1 x 240 | 2,2 | 27.1 | 2304 | 2270 |
