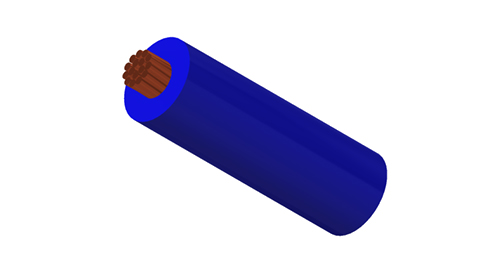

H05V-K electrical wire and cable, as a high-performance single-core flexible wire, has become an ideal choice for electrical connections in multiple scenarios, thanks to the excellent flexibility of its PVC insulation layer , the bend-resistant durability of its conductor , and strict safety standard certifications . Its refined design meets the requirements of compact wiring inside equipment, fixed installation, and low-frequency movement scenarios, ensuring long-term stable operation.
CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.3 S3
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics

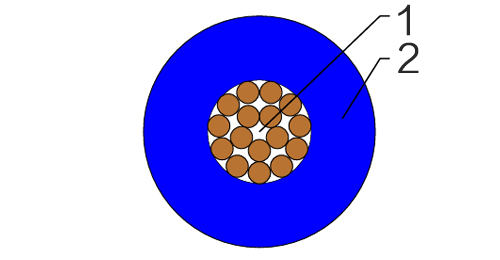

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| Working voltage | 300/500v |
| Test voltage | 2000 volts |
| Flexing bending radius | 12.5 x O |
| Static bending radius | 12.5 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +80oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 20(16/32) | 1 x 0.5 | 0.6 | 2.1 | 4.9 | 10 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.4 | 7.2 | 13 |
| 17(32/32) | 1 x 1 | 0.6 | 2.6 | 9.6 | 15 |
