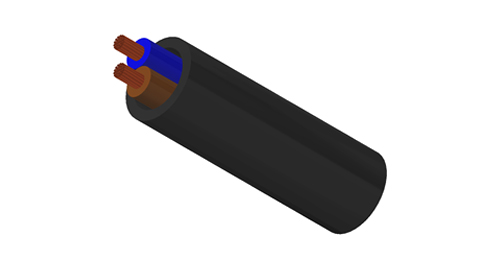

H07BN4-F WIND90 Industrial Rubber Cable, with "temperature resistance, oil resistance, torsion resistance + high mechanical strength" as its core, is specifically designed for extreme environments and complex scenarios: Temperature resistance range: -40℃ to 90℃, suitable for high and low temperature operations; 150°/m torsion resistance performance to cope with the movement of dynamic equipment; high-quality EPDM rubber sheath with oil resistance and anti-aging properties, and multi-strand finely stranded bare copper conductors (conductivity ≥ 99%), ensuring stable power transmission and strong durability for over 10 years.
CEI 20-19 p.12, CEI 20-35 (EN 60332-1), IEMMEQU HAR IEC 60245-4, IEC 60754-1/2, ROHS compliant
Technical Characteristics

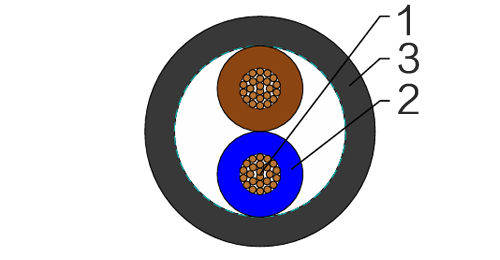

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
| Color code VDE-0293-308 |
| Special polychloroprene rubber outer jacket EM7 |
| Working voltage | 450/750 volts |
| Test voltage | 2500 volts |
| Flexing bending radius | 6.0 x O |
| Fixed bending radius | 4.0 x O |
| Temperature Range | -40oC to +90oC |
| Wind energy | -15oC to +90oC |
| Maximum Short Circuit Temperature | +250oC |
| Flame retardant | IEC 60332.1C2/NF C 32-070 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | |
| 17(32/32) | 2 x 1 | 0.8 | 1.3 | 8.2 | 93 |
| 17(32/32) | 3 x 1 | 0.8 | 1.4 | 8.9 | 114 |
| 17(32/32) | 4 x 1 | 0.8 | 1.5 | 9.8 | 139 |
| 16(30/30) | 1 x 1.5 | 0.8 | 1.4 | 5.9 | 50 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.5 | 9.3 | 118 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 10.0 | 144 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 11.0 | 177 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 12.1 | 226 |
| 16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.7 | 385 |
| 16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 18.8 | 516 |
| 16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 22.0 | 800 |
| 16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 25.7 | 882 |
| 14(50/30) | 1 x 2.5 | 0.9 | 1.4 | 6.5 | 65 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.7 | 10.9 | 172 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 11.7 | 210 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.8 | 257 |
| 14(50/30) | 5 x 2.5 | 0.9 | 2 | 14.1 | 329 |
| 14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 17.1 | 445 |
| 14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 22.1 | 702 |
| 14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 26.0 | 1030 |
| 14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 30.4 | 1312 |
| 12(56/28) | 1 x 4 | 1 | 1.5 | 7.4 | 89 |
| 12(56/28) | 2 x 4 | 1 | 1.8 | 12.6 | 238 |
| 12(56/28) | 3 x 4 | 1 | 1.9 | 13.5 | 292 |
| 12(56/28) | 4 x 4 | 1 | 2 | 14.8 | 359 |
| 12(56/28) | 5 x 4 | 1 | 2.2 | 16.3 | 422 |
| 12(56/28) | 7 x 4 | 1 | 3.1 | 19.6 | 618 |
| 10(84/28) | 1 x 6 | 1 | 1.6 | 8.1 | 115 |
| 10(84/28) | 2 x 6 | 1 | 1.8 | 13.8 | 282 |
| 10(84/28) | 3 x 6 | 1 | 2.1 | 14.8 | 355 |
| 10(84/28) | 4 x 6 | 1 | 2.3 | 16.4 | 449 |
| 10(84/28) | 5 x 6 | 1.2 | 3.6 | 18.1 | 567 |
| 8(80/26) | 1 x 10 | 1.2 | 1.8 | 10.4 | 190 |
| 8(80/26) | 2 x 10 | 1.2 | 2.3 | 19.4 | 539 |
| 8(80/26) | 3 x 10 | 1.2 | 3.3 | 20.7 | 674 |
| 8(80/26) | 4 x 10 | 1.2 | 3.4 | 22.6 | 833 |
| 8(80/26) | 5 x 10 | 1.2 | 3.6 | 24.8 | 1010 |
| 6(128/26) | 1 x 16 | 1.2 | 1.9 | 11.6 | 259 |
| 6(128/26) | 2 x 16 | 1.2 | 2.8 | 21.8 | 722 |
| 6(128/26) | 3 x 16 | 1.2 | 3.5 | 23.3 | 913 |
| 6(128/26) | 4 x 16 | 1.2 | 3.6 | 25.4 | 1138 |
| 6(128/26) | 5 x 16 | 1.2 | 3.9 | 28.1 | 1400 |
| 4(200/26) | 1 x25 | 1.4 | 2 | 13.7 | 375 |
| 4(200/26) | 2 x 25 | 1.4 | 3.3 | 25.9 | 1043 |
| 4(200/26) | 4 x 25 | 1.4 | 4.1 | 30.8 | 1714 |
| 4(200/26) | 5 x 25 | 1.4 | 4.4 | 33.9 | 2096 |
| 2(280/26) | 1 x 35 | 1.4 | 2.2 | 15.4 | 492 |
| 2(280/26) | 3 x 35 | 1.4 | 4.1 | 31.0 | 1745 |
| 2(280/26) | 4 x 35 | 1.4 | 4.4 | 34.3 | 2204 |
| 2(280/26) | 5 x 35 | 1.4 | 4.7 | 39.6 | 2810 |
| 1(400/26) | 1 x 50 | 1.6 | 2.4 | 17.7 | 675 |
| 1(400/26) | 3 x 50 | 1.6 | 3.6 | 35.8 | 2409 |
| 1(400/26) | 4 x 50 | 1.6 | 4.8 | 39.6 | 3029 |
| 1(400/26) | 5 x 50 | 1.6 | 5.1 | 44.1 | 4050 |
| 2/0(356/24) | 1 x 70 | 1.6 | 2.6 | 20.0 | 908 |
| 2/0(356/24) | 3 x 70 | 1.6 | 4.2 | 40.5 | 3211 |
| 2/0(356/24) | 4 x 70 | 1.6 | 5.2 | 44.9 | 4121 |
| 3/0(485/24) | 1 x 95 | 1.8 | 2.8 | 22.1 | 1171 |
| 3/0(485/24) | 3 x 95 | 1.8 | 4.8 | 45.1 | 4210 |
| 3/0(485/24) | 4 x 95 | 1.8 | 5.9 | 50.4 | 5361 |
| 4/0(614/24) | 1x 120 | 1.8 | 3 | 24.5 | 1445 |
| 4/0(614/24) | 3 x 120 | 1.8 | 4.8 | 49.9 | 5205 |
| 4/0(614/24) | 4 x 120 | 1.8 | 6 | 55.3 | 6546 |
| 300 MCM (765/24) | 1 x 150 | 2 | 3.2 | 26.9 | 1783 |
| 300 MCM (765/24) | 3 x 150 | 2 | 5.2 | 54.8 | 6389 |
| 300 MCM (765/24) | 4 x 150 | 2 | 6.4 | 60.9 | 8095 |
| 350 MCM (944/24) | 1 x 185 | 2.2 | 3.4 | 28.9 | 2125 |
| 350 MCM (944/24) | 4 x 185 | 2.2 | 6.8 | 65.7 | 9652 |
| 500 MCM (1221/24) | 1x 240 | 2.4 | 3.5 | 32.6 | 2733 |
| 500 MCM (1221/24) | 4x 240 | 2.4 | 7.2 | 75.5 | 12614 |
| - | 1 x 300 | 2.6 | 3.6 | 36.5 | 3348 |
