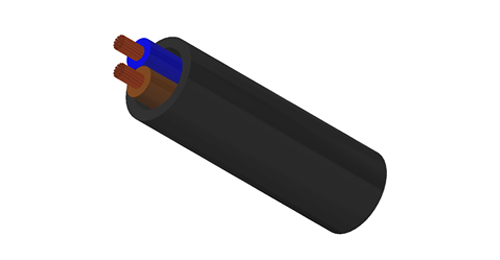

H05BN4-F Industrial Cable : Features EPR (Ethylene Propylene Rubber) insulation and CSP (Chlorosulfonated Polyethylene) sheath , specifically designed for harsh environments. It combines weather resistance (wide temperature range: -40℃ to 90℃), oil resistance (resistance to mineral oil/vegetable oil), and abrasion resistance (resistance to mechanical crushing/bending), serving as a reliable power connection solution for industrial equipment, outdoor operations, and mobile scenarios.
CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage
Technical Characteristics

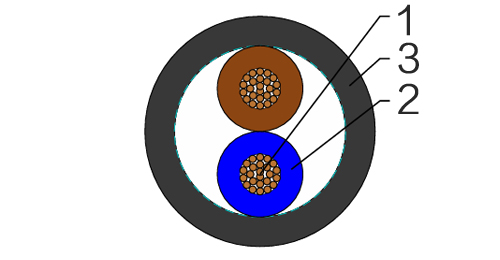

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
| Color code VDE-0293-308 |
| CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 6.0 x O |
| Fixed bending radius | 4.0 x O |
| Temperature Range | -20oC to +90oC |
| Maximum Short Circuit Temperature | +250oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.1 | 29 | 54 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.7 | 43 | 68 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 7.3 | 58 | 82 |
| 18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 8.1 | 72 | 108 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.6 | 19 | 65 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 7.0 | 29 | 78 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.6 | 38 | 95 |
| 17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.5 | 51 | 125 |
