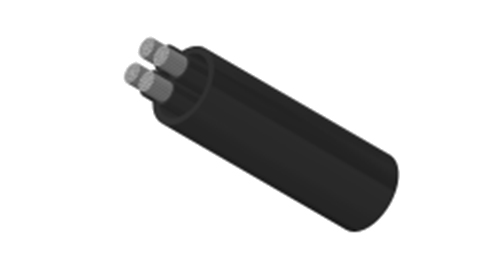

BRAIL SW-05M NF F 63-826 Cable: A High-Efficiency Solution Specifically Designed for Rail Transit
In the field of rail transit, the selection of cables is critical as it directly impacts the safe operation and optimal performance of rail vehicles. The BRAIL SW-05M NF F 63-826 Standard Wall Thickness Multi-Core Unscreened Cable 500V is a high-performance power and control cable specifically designed for protective installation inside and outside rail vehicles. It is particularly suitable for cost-sensitive applications while maintaining safety and reliability.

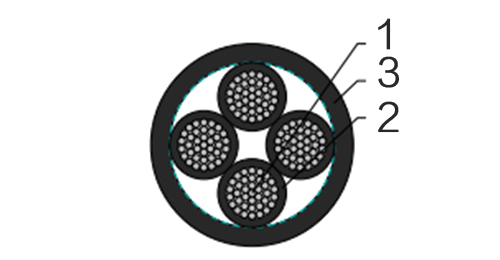

| Conductor | Stranded tinned copper wires to IEC 60228 Class 5 |
| Insulation | Halogen free compound |
| Sheath | Halogen free compound |
| Nominal Voltage | 500V |
| Max. Conductor Temperature | 90°C/105°C |
| Temperature Range | -25°C~90°C |
| Bending Radius | 4 × Overall Diameter |
NF F 63-826
NF F 16-101
BS 6853
EN54454-2
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Number of Cores | Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Sheath Thickness | Overall Diameter | Weight | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| - | mm² | No/mm | mm | mm | mm | kg/km |
| 2 | 1.5 | 30/0.25 | 1.0 | 8.6 | 9.9 | 115 |
| 4 | 1.5 | 30/0.25 | 1.1 | 10.1 | 11.4 | 160 |
| 7 | 1.5 | 30/0.25 | 1.1 | 11.9 | 13.3 | 245 |
| 13 | 1.5 | 30/0.25 | 1.2 | 16.5 | 18.0 | 425 |
| 19 | 1.5 | 30/0.25 | 1.2 | 18.3 | 19.9 | 675 |
| 37 | 1.5 | 30/0.25 | 1.5 | 25.1 | 27.1 | 1170 |
| 2 | 2.5 | 50/0.25 | 1.1 | 10.0 | 11.3 | 185 |
| 4 | 2.5 | 50/0.25 | 1.2 | 11.7 | 13.1 | 275 |
| 13 | 2.5 | 50/0.25 | 1.4 | 19.5 | 21.1 | 750 |
| 19 | 2.5 | 50/0.25 | 1.4 | 21.6 | 23.4 | 980 |
