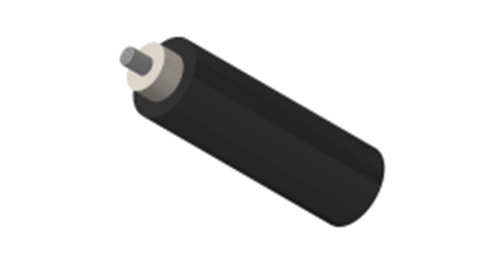

This series of cables is specifically designed for protective installation inside and outside rail transit vehicles, making them an ideal choice for power and control applications. They are particularly suitable for cost-effective scenarios, such as wiring in control cabinets, distribution panels, wire harnesses, and driver control panels—key components of the system. Whether for main circuits or auxiliary circuits, the BRAIL SW series cables provide reliable connections.

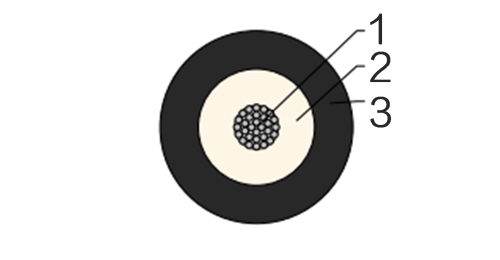

| Conductor | Stranded tinned copper wires to IEC 60228 Class 5 |
| Insulation | Halogen free compound |
| Sheath | Halogen free compound |
| Nominal Voltage | 1500V, 3000V |
| Max. Conductor Temperature | 90°C/105°C |
| Temperature Range | -25°C~90°C |
| Bending Radius | 4 × Overall Diameter |
NF F 63-826
NF F 16-101
BS 6853
EN54454-2
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter | Weight | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| mm² | No/mm | mm | mm | mm | mm | kg/km |
| 1.5 | 30/0.25 | 2.3 | 1.5 | 8.9 | 9.9 | 130 |
| 2.5 | 50/0.25 | 2.3 | 1.5 | 9.3 | 10.3 | 145 |
| 10.0 | 80/0.40 | 2.3 | 1.8 | 11.9 | 13.3 | 290 |
| 50.0 | 396/0.40 | 2.5 | 2.2 | 18.3 | 20.3 | 850 |
| 120.0 | 608/0.50 | 2.8 | 2.6 | 25.0 | 27.5 | 1770 |
| 150.0 | 756/0.50 | 2.8 | 2.6 | 26.7 | 29.3 | 2150 |
| 185.0 | 925/0.50 | 2.9 | 2.8 | 29.0 | 31.8 | 2530 |
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter | Weight | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| mm² | No/mm | mm | mm | mm | mm | kg/km |
| 150.0 | 756/0.50 | 3.6 | 2.6 | 28.2 | 30.9 | 2270 |
| 185.0 | 925/0.50 | 3.7 | 2.8 | 30.5 | 33.4 | 2660 |
