APPLICATION

This NF F 63-826 standard single-core, unscreened cable is specifically designed for internal and external applications in rail transit vehicles, making it an ideal choice for railway cables. Its superior electrical performance and flame-retardant properties make it the preferred option for wiring in rail vehicles.

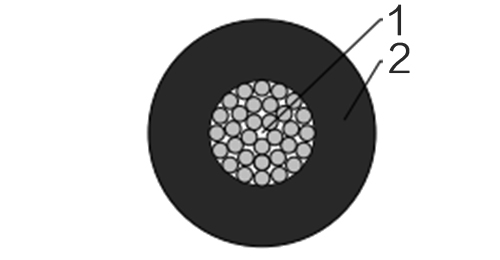

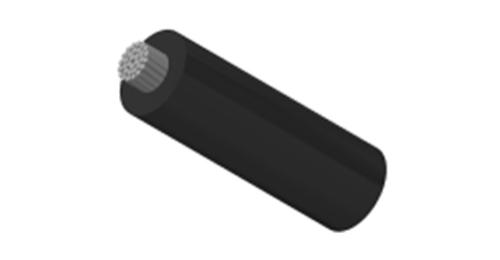

CONSTRUCTION

Conductor	Stranded tinned copper wires to IEC 60228 Class 5
Insulation	Special halogen free compound

ELECTRICAL & MECHANICAL PROPERTIES

Nominal Voltage	500V, 1000V, 1500V, 3000V
Max. Conductor Temperature	90°C/105°C
Temperature Range	-25°C~90°C
Bending Radius	4 × Overall Diameter

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

NF F 63-826

NF F 16-101

BS 6853

EN54454-2

FIRE PERFORMANCE IN GENERAL

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRF-SW-05SU 500 V

Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Min.	Max.	Weight
mm²	No/mm	mm	mm	mm	kg/km
1.0	32/0.20	1.3	3.8	4.5	26
1.5	30/0.25	1.3	4.1	4.8	33
2.5	50/0.25	1.3	4.5	5.2	43
4.0	56/0.30	1.3	5.0	5.8	59
6.0	84/0.30	1.4	5.7	6.5	82
10.0	80/0.40	1.5	6.9	8.1	135
16.0	126/0.40	1.5	8.2	9.2	210

FRF-SW-1SU 1000V

Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Min.	Max.	Weight
mm²	No/mm	mm	mm	mm	kg/km
1.5	30/0.25	1.5	4.4	5.2	42
2.5	50/0.25	1.5	4.8.	5.6	55
4.0	56/0.30	1.5	5.4	6.2	72
6.0	84/0.30	1.6	6.1	6.9	96
10.0	80/0.40	1.6	7.0	8.3	154
16.0	126/0.40	1.6	8.3	9.4	218
25.0	196/0.40	1.7	9.8	11.0	316
35.0	276/0.40	1.8	11.2	12.5	440
50.0	396/0.40	1.9	13.0	14.3	580
70.0	360/0.50	2.0	14.7	16.3	830
95.0	475/0.50	2.0	16.6	18.4	1040
120.0	608/0.50	2.1	18.6	20.5	1310

FRF-SW-1.5SU 1500V

Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Min.	Max.	Weight
mm²	No/mm	mm	mm	mm	kg/km
1.5	30/0.25	2.3	6.0	6.8	59
2.5	50/0.25	2.3	6.4	7.2	73
4.0	56/0.30	2.3	7.0	7.8	91
6.0	84/0.30	2.3	7.5	8.3	120
10.0	80/0.40	2.3	8.4	9.7	160
16.0	126/0.40	2.3	9.7	10.8	235
25.0	196/0.40	2.3	11.0	12.2	330
35.0	276/0.40	2.4	12.4	13.7	480
50.0	396/0.40	2.5	14.2	15.5	610
70.0	360/0.50	2.7	16.1	17.7	860
95.0	475/0.50	2.7	18.0	19.8	1070
120.0	608/0.50	2.8	20.0	21.9	1340
150.0	756/0.50	2.8	21.8	23.8	1620
185.0	925/0.50	2.9	23.7	25.9	1940
240.0	1221/0.50	3.1	26.6	29.1	2550
300.0	1525/0.50	3.45	29.4	31.9	2950

FRF-SW-3SU 3000V

Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Min.	Max.	Weight
mm²	No/mm	mm	mm	mm	kg/km
2.5	50/0.25	3.1	8.0	8.8	94
4.0	56/0.30	3.1	8.5	9.5	124
6.0	84/0.30	3.1	8.8	9.9	135
10.0	80/0.40	3.1	10.0	11.3	200
16.0	126/0.40	3.1	11.2	12.4	265
25.0	196/0.40	3.1	12.5	13.8	375
35.0	276/0.40	3.2	13.9	15.3	493
50.0	396/0.40	3.3	15.7	17.2	680
70.0	360/0.50	3.4	17.5	19.1	930
95.0	475/0.50	3.5	19.5	21.4	1066
120.0	608/0.50	3.6	21.6	23.5	1530
150.0	756/0.50	3.6	23.3	25.5	1740
185.0	925/0.50	3.7	25.2	27.6	2100
240.0	1221/0.50	3.9	28.1	31.7	2460
300.0	1525/0.50	4.45	31.4	35.0	3050
