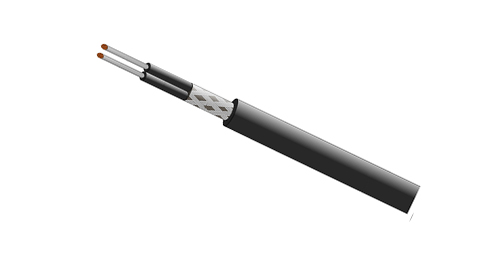

RS485 Data Bus Cable , designed for data transmission in railway vehicles. This series of cables features an impedance of 120 ohms, specifically engineered for high-speed and reliable data communication to meet the demanding requirements of railway applications. With its outstanding interference resistance, it ensures stable data transmission in complex electromagnetic environments, making it an ideal choice for building a reliable data network.
| Conductors | Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation | Cross linked Foam PE. |
| Cable Element | Twisted pair. |
| Individual Screen | Individual Aluminium Tape. |
| Overall Screen | Copper Wire Braid. |
| Core Wrapping | Plastic tape(s). |
| Outer Sheath | Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |

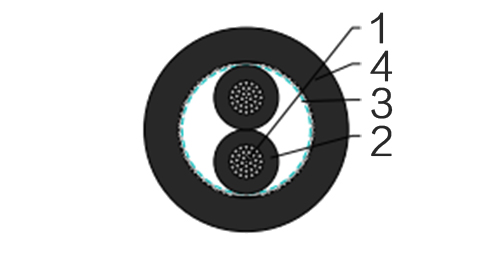

| Conductor | Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation | Cross linked Foam PE. |
| Cable Element | Twisted pair. |
| Overall Screen | Copper Wire Braid. |
| Outer Sheath | Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |
| Nominal Voltage | 300/500V |
| Impedance | 120Ω+/-15% |
| Capacitance@1KHz | 41nF/km |
| Insulation Resistance | 5000MΩ |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| No.of pair x | Nominal Cross Sectional Area y | Number & Nominal Diameter of Strands | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | |
| 1 | 0.22 | 7/0.2 | 4.5 | 58 |
| 2 | 0.22 | 7/0.2 | 6.2 | 79 |
| 4 | 0.22 | 7/0.2 | 6.5 | 118 |
| 1 | 0.5 | 16/0.2 | 6.6 | 79 |
| 2 | 0.5 | 16/0.2 | 9.0 | 105 |
| 4 | 0.5 | 16/0.2 | 9.8 | 145 |
| 1 | 0.75 | 24/0.2 | 9.5 | 115 |
| 2 | 0.75 | 24/0.2 | 10.3 | 135 |
| 4 | 0.75 | 24/0.2 | 11.6 | 182 |
| 1 | 1 | 30/0.2 | 11.5 | 125 |
| 2 | 1 | 30/0.2 | 12.5 | 150 |
| 4 | 1 | 30/0.2 | 13.5 | 180 |
| No.of pair x | Nominal Cross Sectional Area y | Number & Nominal Diameter of Strands | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | |
| 1 | 0.22 | 7/0.2 | 4.2 | 55 |
| 2 | 0.22 | 7/0.2 | 5.9 | 75 |
| 4 | 0.22 | 7/0.2 | 6.2 | 115 |
| 1 | 0.5 | 16/0.2 | 6.3 | 75 |
| 2 | 0.5 | 16/0.2 | 8.5 | 100 |
| 4 | 0.5 | 16/0.2 | 9.4 | 140 |
| 1 | 0.75 | 24/0.2 | 9.0 | 110 |
| 2 | 0.75 | 24/0.2 | 9.7 | 130 |
| 4 | 0.75 | 24/0.2 | 11.1 | 178 |
| 1 | 1 | 30/0.2 | 11.0 | 120 |
| 2 | 1 | 30/0.2 | 12.0 | 145 |
| 4 | 1 | 30/0.2 | 13.0 | 175 |
