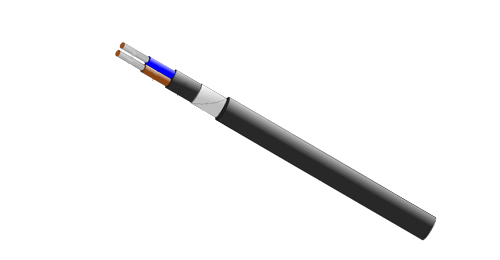

The U-1000 RVFV cable is an enhanced version of the U-1000 R2V series industrial cables. Achieving excellent mechanical strength through its double-layer protection design (robust sheath + metal armor), it can withstand soil pressure during underground installation, frictional wear from wall mounting, and complex environments in cable trays and raceways, meanwhile meeting safety standards for areas with potential explosion risks. It is a cost-effective choice that balances "durability", "scenario compatibility", and "safety compliance.
XP C 32-322

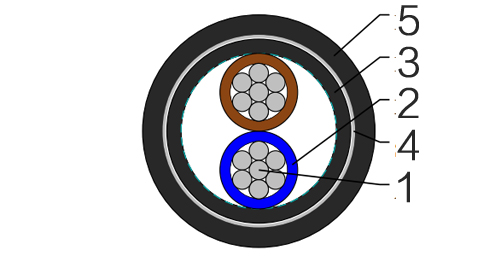

Flexible copper strands
Strands to IEC 60228 class 2
XLPE insulation according to XP C 32-321
Color codes to HD 308 S2(XP C32-321)
Not fibrous and not hygroscopic filler(only for multicore cables)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible black PVC outer jacket
Working Voltage : 600/1000 volts
Test voltage : 3500 volts
Minimum bending radius : 10 x Ø
Operation temperature rage : -15 °C to 90 °C
Short-circuit temperature : 250 °C
Flame retardant : EN 60332-1/NF C 32-070 C2
| AWG | Cross Section | Insulation Thickness | Amour Thickness | Minimum Sheath Thickness | Approx. Overall Diameter | Approx. Cable Weight |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km | |
| 16 | 2x1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
| 14 | 2x2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
| 12 | 2x4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
| 10 | 2x6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
| 8 | 2x10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
| 6 | 2x16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
| 4 | 2x25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
| 2 | 2x35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
| 16 | 3x1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
| 14 | 3x2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
| 12 | 3x4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
| 10 | 3x6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
| 8 | 3x10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
| 6 | 3x16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
| 4 | 3x25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
| 2 | 3x35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
| 1 | 3x50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
| 2/0 | 3x70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
| 3/0 | 3x95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
| 4/0 | 3x120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
| 300MCM | 3x150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
| 500MCM | 3x185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
| 750MCM | 3x240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
| - | 3x300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
| 1 | 3x50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
| 2/0 | 3x70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
| 3/0 | 3x95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
| 4/0 | 3x120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
| 300MCM | 3x150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
| 500MCM | 3x185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
| 750MCM | 3x240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
| 16 | 4x1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
| 14 | 4x2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
| 12 | 4x4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
| 10 | 4x6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
| 8 | 4x10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
| 6 | 4x16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
| 4 | 4x25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
| 2 | 4x35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
| 1 | 4x50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
| 2/0 | 4x70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
| 3/0 | 4x95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
| 4/0 | 4x120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
| 300MCM | 4x150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
| 500MCM | 4x185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
| 750MCM | 4x240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
| - | 4x300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
| 16 | 5x1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
| 14 | 5x2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
| 12 | 5x4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
| 10 | 5x6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
| 8 | 5x10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
| 6 | 5x16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
| 4 | 5x25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
| 16 | 7x1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
| 14 | 7x2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
| 16 | 12x1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
| 14 | 12x2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
| 16 | 19x1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
| 14 | 19x2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
| 16 | 24x1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
| 14 | 24x2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
| 16 | 27x1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
| 14 | 27x2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
| 16 | 37x1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
| 14 | 37x2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
