The U-1000 AR2V cable is a highly adaptable cable specifically engineered for low-voltage industrial power transmission. Boasting excellent weather resistance, safe flame-retardant properties, and flexible installation advantages, it has become the ideal choice for outdoor, underground, and complex industrial scenarios. Whether it is urban power grid renovation, power wiring in construction projects, or power transmission in factory parks, it can stably meet power demands and ensure long-term reliable operation.The U-1000 AR2V cable is a highly adaptable cable specifically engineered for low-voltage industrial power transmission. Boasting excellent weather resistance, safe flame-retardant properties, and flexible installation advantages, it has become the ideal choice for outdoor, underground, and complex industrial scenarios. Whether it is urban power grid renovation, power wiring in construction projects, or power transmission in factory parks, it can stably meet power demands and ensure long-term reliable operation.
XP C 32-321 (formerly NF C 32-321)
EN 60332-1/NF C 32-070 2.1 (C2)
EN 50575 (Eca)
CE Approval

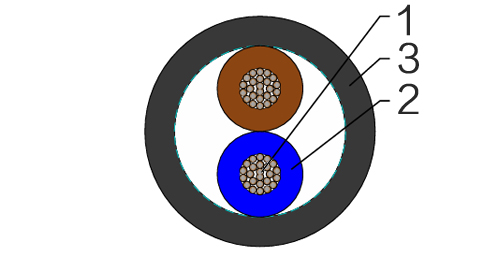

Flexible aluminum strands
Strands to IEC 60228 class 2
XLPE insulation according to XP C 32-321
Color codes to XP C32-321
Not fibrous and not hygroscopic filler (only for multicore cables)
Flexible black PVC outer jacket
Working Voltage : 600/1000 volts
Test voltage : 3500 volts
Minimum bending radius : 8 x Ø
Operation temperature range : -15 °C to 90 °C
Short-circuit temperature : 250 °C
Flame retardant : EN 60332-1/NF C 32-070 C2
| Conductor | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | ||
|---|---|---|---|---|---|---|
| No. of Cores x Cross Section | Class of Conductor | |||||
| No.xmm² | mm | mm | mm | kg/km | ||
| 1x35 | 2 | 0.9 | 1.4 | 13.5 | 190 | |
| 1x50 | 2 | 1.0 | 1.4 | 13.7 | 245 | |
| 1x70 | 2 | 1.1 | 1.4 | 15.8 | 325 | |
| 1x95 | 2 | 1.1 | 1.5 | 17.5 | 425 | |
| 1x120 | 2 | 1.2 | 1.5 | 19.3 | 520 | |
| 1x150 | 2 | 1.4 | 1.6 | 21.5 | 630 | |
| 1x185 | 2 | 1.6 | 1.6 | 24.7 | 780 | |
| 1x240 | 2 | 1.7 | 1.7 | 27.7 | 990 | |
| 1x300 | 2 | 1.8 | 1.8 | 30.6 | 1210 | |
| 1x400 | 2 | 2.0 | 1.9 | 34.2 | 1510 | |
| 1x500 | 2 | 2.2 | 2.0 | 38.0 | 1860 | |
| 1x630 | 2 | 2.4 | 2.2 | 42.9 | 2400 | |
| 2 Cores | ||||||
| 2x1.5 | 2 | 0.7 | 1.8 | 9.2 | 94 | |
| 2x2.5 | 2 | 0.7 | 1.8 | 10.0 | 110 | |
| 2x4.0 | 2 | 0.7 | 1.8 | 11.0 | 146 | |
| 2x6.0 | 2 | 0.7 | 1.8 | 12.0 | 172 | |
| 2x10 | 2 | 0.7 | 1.8 | 13.6 | 219 | |
| 2x16 | 2 | 0.7 | 1.8 | 15.4 | 279 | |
| 2x25 | 2 | 0.9 | 1.8 | 18.4 | 388 | |
| 2x35 | 2 | 0.9 | 1.8 | 20.6 | 475 | |
| 2x50 | 2 | 1.0 | 1.8 | 23.6 | 610 | |
| 2x70 | 2 | 1.1 | 1.9 | 26.8 | 796 | |
| 2x95 | 2 | 1.1 | 2.0 | 30.2 | 1055 | |
| 2x120 | 2 | 1.2 | 2.1 | 33.7 | 1267 | |
| 2x150 | 2 | 1.4 | 2.2 | 37.5 | 1538 | |
| 2x185 | 2 | 1.6 | 2.4 | 41.6 | 1911 | |
| 2x240 | 2 | 1.7 | 2.5 | 46.7 | 2423 | |
| 2x300 | 2 | 1.8 | 2.7 | 51.4 | 2992 | |
| 2x400 | 2 | 2.0 | 2.9 | 58.9 | 3739 | |
| 3 Cores | ||||||
| 3x1.5 | 2 | 0.7 | 1.8 | 9.6 | 112 | |
| 3x2.5 | 2 | 0.7 | 1.8 | 10.5 | 132 | |
| 3x4.0 | 2 | 0.7 | 1.8 | 11.6 | 180 | |
| 3x6.0 | 2 | 0.7 | 1.8 | 12.6 | 215 | |
| 3x10 | 2 | 0.7 | 1.8 | 14.4 | 279 | |
| 3x16 | 2 | 0.7 | 1.8 | 16.3 | 362 | |
| 3x25 | 2 | 0.9 | 1.8 | 19.5 | 513 | |
| 3x35 | 2 | 0.9 | 1.8 | 21.9 | 635 | |
| 3x50 | 2 | 1.0 | 1.8 | 25.1 | 825 | |
| 3x70 | 2 | 1.1 | 1.9 | 28.7 | 1086 | |
| 3x95 | 2 | 1.1 | 2.0 | 32.4 | 1468 | |
| 3x120 | 2 | 1.2 | 2.1 | 36.1 | 1768 | |
| 3x150 | 2 | 1.4 | 2.3 | 40.3 | 2151 | |
| 3x185 | 2 | 1.6 | 2.4 | 44.6 | 2674 | |
| 3x240 | 2 | 1.7 | 2.6 | 50.2 | 3434 | |
| 3x300 | 2 | 1.8 | 2.7 | 55.2 | 4211 | |
| 3x400 | 2 | 2.0 | 3.0 | 63.3 | 5307 | |
| 4 Cores | ||||||
| 4x1.5 | 2 | 0.7 | 1.8 | 10.4 | 132 | |
| 4x2.5 | 2 | 0.7 | 1.8 | 11.3 | 157 | |
| 4x4.0 | 2 | 0.7 | 1.8 | 12.5 | 217 | |
| 4x6.0 | 2 | 0.7 | 1.8 | 13.7 | 262 | |
| 4x10 | 2 | 0.7 | 1.8 | 15.7 | 343 | |
| 4x16 | 2 | 0.7 | 1.8 | 17.8 | 486 | |
| 4x25 | 2 | 0.9 | 1.8 | 21.5 | 646 | |
| 4x35 | 2 | 0.9 | 1.8 | 24.1 | 850 | |
| 4x50 | 2 | 1.0 | 1.8 | 27.8 | 1066 | |
| 4x70 | 2 | 1.1 | 2.0 | 32.0 | 1405 | |
| 4x95 | 2 | 1.1 | 2.1 | 36.1 | 1900 | |
| 4x120 | 2 | 1.2 | 2.3 | 40.2 | 2290 | |
| 4x150 | 2 | 1.4 | 2.4 | 44.9 | 2813 | |
| 4x185 | 2 | 1.6 | 2.6 | 49.8 | 3468 | |
| 4x240 | 2 | 1.7 | 2.8 | 56.0 | 4487 | |
| 4x300 | 2 | 1.8 | 3.0 | 61.7 | 5541 | |
| 4x400 | 2 | 2.0 | 3.2 | 70.7 | 6934 | |
| 5 Cores | ||||||
| 5x1.5 | 2 | 0.7 | 1.8 | 12.2 | 154 | |
| 5x2.5 | 2 | 0.7 | 1.8 | 12.8 | 186 | |
| 5x4.0 | 2 | 0.7 | 1.8 | 14.3 | 257 | |
| 5x6.0 | 2 | 0.7 | 1.8 | 15.8 | 311 | |
| 5x10 | 2 | 0.7 | 1.8 | 18.3 | 407 | |
| 5x16 | 2 | 0.7 | 1.8 | 21.2 | 610 | |
| 4x25+1x16 | 2 | 0.9 | 0.7 | 1.8 | 25.3 | 713 |
| 4x35+1x16 | 2 | 0.9 | 0.7 | 1.8 | 28.4 | 910 |
| 4x50+1x25 | 2 | 1.0 | 0.9 | 2.1 | 33.1 | 1151 |
| 4x70+1x16 | 2 | 1.1 | 0.9 | 2.2 | 38.7 | 1530 |
| 4x70+1x35 | 2 | 1.1 | 0.9 | 2.2 | 39.2 | 1600 |
| 4x95+1x50 | 2 | 1.1 | 1.0 | 2.4 | 44.3 | 2052 |
| 4x120+1x70 | 2 | 1.2 | 1.1 | 2.5 | 49.3 | 2505 |
| 4x150+1x70 | 2 | 1.4 | 1.1 | 2.7 | 54.3 | 3006 |
| 4x150+1x120 | 2 | 1.4 | 1.2 | 2.7 | 55.0 | 3207 |
| 4x185+1x95 | 2 | 1.6 | 1.1 | 2.9 | 61.0 | 3839 |
| 4x185+1x150 | 2 | 1.6 | 1.4 | 2.9 | 61.6 | 4092 |
| 4x240+1x25 | 2 | 1.7 | 0.9 | 3.1 | 68.6 | 4592 |
| 4x240+1x70 | 2 | 1.7 | 1.1 | 3.1 | 69.3 | 4713 |
| 5x95 | 2 | 1.1 | 2.4 | 44.8 | 2330 | |
| 5x120 | 2 | 1.2 | 2.5 | 49.8 | 2719 | |
| 5x150 | 2 | 1.4 | 2.7 | 55.5 | 3340 | |
| 5x185 | 2 | 1.6 | 2.9 | 62.1 | 4262 | |
| 5x240 | 2 | 1.7 | 3.1 | 70.1 | 5540 | |
| Multicores | ||||||
| 7x1.5 | 2 | 0.7 | 1.8 | 13.2 | 189 | |
| 10x1.5 | 2 | 0.7 | 1.8 | 16.4 | 257 | |
| 12x1.5 | 2 | 0.7 | 1.8 | 16.9 | 288 | |
| 7x2.5 | 2 | 0.7 | 1.8 | 14.4 | 230 | |
| 10x2.5 | 2 | 0.7 | 1.8 | 18.0 | 313 | |
| 12x2.5 | 2 | 0.7 | 1.8 | 18.6 | 353 | |
