U-1000 R2V

APPLICATION AND DESCRIPTIONAs an industrial-grade low-voltage power cable compliant with French standard (NF C 33-209), U-1000 R2V, with its features of high temperature resistance, anti-aging, and all-scenario installation, has become the preferred c…

73 U-1000 R2V.pdf Contact us

Previous: H01N2-D/E (NSKFFÖU)Next: U-1000 AR2V

APPLICATION AND DESCRIPTION

As an industrial-grade low-voltage power cable compliant with French standard (NF C 33-209), U-1000 R2V, with its features of high temperature resistance, anti-aging, and all-scenario installation, has become the preferred cable for urban power grid renovation, electrical installation of large buildings, high-temperature workshops, and outdoor projects, addressing the challenges of power transmission stability and environmental adaptability in industrial scenarios.As an industrial-grade low-voltage power cable compliant with French standard (NF C 33-209), U-1000 R2V,凭借 its features of high temperature resistance, anti-aging, and all-scenario installation, has become the preferred cable for urban power grid renovation, electrical installation of large buildings, high-temperature workshops, and outdoor projects, addressing the challenges of power transmission stability and environmental adaptability in industrial scenarios.

STANDARD AND APPROVAL

XP C 32-321 (formerly NF C 32-321)

EN 60332-1/NF C 32-070 2.1 (C2)

EN 50575 (Eca)

CE Approval

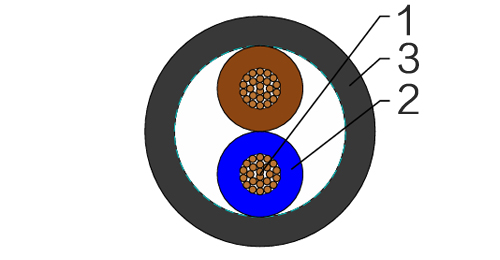

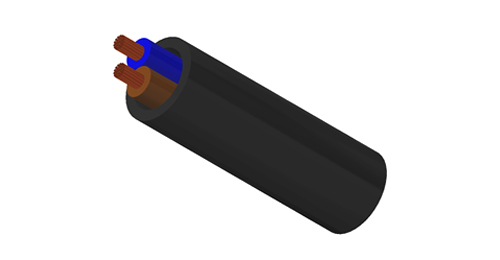

CABLE CONSTRUCTION

Flexible electrolytic annealed copper strands

Strands to IEC 60228 class 2

XLPE insulation according to XP C 32-321

Color codes to XP C32-321

Not fibrous and not hygroscopic filler (only for multicore cables)

Flexible black PVC outer jacket

TECHNICAL CHARACTERISTICS

Working Voltage : 600/1000 volts

Test voltage : 3500 volts

Minimum bending radius : 8 x Ø

Operation temperature range : -15 °C to 90 °C

Short-circuit temperature : 250 °C

Flame retardant : EN 60332-1/NF C 32-070 C2

CABLE PARAMETER

Conductor		Nominal Insulation Thickness		Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
No. of Cores x Cross Section	Class of Conductor	Nominal Insulation Thickness		Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
No.xmm²		mm		mm	mm	kg/km
1x1.5	2	0.7		1.4	6.1	36
1x2.5	2	0.7		1.4	6.8	52
1x4.0	2	0.7		1.4	7.4	76
1x6.0	2	0.7		1.4	8.2	100
1x10	2	0.7		1.4	9.2	160
1x16	2	0.7		1.4	10.7	230
1x25	2	0.9		1.4	12.5	340
1x35	2	0.9		1.4	13.5	440
1x50	2	1.0		1.4	13.7	541
1x70	2	1.1		1.4	15.8	749
1x95	2	1.1		1.5	17.5	1000
1x120	2	1.2		1.5	19.3	1241
1x150	2	1.4		1.6	21.5	1523
1x185	2	1.6		1.6	24.7	1942
1x240	2	1.7		1.7	27.7	2514
1x300	2	1.8		1.8	30.6	3125
1x400	2	2.0		1.9	34.2	3967
1x500	2	2.2		2.0	38.0	5063
1x630	2	2.4		2.2	42.9	6491
2 Cores
2x1.5	2	0.7		1.8	9.2	109
2x2.5	2	0.7		1.8	10.0	138
2x4.0	2	0.7		1.8	11.0	182
2x6.0	2	0.7		1.8	12.0	234
2x10	2	0.7		1.8	13.6	333
2x16	2	0.7		1.8	15.4	468
2x25	2	0.9		1.8	18.4	686
2x35	2	0.9		1.8	20.6	926
2x50	2	1.0		1.8	23.6	1269
2x70	2	1.1		1.8	26.8	1699
2x95	2	1.1		1.9	30.2	2269
2x120	2	1.2		2.0	33.7	2853
2x150	2	1.4		2.2	37.5	3539
2x185	2	1.6		2.3	41.6	4329
2x240	2	1.7		2.5	46.7	5607
2x300	2	1.8		2.6	51.4	6892
2x400	2	2.0		2.9	58.9	9202
3 Cores
3x1.5	2	0.7		1.8	9.6	133
3x2.5	2	0.7		1.8	10.5	174
3x4.0	2	0.7		1.8	11.6	236
3x6.0	2	0.7		1.8	12.6	310
3x10	2	0.7		1.8	14.4	452
3x16	2	0.7		1.8	16.3	648
3x25	2	0.9		1.8	19.5	963
3x35	2	0.9		1.8	21.9	1315
3x50	2	1.0		1.8	25.1	1818
3x70	2	1.1		1.9	28.7	2451
3x95	2	1.1		2.0	32.4	3287
3x120	2	1.2		2.1	36.1	4142
3x150	2	1.4		2.3	40.3	5140
3x185	2	1.6		2.4	44.6	6298
3x240	2	1.7		2.6	50.2	8170
3x300	2	1.8		2.7	55.2	10063
3x400	2	2.0		3.0	63.3	13451
3 Cores+1 Earth Conductor
		power conductor	earth conductor
3x16/10	2	0.7	0.7	1.8	17.5	793
3x25/16	2	0.9	0.7	1.8	21.2	1070
3x35/16	2	0.9	0.7	1.8	23.8	1349
3x50/25	2	1.0	0.9	1.8	27.5	1890
3x70/35	2	1.1	0.9	2.0	31.7	2660
3x95/50	2	1.1	1.0	2.1	35.8	3650
3x120/70	2	1.2	1.1	2.3	39.9	4610
3x150/70	2	1.4	1.1	2.4	44.6	5450
3x185/95	2	1.6	1.1	2.6	49.5	6680
3x240/120	2	1.7	1.2	2.8	55.7	8690
3x300/150	2	1.8	1.4	3.0	61.4	11170
3x400/185	2	1.8	1.6	3.2	70.4	11480
4 Cores
4x1.5	2	0.7		1.8	10.4	169
4x2.5	2	0.7		1.8	11.3	220
4x4.0	2	0.7		1.8	12.5	297
4x6.0	2	0.7		1.8	13.7	392
4x10	2	0.7		1.8	15.7	585
4x16	2	0.7		1.8	17.8	851
4x25	2	0.9		1.8	21.5	1200
4x35	2	0.9		1.8	24.1	1600
4x50	2	1.0		1.8	27.8	2200
4x70	2	1.1		2.0	32.0	3050
4x95	2	1.1		2.1	36.1	4070
4x120	2	1.2		2.3	40.2	5915
4x150	2	1.4		2.4	44.9	6350
4x185	2	1.6		2.6	49.8	7890
4x240	2	1.7		2.8	56.0	10400
4x300	2	1.8		3.0	61.7	12810
4x400	2	2.0		3.2	70.7	15869
5 Cores
5x1.5	2	0.7		1.8	11.6	205
5x2.5	2	0.7		1.8	12.8	265
5x4.0	2	0.7		1.8	14.3	360
5x6.0	2	0.7		1.8	15.8	478
5x10	2	0.7		1.8	18.3	720
5x16	2	0.7		1.8	21.2	1059
4x25+1x16	2	0.9	0.7	1.8	25.3	1550
4x35+1x16	2	0.9	0.7	1.8	28.4	1991
4x50+1x25	2	1.0	0.9	2.1	33.1	2634
4x70+1x16	2	1.1	0.9	2.2	38.7	3560
5x70	2	1.1		2.2	39.2	4130
5x95	2	1.1		2.4	44.8	5618
5x120	2	1.2		2.5	49.8	7039
5x150	2	1.4		2.7	55.5	8655
5x185	2	1.6		2.9	62.1	10833
5x240	2	1.7		3.1	70.1	14091
7 Cores
7x1.5	2	0.7		1.8	12.4	225
7x2.5	2	0.7		1.8	13.8	303
7x4.0	2	0.7		1.8	15.5	422
10 Cores
10x1.5	2	0.7		1.8	15.6	325
10x2.5	2	0.7		1.8	17.5	426
10x4.0	2	0.7		1.8	19.7	597
12 Cores
12x1.5	2	0.7		1.8	16.2	370
12x2.5	2	0.7		1.8	18.1	489
12x4.0	2	0.7		1.8	20.3	690
19 Cores
19x1.5	2	0.7		1.8	19.0	516
19x2.5	2	0.7		1.8	21.3	725
19x4.0	2	0.7		1.8	24.0	1037
27 Cores
27x1.5	2	0.7		1.8	22.7	712
27x2.5	2	0.7		1.8	25.5	1004
27x4.0	2	0.7		1.8	28.8	1445
