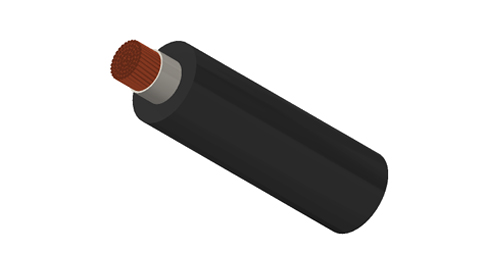

H01N2-D/E (NSKFFÖU) Welding Cable — From automobile production lines to ship decks, and from precision tool welding to outdoor engineering operations, with "stable transmission + scenario adaptability" at its core, it provides reliable power connection solutions for welding scenarios across various industries.
CEI 20-22 II, CEI 20-38, HD22.6 S2, IEC 60332.3, IEC 60754.1
CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant
Technical Characteristics

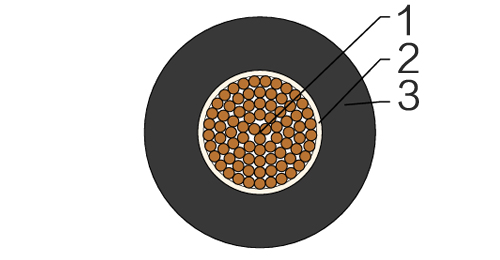

| Extra fine bare copper strands |
| Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383 |
| Strands to VDE-0295 as listed below |
| Synthetic or paper separator over core |
| Polychloroprene rubber (neoprene) jacket EM5 |
| Working voltage | 100/100 volts |
| Test voltage | 1000 volts |
| Flexing bending radius | 12.0 x O |
| Fixed bending radius | 7.5 x O |
| Flexing Temperature | -25oC to +80oC |
| Fixed Temperature | -40oC to +80oC |
| Flame retardant | IEC 60332.1 |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 8(320/32) | 1 x 10 | 2.0 | 7.7-9.7 | 96 | 135 |
| 6(512/32) | 1 x 16 | 2.0 | 8.8-11.0 | 154 | 205 |
| 4(800/32) | 1 x 25 | 2.0 | 10.1-12.7 | 240 | 302 |
| 2(1120/32) | 1 x 35 | 2.0 | 11.4-14.2 | 336 | 420 |
| 1(1600/32) | 1 x 50 | 2.2 | 13.2-16.5 | 480 | 586 |
| 2/0(2240/32) | 1 x 70 | 2.4 | 15.3-19.2 | 672 | 798 |
| 3/0(3024/32) | 1 x 95 | 2.6 | 17.1-21.4 | 912 | 1015 |
| 4/0(614/24) | 1 x 120 | 2.8 | 19.2-24.0 | 1152 | 1310 |
| 300MCM(765/24) | 1 x 150 | 3.0 | 21.2-26.4 | 1440 | 1620 |
| 350MCM(944/24) | 1 x 185 | 3.2 | 23.1-28.9 | 1776 | 1916 |
| 500MCM(1225/24) | 1 x 240 | 3.4 | 25.0-29.5 | 2304 | 2540 |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 8(566/35) | 1 x 10 | 1.2 | 6.2-7.8 | 96 | 119 |
| 6(903/35) | 1 x 16 | 1.2 | 7.3-9.1 | 154 | 181 |
| 4(1407/35) | 1 x 25 | 1.2 | 8.6-10.8 | 240 | 270 |
| 2(1974/35) | 1 x 35 | 1.2 | 9.8-12.3 | 336 | 363 |
| 1(2830/35) | 1 x 50 | 1.5 | 11.9-14.8 | 480 | 528 |
| 2/0(3952/35) | 1 x 70 | 1.8 | 13.6-17.0 | 672 | 716 |
| 3/0(5370/35) | 1 x 95 | 1.8 | 15.6-19.5 | 912 | 1012 |
| 4/0(3819/32) | 1 x 120 | 1.8 | 17.2-21.6 | 1152 | 1190 |
| 300MCM(4788/32) | 1 x 150 | 1.8 | 18.8-23.5 | 1440 | 1305 |
| 500MCM(5852/32) | 1 x 185 | 1.8 | 20.4-25.5 | 1776 | 1511 |
