The cables are used as railway cables and can be installed directly into the ground or in ducts.
RENFE E.T. 03.365.051.6

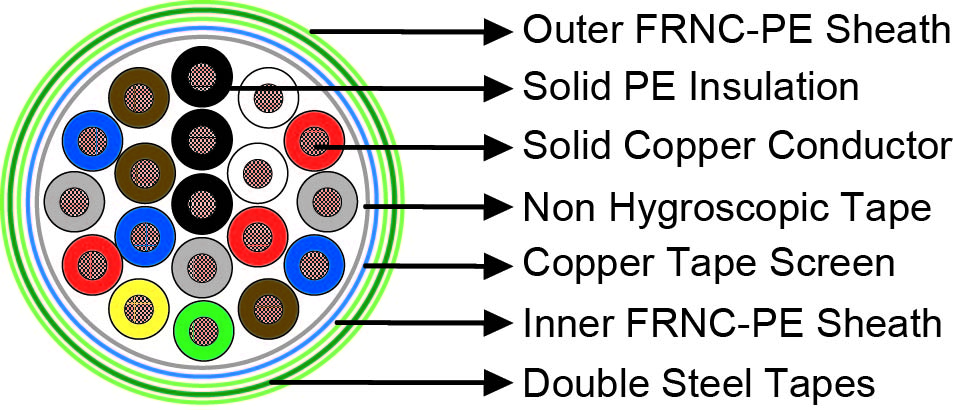

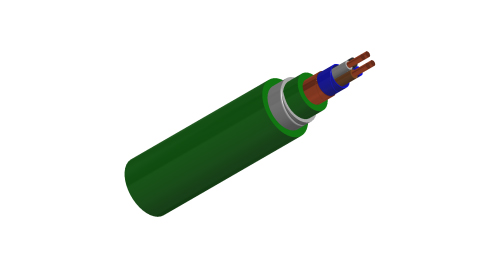

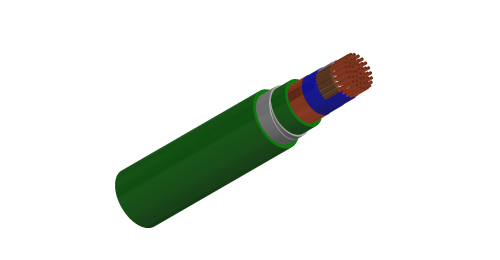

Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
Insulation: PE insulation.
Stranding: Cores are helically stranded in concentric layers.
Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
Screen: Copper tapes with overlap (protection against interference).
Inner Sheath: FRNC-PE sheath, coloured green.
Armour: Two layers of steel tape (0.8mm thick).
Outer Sheath: FRNC-PE sheath, coloured green.
| Nominal Conductor Diameter | mm | 1.4 |
| Maximum Conductor Resistance | Ω/km | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 35000 |
| Resistance Unbalance | % | 2 |
| Test Voltage @50Hz 1min | ||
| Core to Core | Veff | 2100 |
| Core to Screen | Veff | 2500 |
| Reduction Factor @100V/km 50Hz | 0.3 |
Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
| Cable Code | Number of Cores | Nominal Sheath Thickness mm | Maximum Overall Diameter mm | Nominal Weight kg/km | |
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.6mm Insulated Wire | |||||
| BRAIL CCTSST-FR0.3-2Y(K)HBH-4C1.4 | 4 | 1.5 | 1.6 | 18.0 | 705 |
| BRAIL CCTSST-FR0.3-2Y(K)HBH-19C1.4 | 19 | 1.6 | 1.8 | 26.1 | 1362 |
| BRAIL CCTSST-FR0.3-2Y(K)HBH-27C1.4 | 27 | 1.6 | 1.8 | 29.2 | 1648 |
| BRAIL CCTSST-FR0.3-2Y(K)HBH-48C1.4 | 48 | 1.7 | 1.8 | 36.7 | 2348 |
